Service Manual N73-1 RM-133 / N73-5 RM-133
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(36)

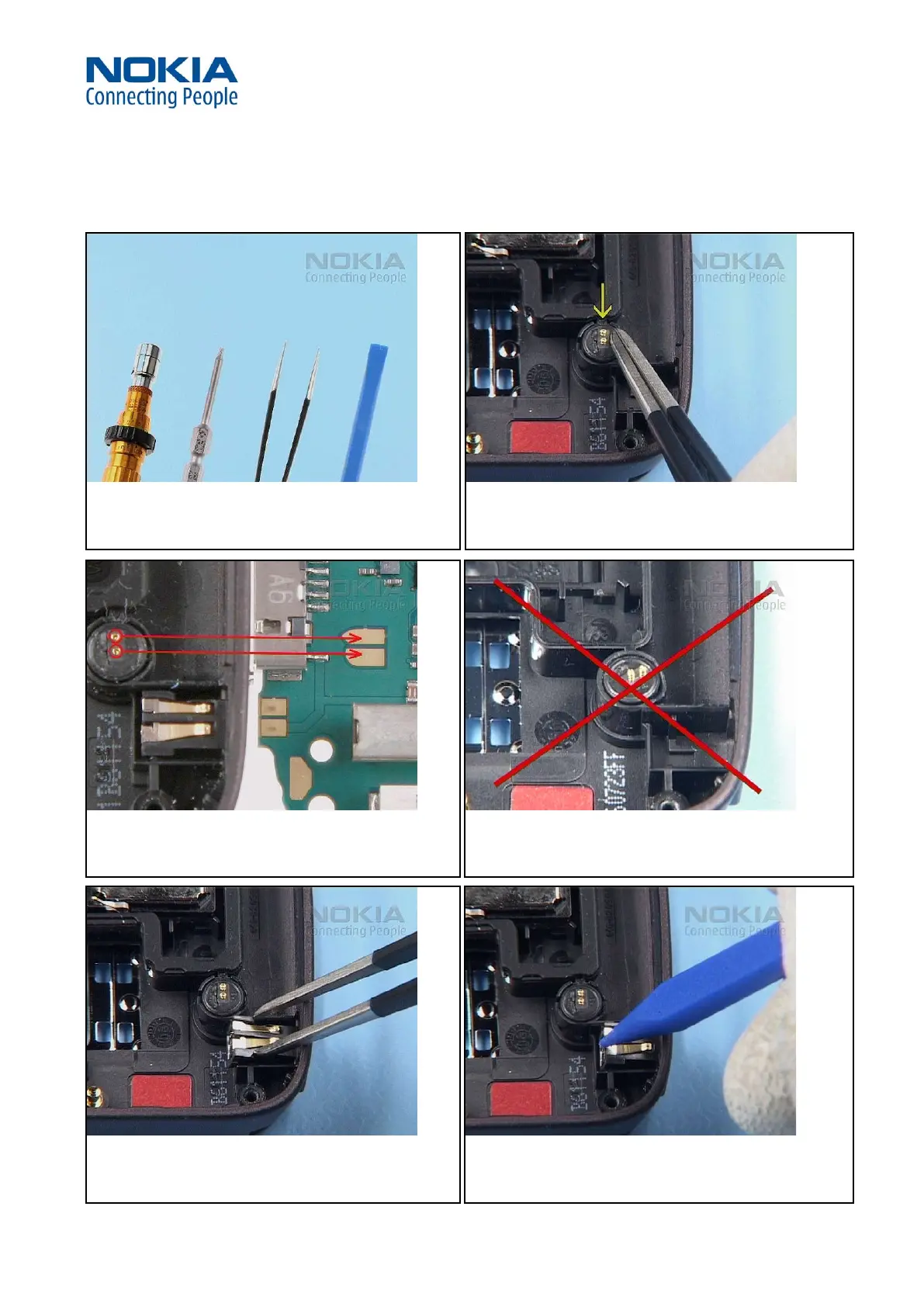

ASSEMBLY INSTRUCTION10.
1. Needed tools: a Torque driver, a Torx size 6 plus bit, metal
tweezers and the SS-93 opening tool.
2. Insert the MICROPHONE exactly as shown, avoid bending the
spring contacts.
3. Take a special attention to the right position of the spring
contacts
4. to avoid short-circuit or malfunction of the MICROPHONE..
5. Place the DC-JACK with tweezers into its housing ...
6. and push it carefully into place with the SS-93. Do not bend
the spring contacts.
