Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
25 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

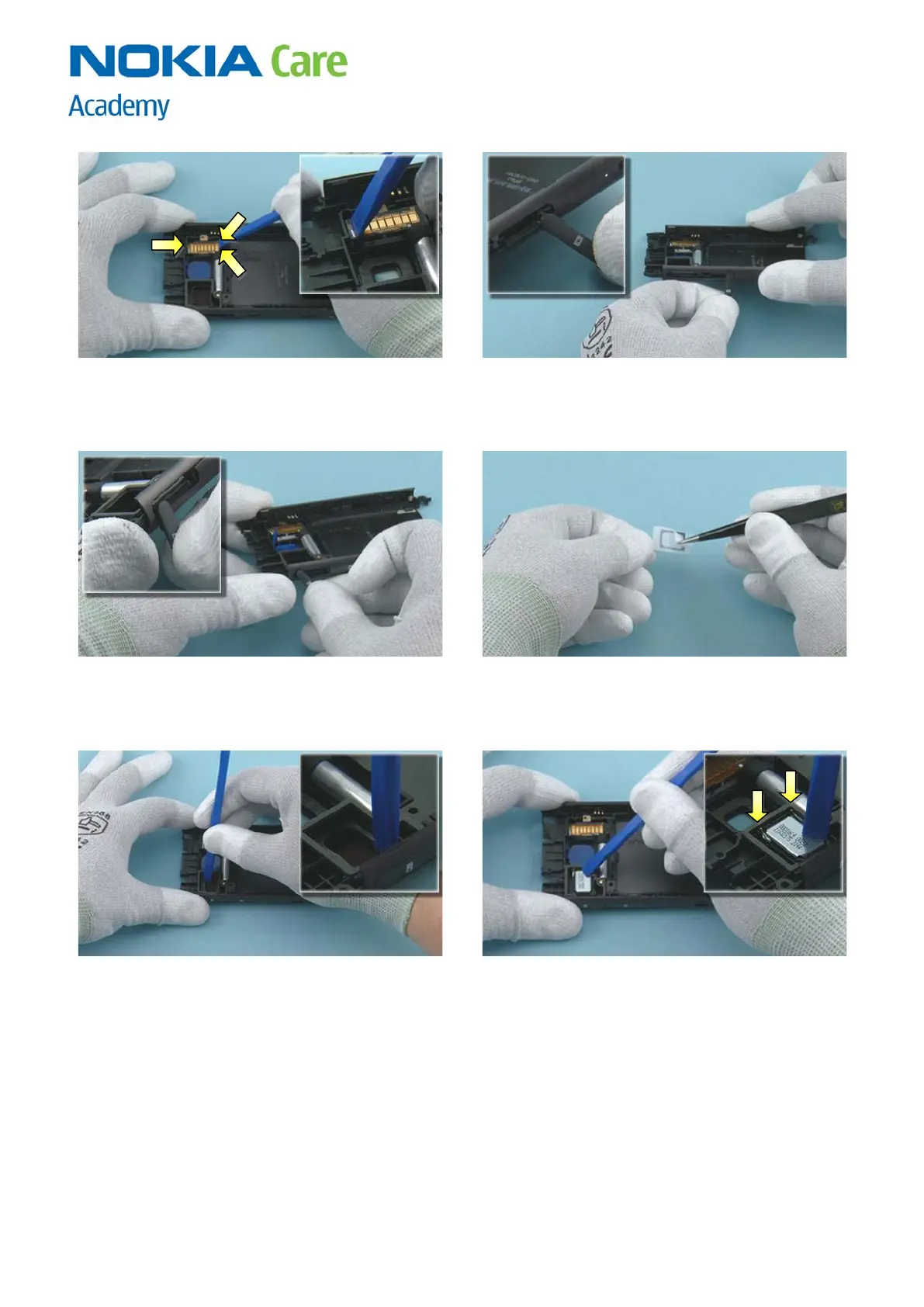

13) Push down the FLASH MODULE with the SS-93 to
attach the three clips.
14) Insert the SIM CARD HATCH fastener into the BODY
ASSY cavity. Then press the SIM CARD HATCH into
place.
15) Insert the MICRO SD CARD HATCH by using the
same procedure as with the SIM CARD HATCH.
16) Remove the IHF GASKET protective film.
17) Place the IHF GASKET with the tweezers. Press it
down carefully with the SS-93 to activate the
adhesive.
18) Place the IHF SPEAKER. Make sure that the IHF
SPEAKER springs point towards the FLASH MODULE.
Press the speaker with the SS-93 to activate the
adhesive.
