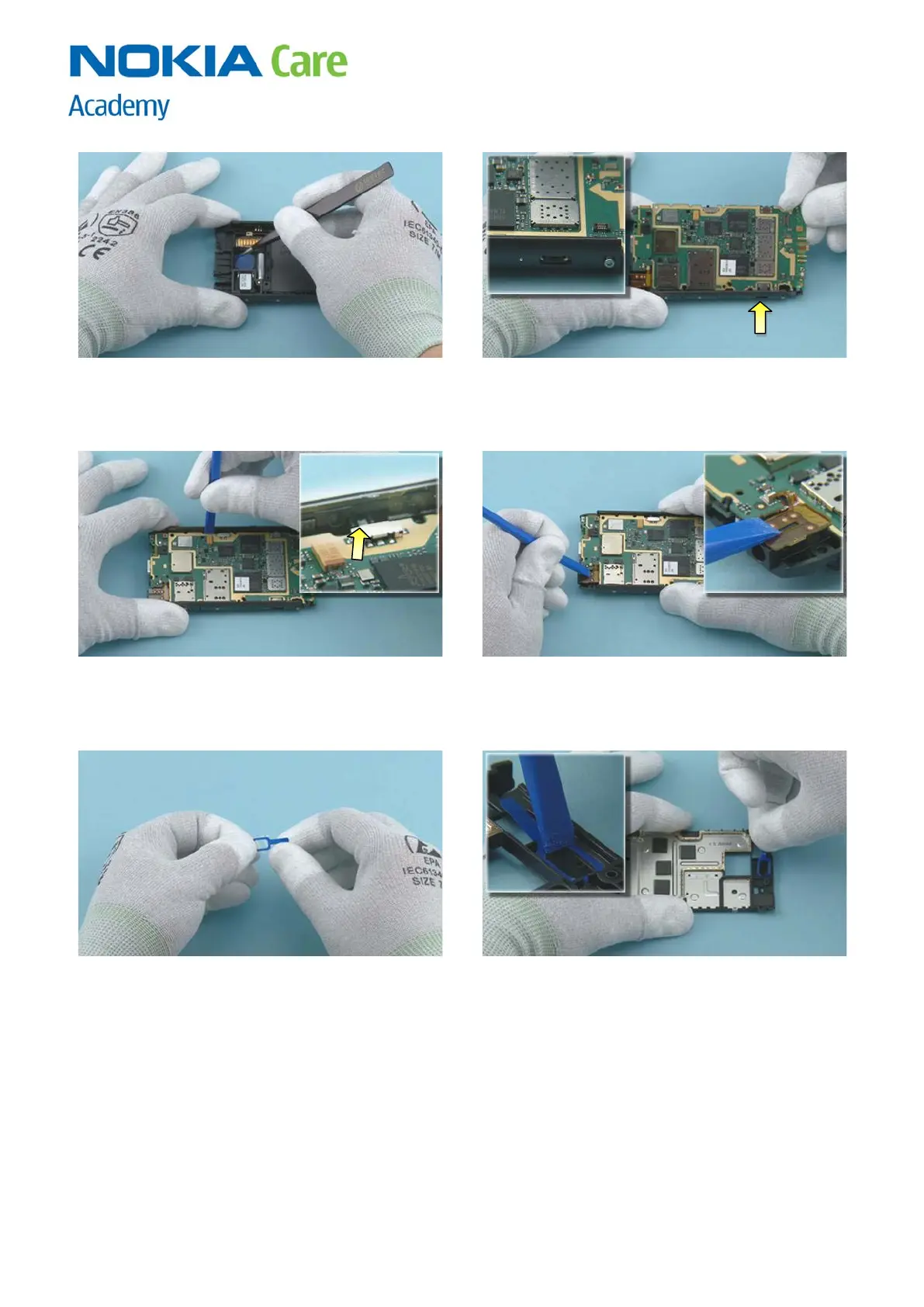

19) Remove the camera lens protective film with the
tweezers.
20) To insert the ENGINE BOARD to the BODY ASSY,
first insert the side where the USB CONNECTOR is
located.
21) Lower down the other side of the ENGINE BOARD.
Make sure the LOCK KEY is placed as shown in the
small picture.
22) Press the AV CONNECTOR with the SS-93 until it
snaps into place.
23) Remove the EARPIECE ADHESIVE protective film. 24) Place the EARPIECE ADHESIVE and activate the
adhesive by carefully pressing down on it with the
SS-93. Remove the blue EARPIECE ADHESIVE
protective film.
