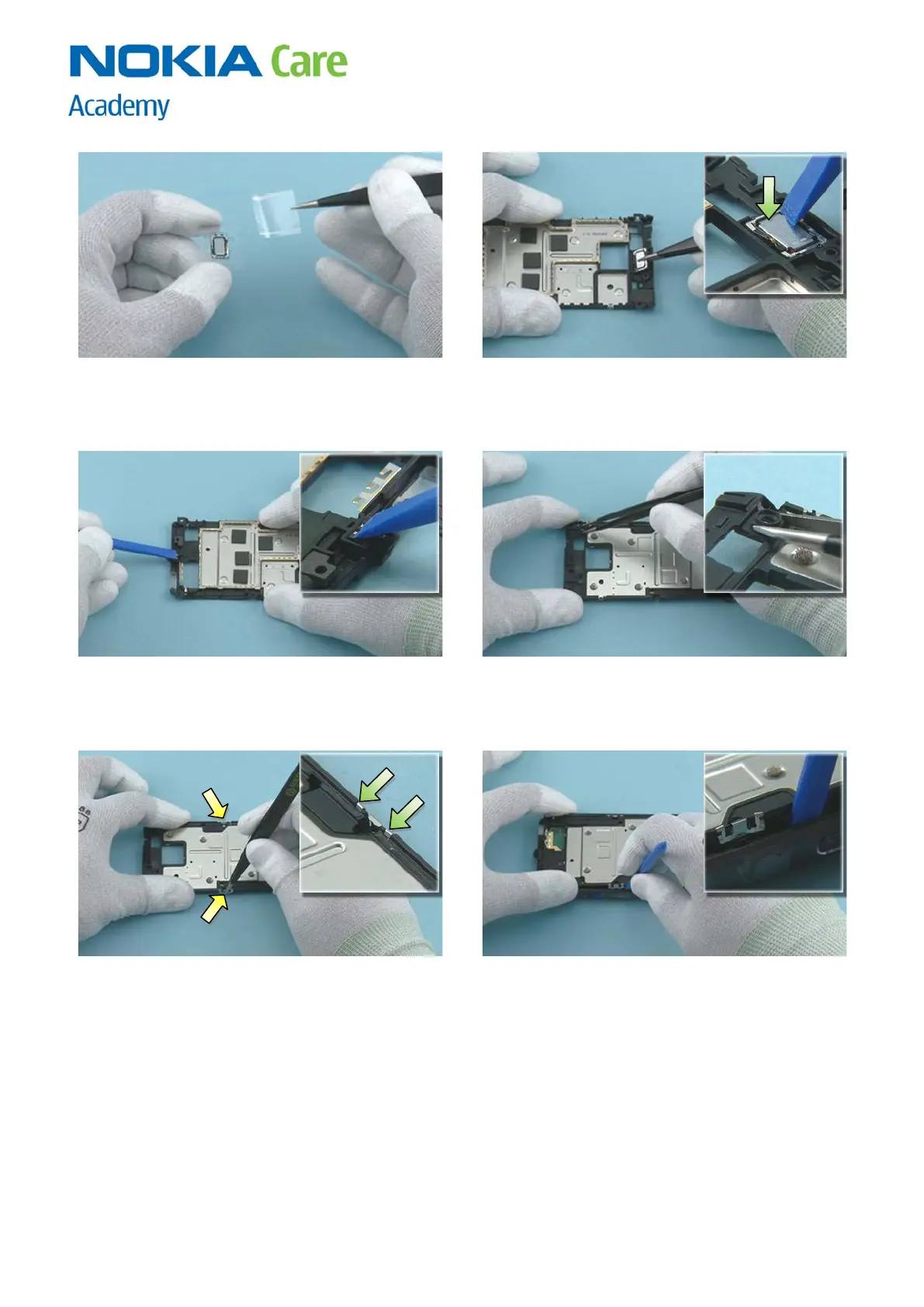

25) Remove the new EARPIECE from the protective
film.
26) Place the EARPIECE and press it with the SS-93 to
activate the adhesive.
27) Insert the DC JACK with the tweezers and firmly
press down on it with the SS-93 until it moves into
its socket.
28) Place the FRONT CAMERA BOOT ASSY.
29) When placing the two WINDOW FRAME FIXING
SPRINGS, press down on the shown places to get the
springs correctly in their place.
30) Use the SS-93 to spread the sides of the BODY
ASSY and push down the ENGINE CHASSIS ASSY to lock
the springs.
