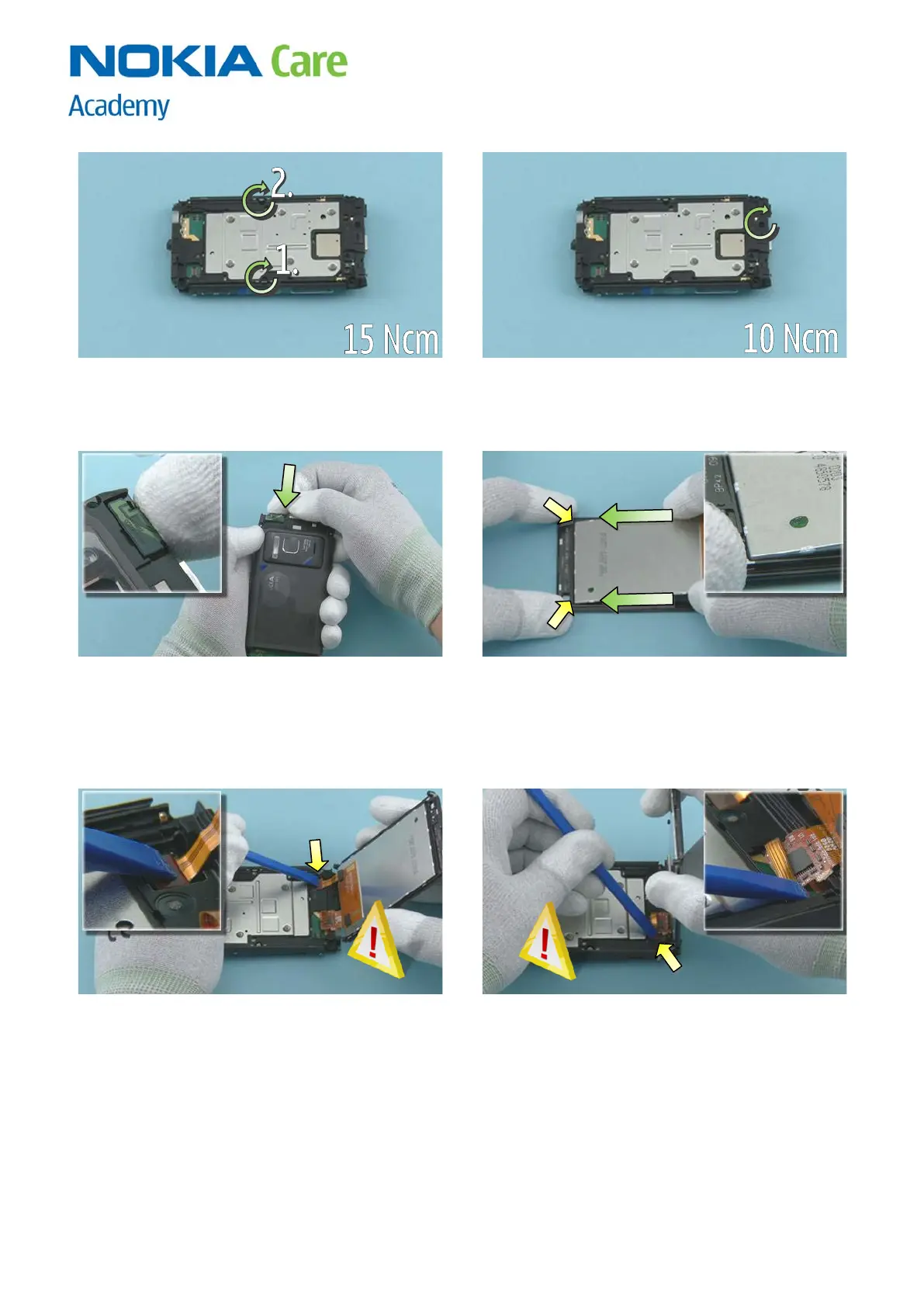

31) Tighten the two TORX + size 6 screws to the
torque of 15 Ncm in the order shown.
32) Tighten the TORX + size 6 screw to the torque of
10 Ncm.
33) Push the COMBO ANTENNA into place. 34) Remove the display protective film and lower
down the other end of the DISPLAY. Align the
DISPLAY to the WINDOW ASSY according to the small
edge on the WINDOW ASSY. Press and slide fingers
along the sides of the DISPLAY to activate the
adhesive.
35) Hold the WINDOW ASSY as shown. Connect the
DISPLAY CONNECTOR by pressing down on it carefully
with the SS-93. Be careful not to damage the
connector or components nearby!
36) Connect the WINDOW ASSY CONNECTOR by
carefully pressing it down with the SS-93. Be careful
not to damage the connector or components nearby!
