Nokia N8–00

Nokia N8-
00
RM-596
Service Manual Level 1&2
29 Confidential | Copyright © 2010 Nokia | All rights reserved Version 3.0

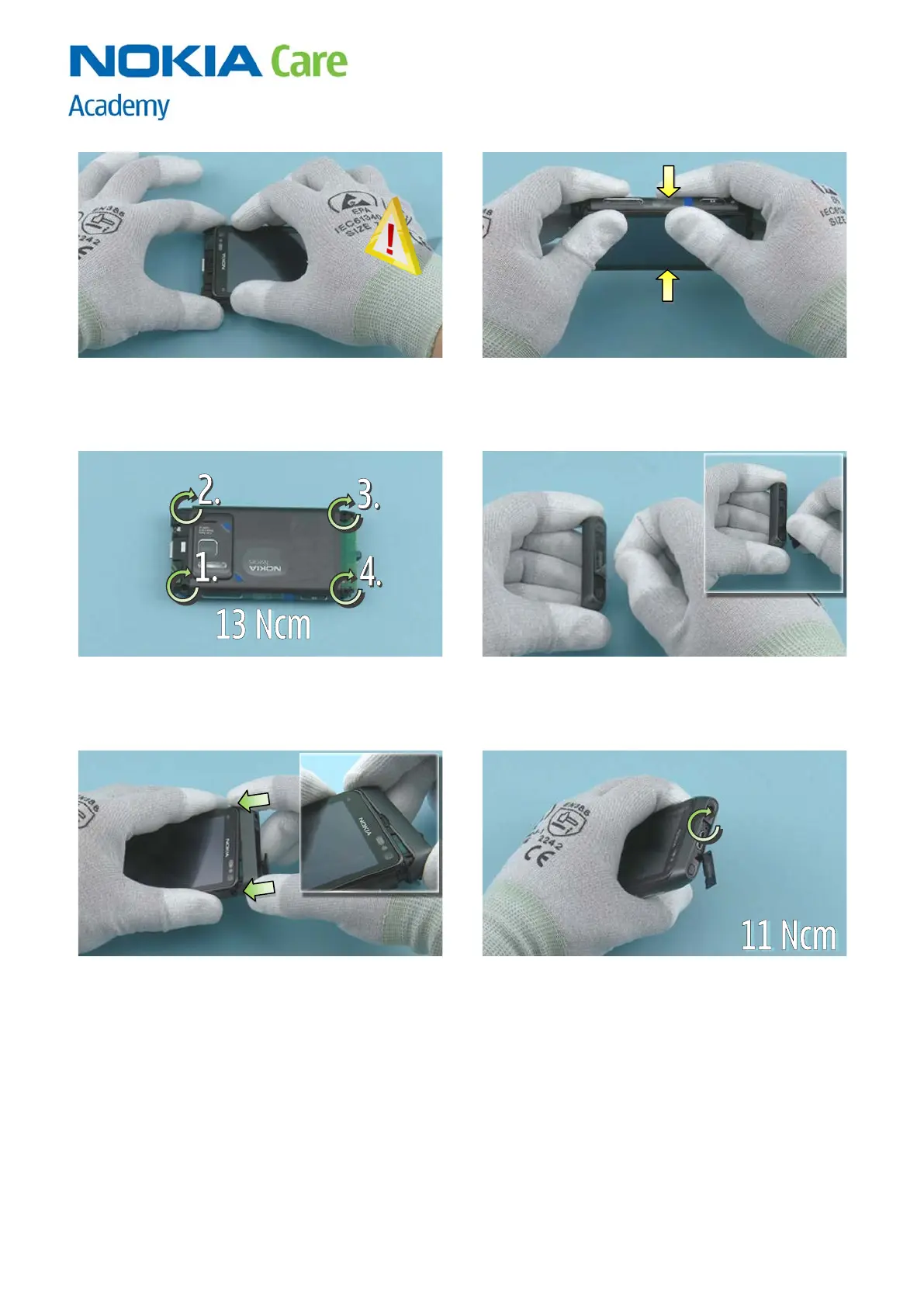

37) Carefully place down the WINDOW ASSY. Make
sure that the connectors remain connected!
38) Press the WINDOW ASSY from both sides to get
the WINDOW FRAME FIXING SPRINGS locked.
39) Tighten the four TORX + size 4 screws to the
torque of 13 Ncm in the order shown.
40) Remove the protective film from the TOP COVER
and open the HDMI HATCH.
41) Push the TOP COVER into its place. Make sure that
the TOP COVER is in its place by firmly pressing on
both corners of the TOP COVER.
42) Tighten the TORX + size 5 screw to the torque of
11 Ncm.
