Nokia N9 (RM-696)
L1L2 Service Manual
18
Co nf id e nt ial | Cop yright © 2011 Nokia | A ll rights reserved
V e rs io n 5 .0

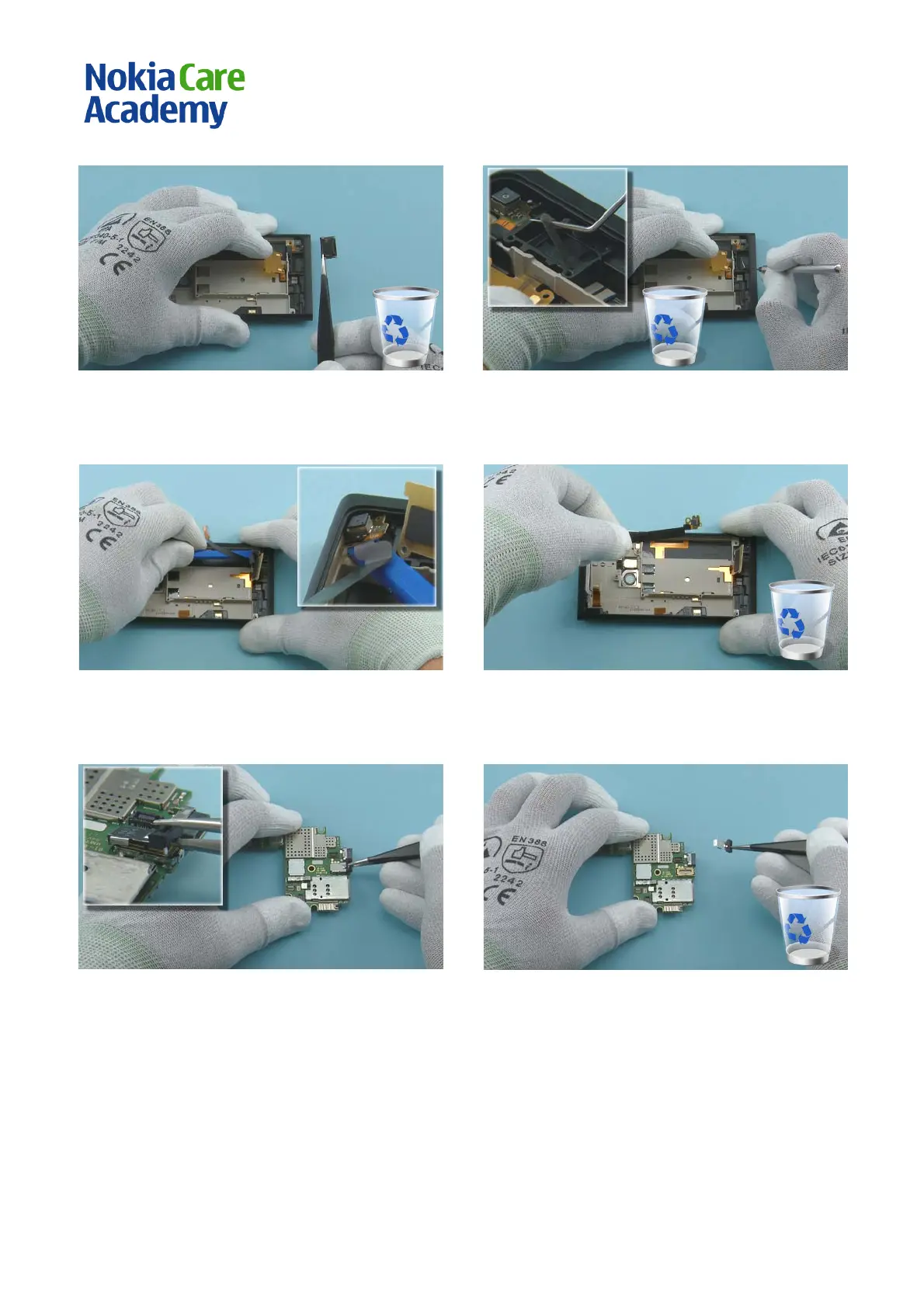

37) Remove the IHF SPEAKER with the tweezers. Do
not use it again. Discard it.
38) Remove the SPEAKER GASKET with the dental
tool. Do not use it again. Discard it.
39) Use the SS-93 to release the FRONT CAMERA FLEX.
40) Remove the FRONT CAMERA FLEX. Do not use it
again. Discard it.
41) Insert the tweezers to the EARPIECE BOOT as
shown.
42) Remove the EARPIECE BOOT. Do not use it again.
Discard it.
