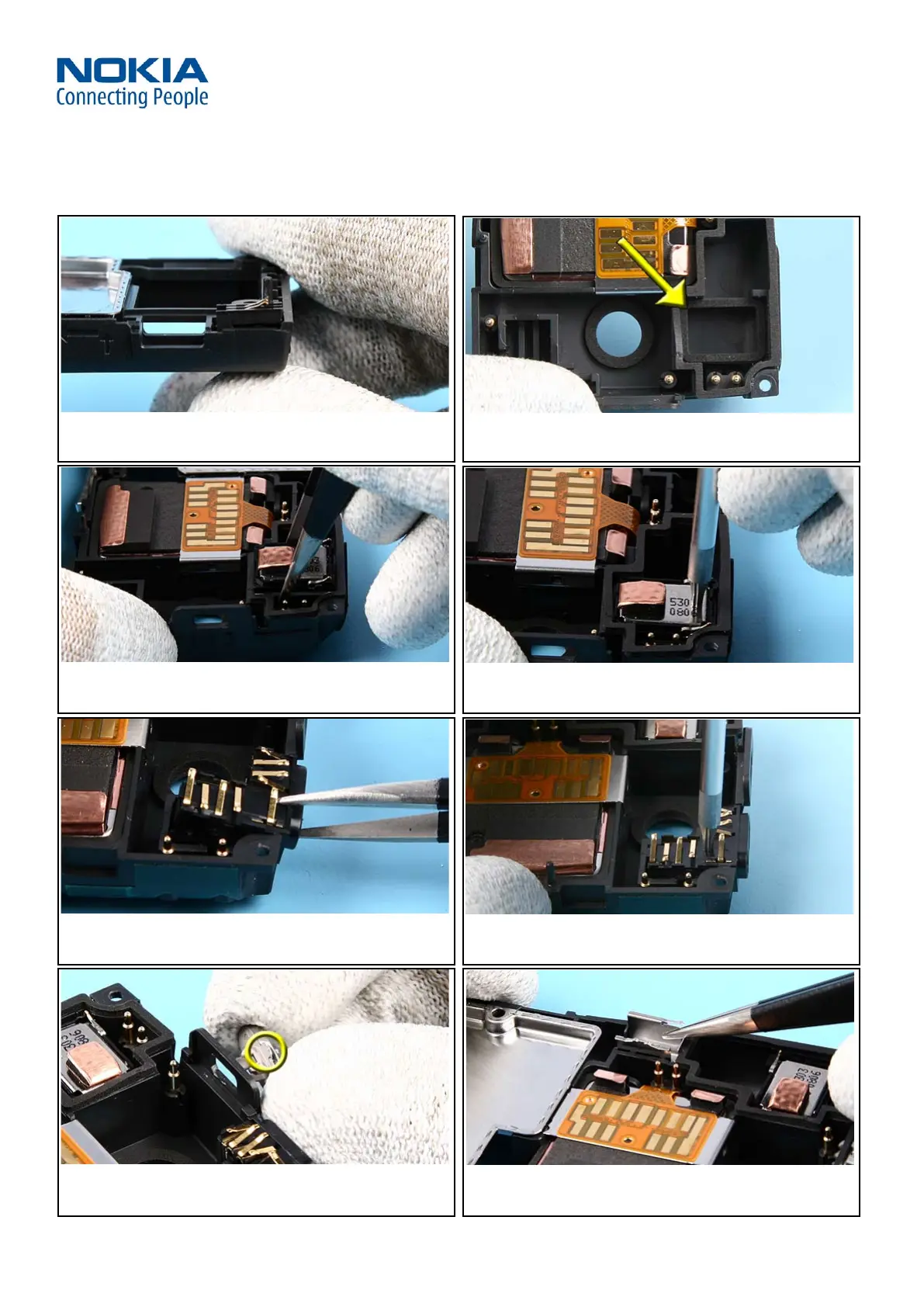

9. Check the SPACER FOR DC JACK for correct positioning as shown. 10. Check the IHF ADHESIVE. Replace it if destroyed or missing.
11. Place the IHF SPEAKER. Always use a new IHF SPEAKER GASKET
when replacing the speaker.
12. Push the IHF SPEAKER slightly into its place. Note the spring
contacts.
13. Insert the 3,5 AUDIO JACK into its compartment. 14. Note not to damage the spring contacts when pushing it into
its place.
15. Mind the correct position when placing the
HOLD SWITCH HANDLE.
16. Insert the VIBRA SHIELD.
