Nokia N91 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
27.Apr.2006
12
Service Manual N91 RM-43 / RM-158
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 3.0
MGR
Page
(34)

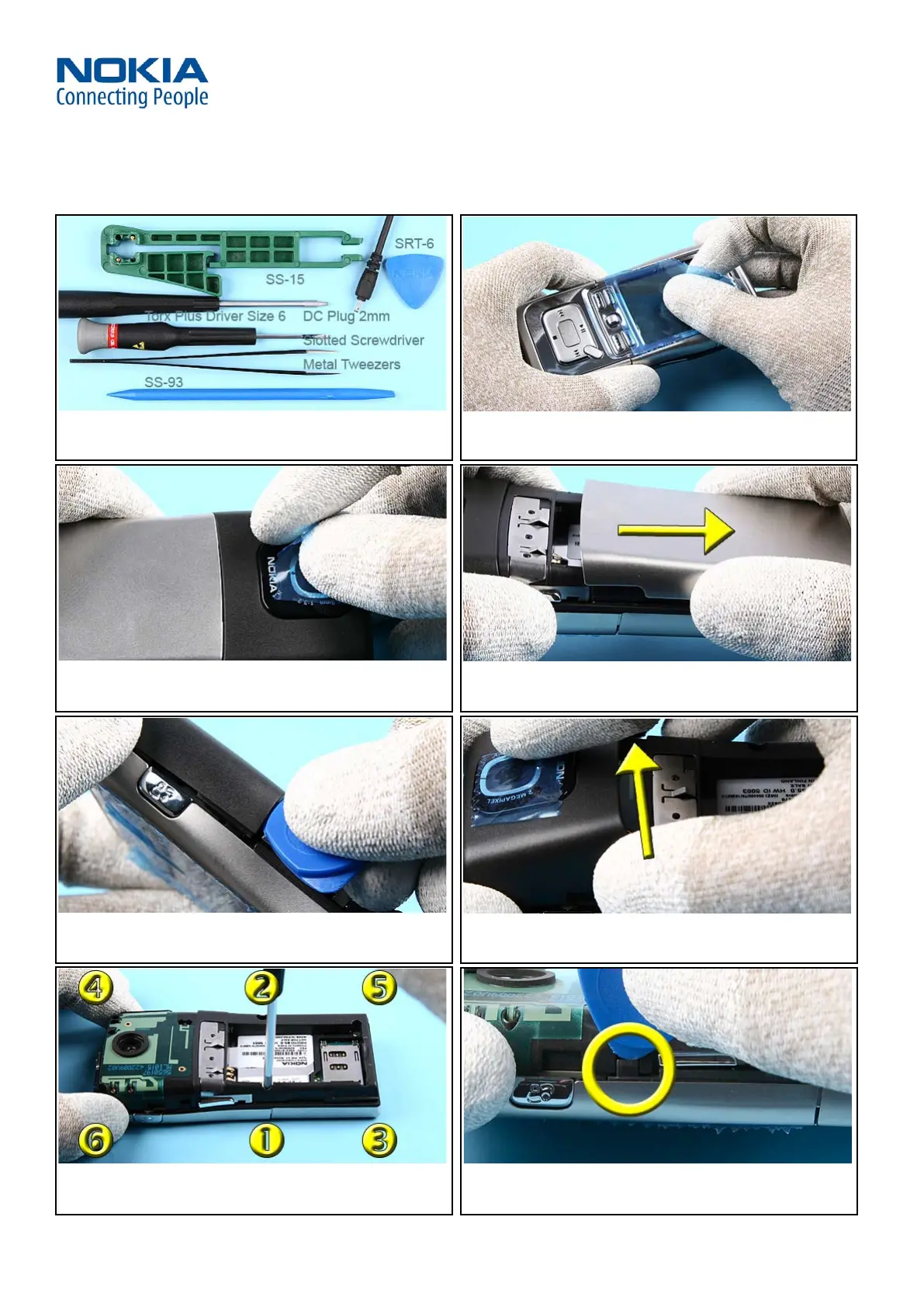

DISASSEMBLY INSTRUCTION9.
1. You need the tools shown. 2. Protect the window with a plastic film.
3. Also protect the CAMERA WINDOW with a plastic film. 4. Unlock and remove the B-COVER ASSY.
5. Slightly release the clips of the ANTENNA COVER ASSEMBLY on
both sides.
6. Now lift off the ANTENNA COVER ASSEMBLY.
7. Remove the screws in the order shown.
8. Carefully unlock the clips on both sides of the assembly.
