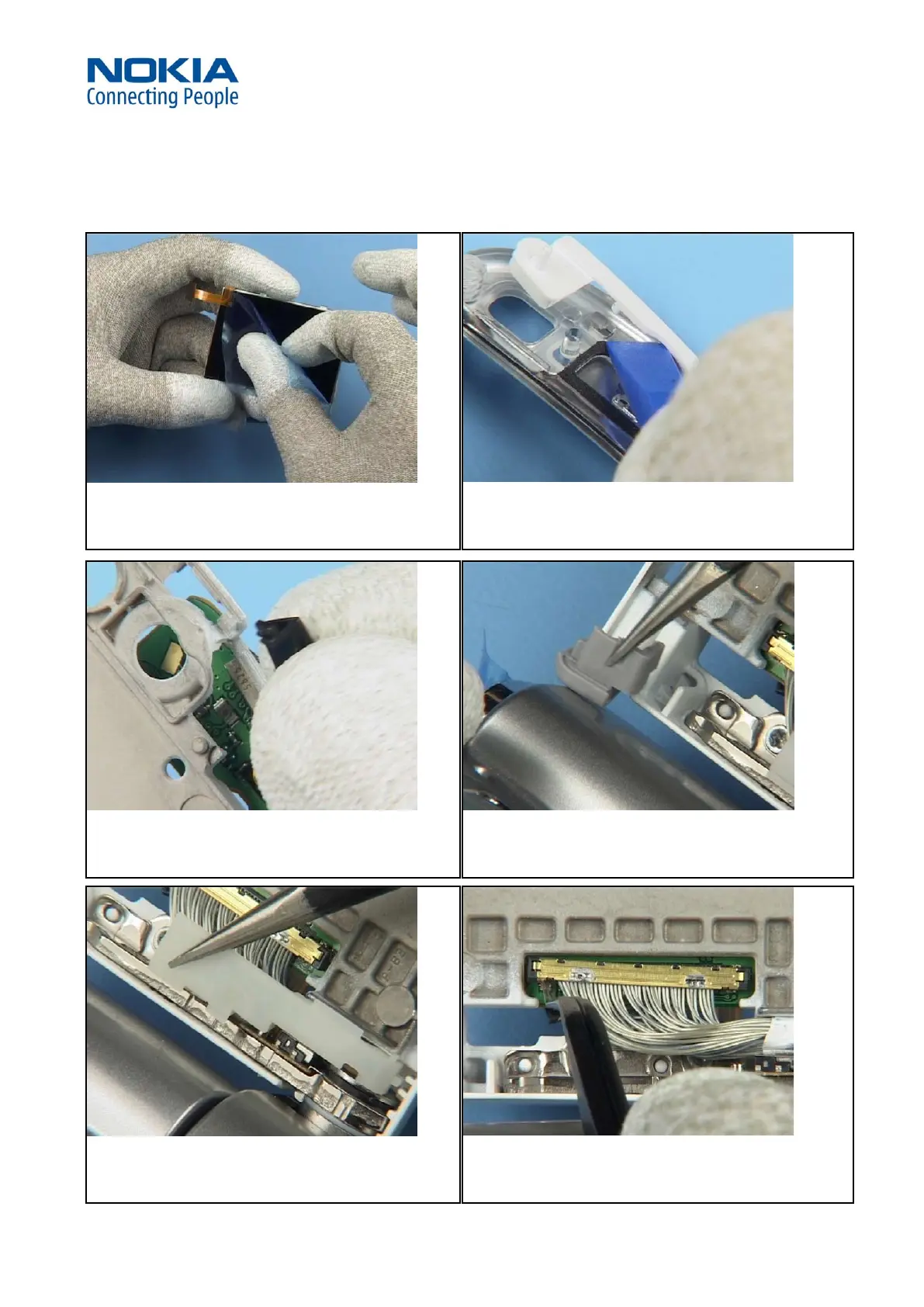

25. Protect the display with a plastic lm.
26. Carefully lever out the Flip Soft Keymat.
27. Remove the IR Window.
28. Pull out the Flip Corner Bumper.
29. Mind the cables while removing the Detector Holder with
tweezers.
30. Use the angled tweezers for levering out the connector as
shown.
