Nokia N97 - Get started

Nokia N97 RM-505/RM-506/RM-507
Service Manual Level 1&2
19
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 4.0

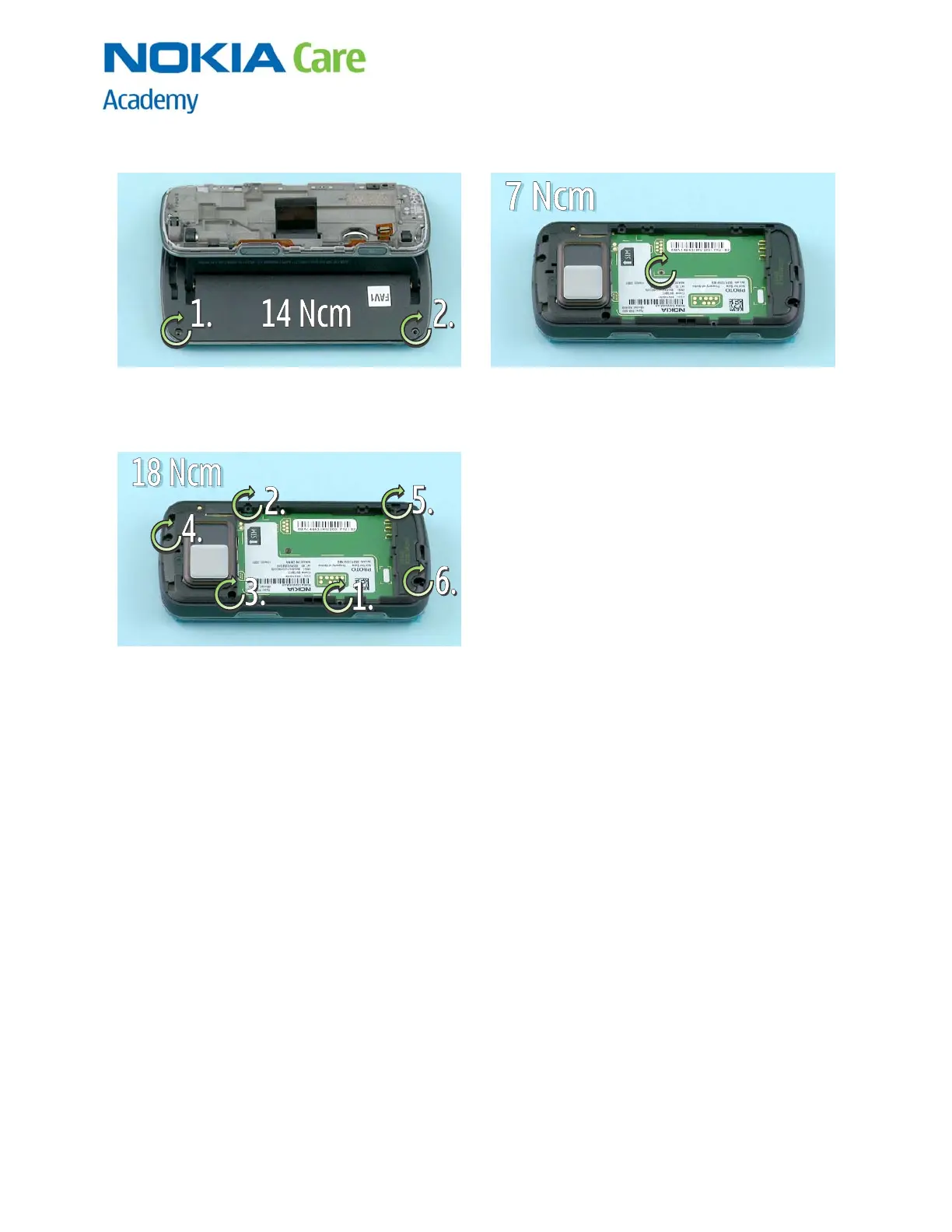

11. ASSEMBLY HINTS
1) Tighten the two Phillips size 00 screws to the
torque of 14 Ncm in the order shown.
2) Tighten the TORX + size 4 screw to the torque of
7 Ncm.
3) Tighten the six TORX + size 4 screws to the
torque of 18 Ncm in the order shown.
