Nokia N97 - Disassembly Instruction

Nokia N97 RM-505/RM-506/RM-507
Service Manual Level 1&2
12
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 4.0

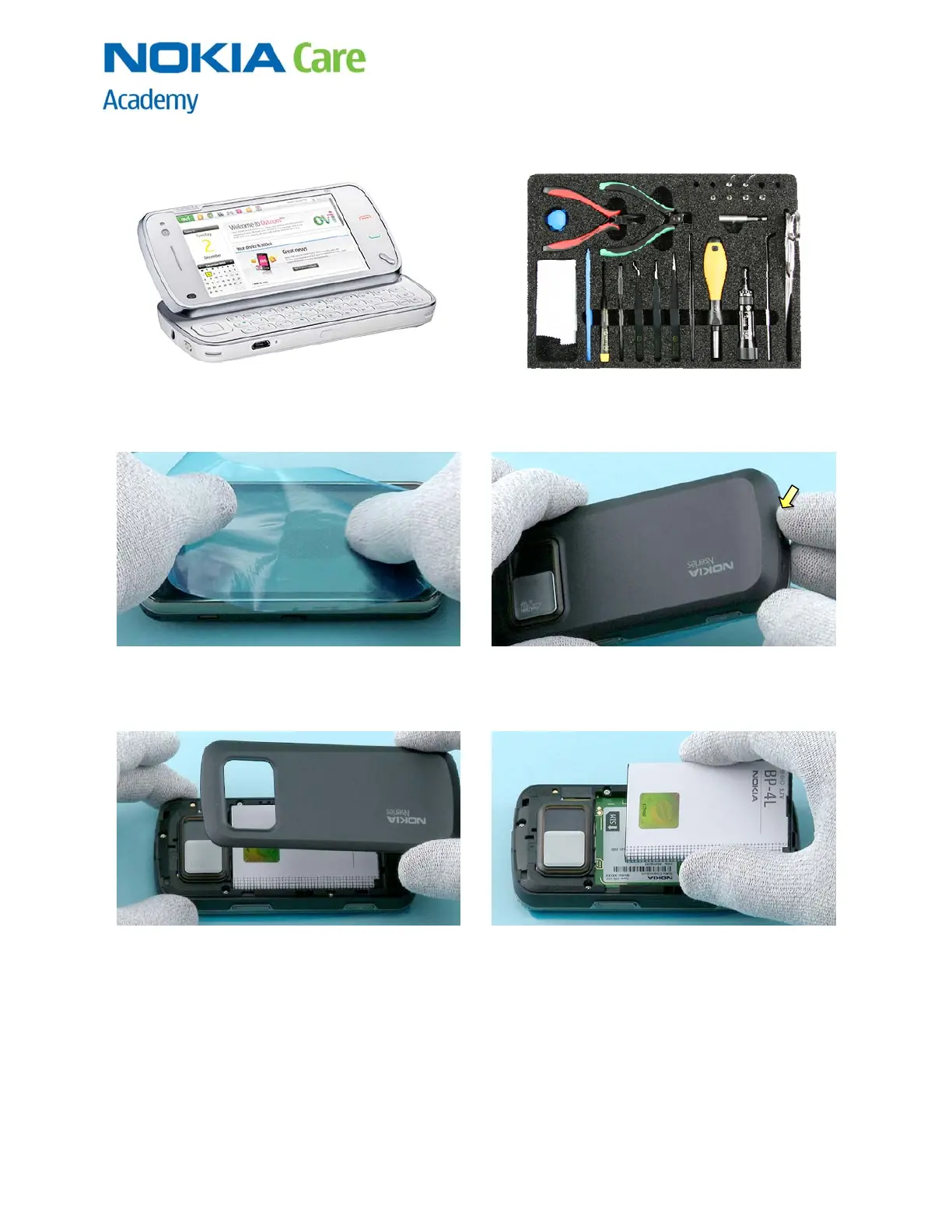

10. DISASSEMBLY INSTRUCTIONS
1) Nokia N97 disassembly. 2) You must use the Nokia Standard Toolkit version
2.
3) Protect the front cover with protective film. 4) Press release button and remove the BATTERY
COVER.
4) Remove the BATTERY COVER. 6) If there is a battery inserted, remove it also.
