Nokia N97 Service Manual

Nokia N97 RM-505/RM-506/RM-507
Service Manual Level 1&2
9
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 4.0

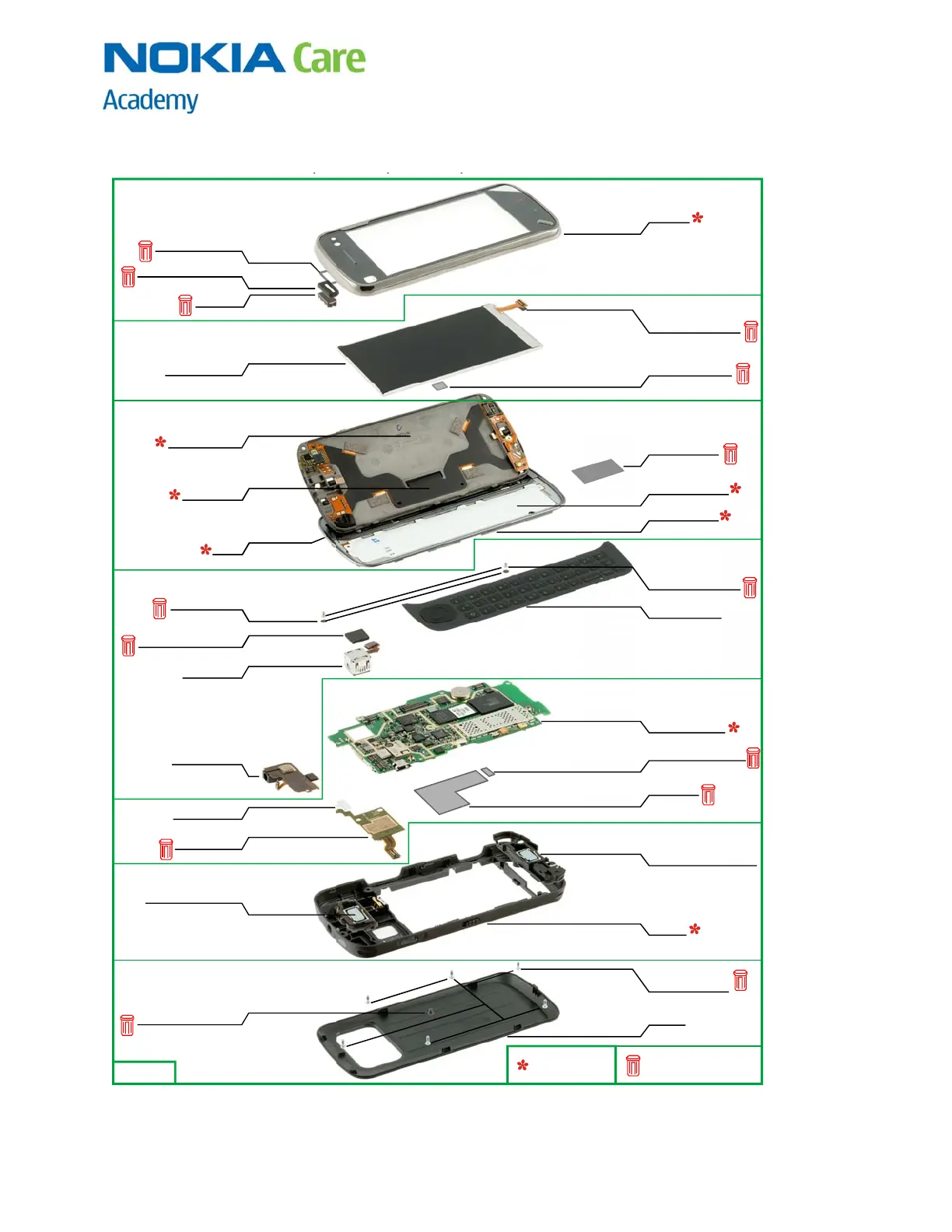

7. EXPLODED VIEW
Only available as
assembly
Ver. 3.0
These parts can not be
reused after removal
/
/
/
A-COVER
I0001
EARPIECE RUBBER BOOT
I0009
EARPIECE
I0002
EARPIECE ADHESIVE
I0008
DISPLAY CHASSIS
I0102
HINGE
I0103
TILT FPC ASSY
I0101
SCREW BUMPON
I0007
SHIELD FRAME CUSHION
I0213
CAMERA ASSY
I0203
AUDIO FPC ASSY
I0206
HEAT SINK ASSY
I0204
BEZEL FPC ASSY
I0205
LEFT IHF HOLDER ASSY
I0208
SCREW M1.2X2 TORX+ 4
I0211
DISPLAY MODULE
I0003
WATER INGRESS LABEL
I9998
TYPE LABEL
I0202
LCD ADHESIVE TAPE
I0005
QROCKER FPC ASSY
I0104
ABSORBER TAPE
I0107
ENGINE CHASSIS
I0105
QWERTY KEYMAT
I0106
LIGHT SWAP PWB
I0201
B-COVER
I0209
C-COVER
I0212
SCREW
M1.4X3.6 TORX+ 4
I0210
CELLULAR ANTENNA ASSY
I0207
DISPLAY
CONNECTOR CUSHION
I0004
SCREW
M1.6X2.4 (PHILLIPS)
I0006
A1 = A-COVER ASSY (I0001-I0002, I0008-I0009)
A2 = HINGE ASSEMBLY MODULE (I0101-I0105, I0107)
A4 = B-COVER ASSY (I0207-I0209)
A3 = LIGHT SWAP PACKAGE
(I0201-I0202, I0204-I0205, I9998)

Nokia N97 Specifications

General

Panel type	TFT
Display diagonal	3.5 \
Display resolution	360 x 640 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	32768 MB
Front camera type	Single camera
Rear camera resolution	2584 x 1938 pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.5 h
Battery capacity	1500 mAh
Standby time (2G)	430 h
Personal info management (PIM)	Alarm clock, Calculator, Calendar, To-do list
2G standards	EDGE, GPRS
Data network	3G
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	15.9 mm
Width	55.3 mm
Height	117.2 mm
Weight	150 g
