Nokia N97 Service Manual

Nokia N97 RM-505/RM-506/RM-507
Service Manual Level 1&2
13
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 4.0

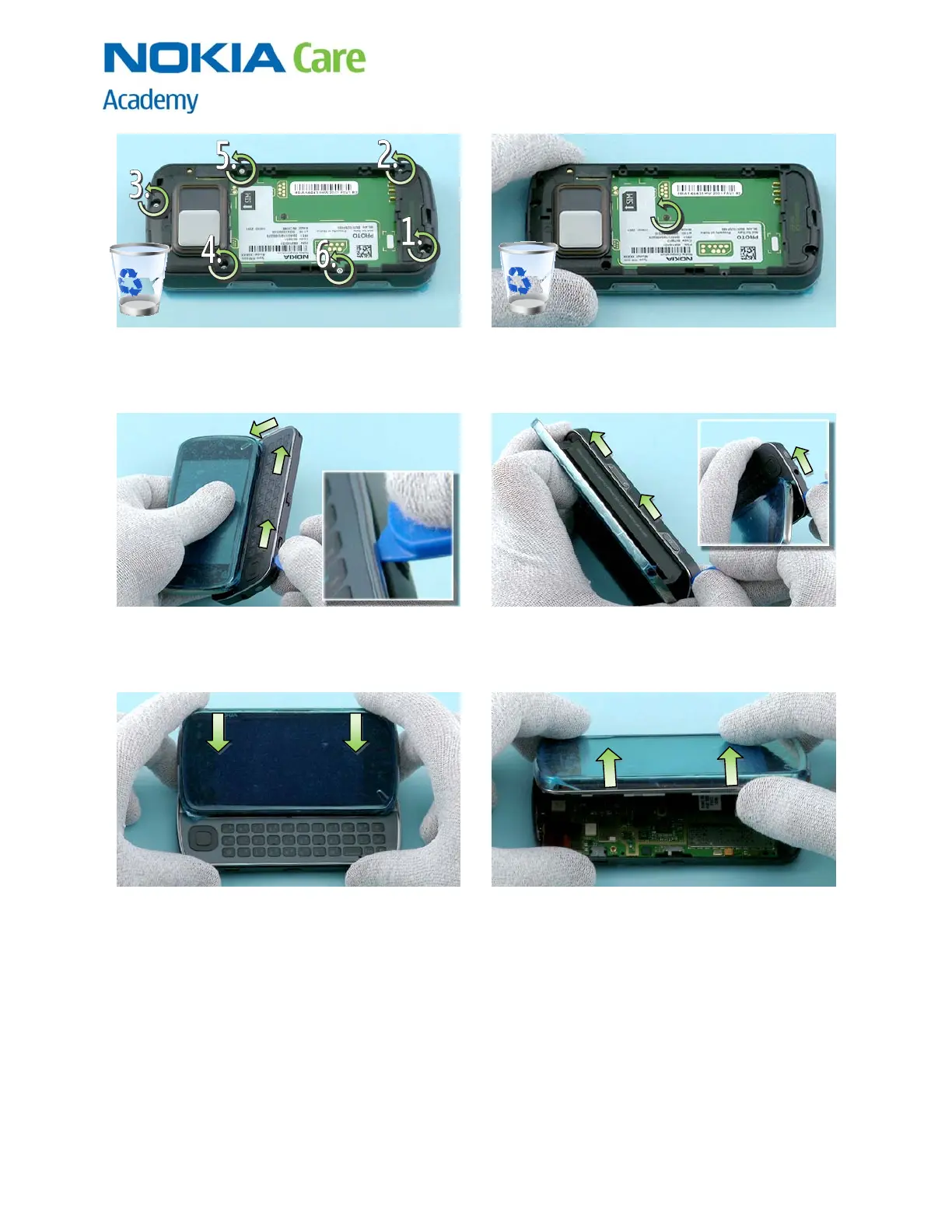

7). Unscrew the six TORX + size 4 screws in the order
shown. Do not use them again.
8) Then unscrew this TORX + size 4 screws. Do not
use it again.
9) Open the slide and use the SRT-6 to release the
clips of the lower part.
10) Slide the SRT-6 along the cover to release all the
clips.
11) Close the slide. 12) Carefully lift up the upper part to gain access to
the TILT FPC ASSEMBLY connector.

Nokia N97 Specifications

General

Panel type	TFT
Display diagonal	3.5 \
Display resolution	360 x 640 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	32768 MB
Front camera type	Single camera
Rear camera resolution	2584 x 1938 pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.5 h
Battery capacity	1500 mAh
Standby time (2G)	430 h
Personal info management (PIM)	Alarm clock, Calculator, Calendar, To-do list
2G standards	EDGE, GPRS
Data network	3G
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	15.9 mm
Width	55.3 mm
Height	117.2 mm
Weight	150 g
