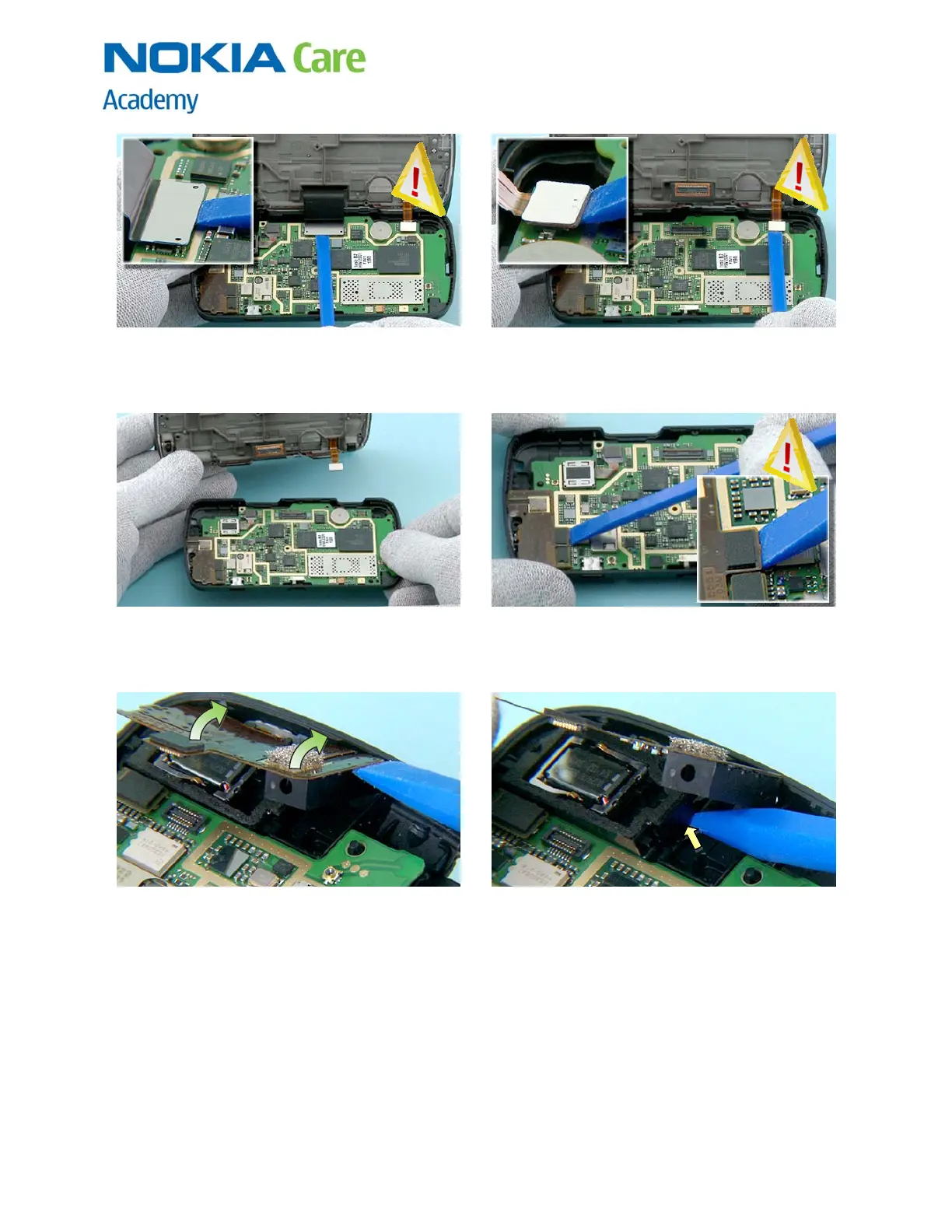

13) Open the TILT FPC ASSEMBLY connector with the
SS-93. Be careful not to damage the connector - or
components nearby.
14) Then open carefully the Q-ROCKER FPC ASSEMBLY
CONNECTOR with the SS-93.
15) Separate the upper part and the B-cover with
the engine board.
16) Use the SS-93 to open the connector of the
AUDIO FPC ASSEMBLY. Be careful not to damage the
connector - or components nearby.
17) Next, lift up the AUDIO ASSEMBLY with the SS-93.
18) Then release the IHF HOLDER ASSEMBLY with the
SS-93.
