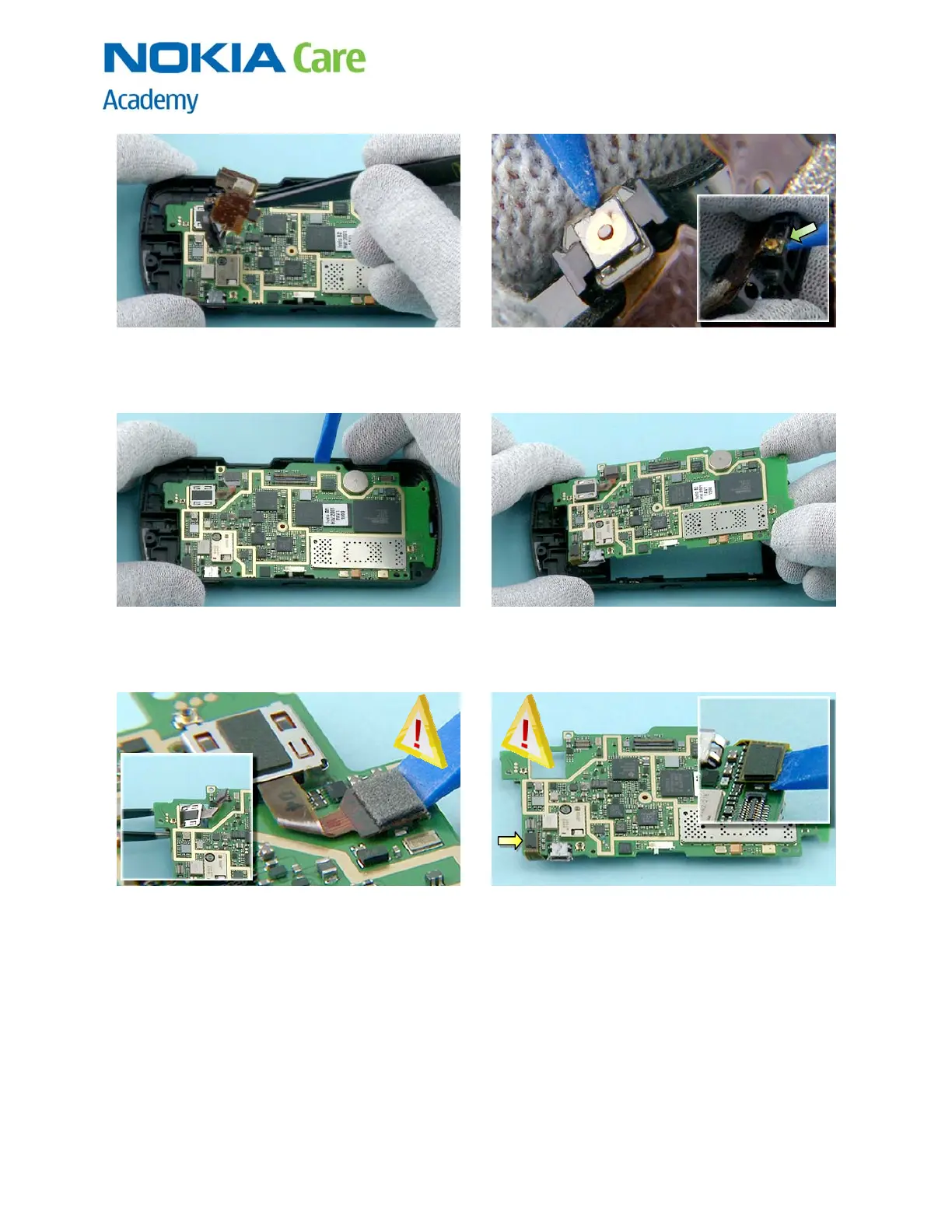

19) Remove the AUDIO ASSEMBLY and the IHF
HOLDER ASSEMBLY with the tweezers.
20) Use the SS-93, to separate the AUDIO ASSEMBLY
and the IHF HOLDER ASSEMBLY.
21) Release the engine board with the SS-93. 22) The engine board can be separated as shown.
23) Carefully open the camera connector with the
SS-93. Then remove the camera with the tweezers
by pulling it through the hole.
24) Next, open the connector of the BEZEL FPC
ASSEMBLY with the SS-93.

Nokia N97 Specifications

General

Panel type	TFT
Display diagonal	3.5 \
Display resolution	360 x 640 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	32768 MB
Front camera type	Single camera
Rear camera resolution	2584 x 1938 pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.5 h
Battery capacity	1500 mAh
Standby time (2G)	430 h
Personal info management (PIM)	Alarm clock, Calculator, Calendar, To-do list
2G standards	EDGE, GPRS
Data network	3G
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	15.9 mm
Width	55.3 mm
Height	117.2 mm
Weight	150 g
