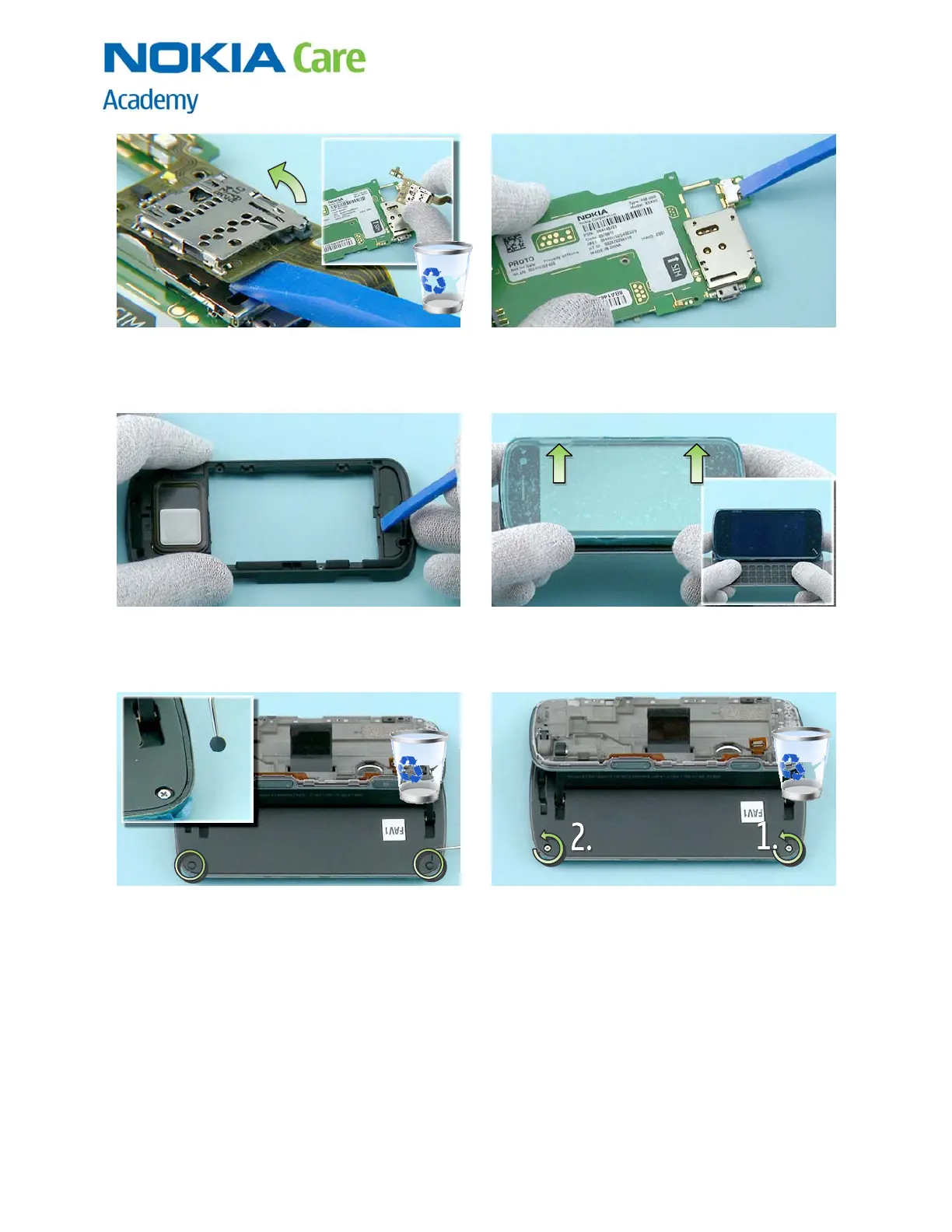

25) Turn the ENGINE BOARD over and use the SS-93
to release the BEZEL FPC. Then remove it. Do not use
the BEZEL FPC again.
26) Release the HEAT SINK ASSEMBLY with the SS-93
and then remove the assembly.
27) Use the SS-93 to detach the antenna assembly
and then remove it.
28) Slide the phone open.
29) Remove the two screw bumpons with the
dental tool. Do not use them again.
30) Unscrew the two Phillips size 00 screws in the
order shown. Do not use them again.
