Nokia N97 Service Manual

Nokia N97 RM-505/RM-506/RM-507
Service Manual Level 1&2
17
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 4.0

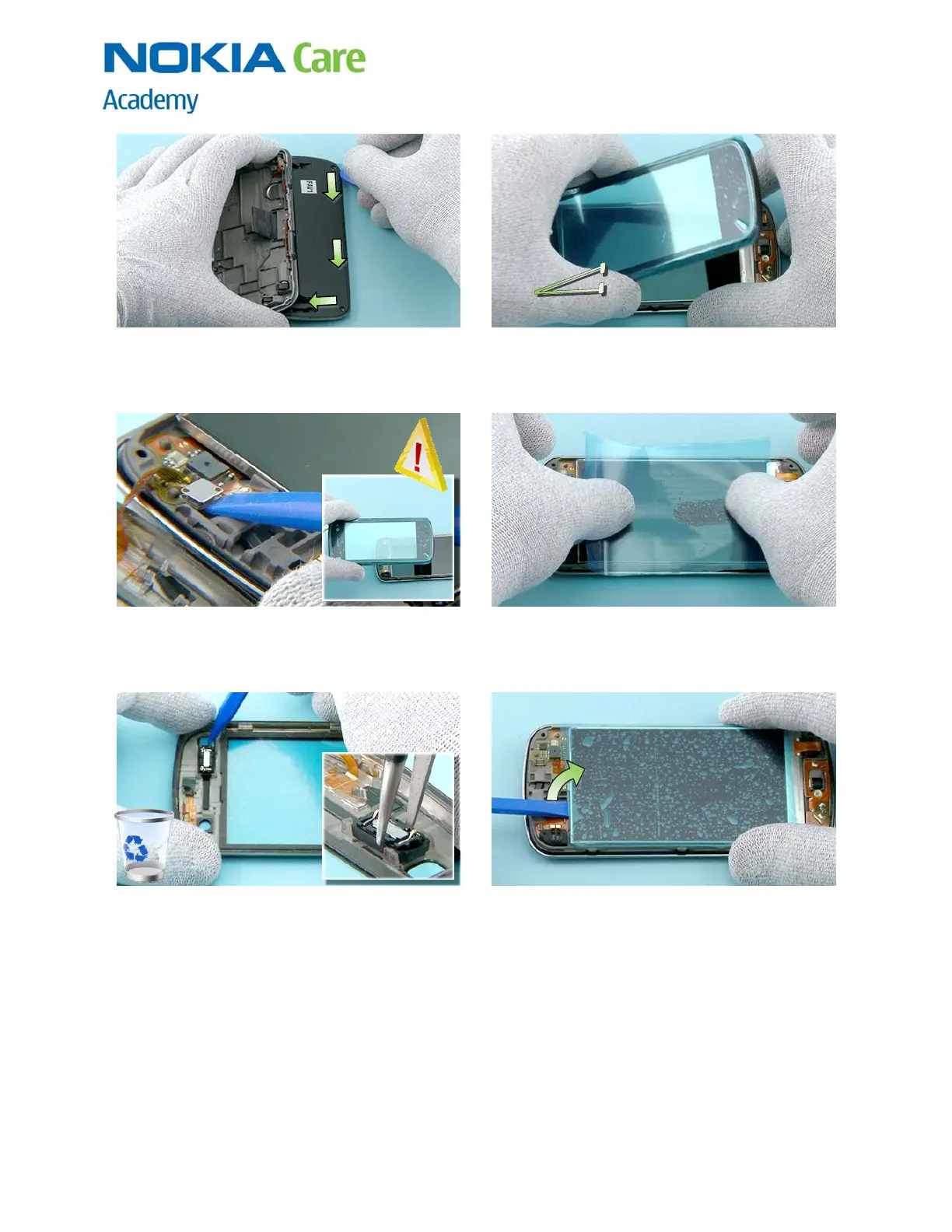

31) Detach the A-cover assembly with the SRT-6 as
shown.
32) Then carefully lift up the right side of the A-
cover assembly.
33) Disconnect the A-COVER ASSEMBLY CONNECTOR
with the SS-93. Remove the A-COVER ASSEMBLY.
34) Remember to protect the LCD with protective
film.
35) Use the sharp end of the SS-93 to release the
EARPIECE. Remove the EARPIECE with the tweezers.
Do not use it again.
36) Use the SS-93 to lift up the LCD.
