Connecting SDI
Attaching 3G-SDI card

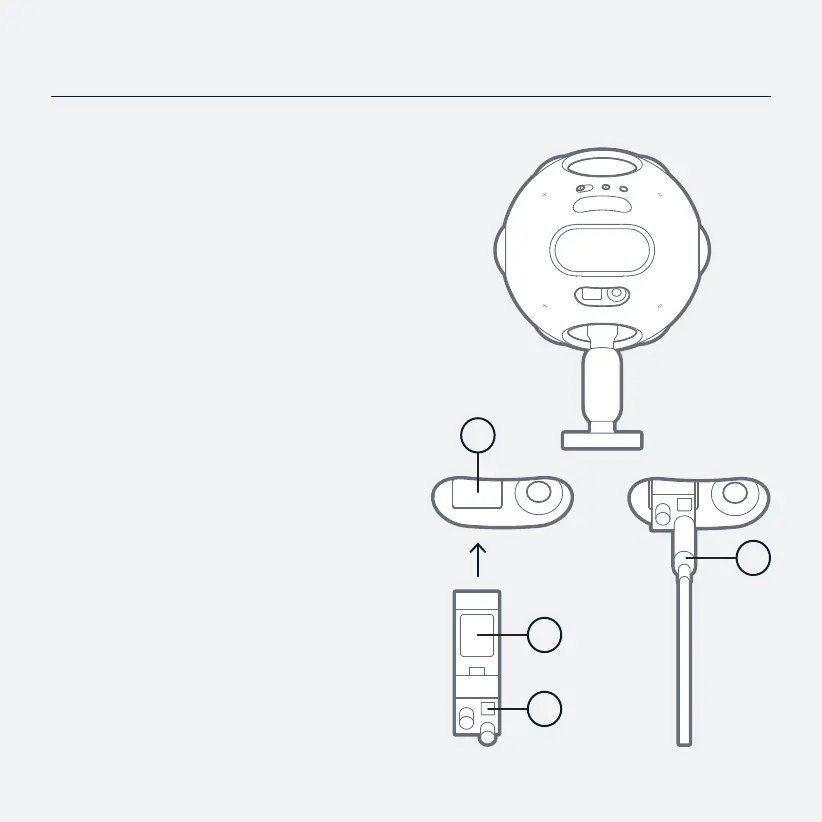

Carefully remove the 3G-SDI SFP+
card (A) from the ESD bag, and insert
itrmlyintotheSFP+socket(B).
To remove, lift the latch (C) on the SDI
card and carefully apply backwards
pressure to the frame of card, NOT to
the DIN sockets.
Attaching SDI DIN cable
Attach a standard SDI DIN connector
(D) to the lower DIN socket shown by
arrow facing away from device.
To remove the cable, lift the cover
of the DIN connector, and apply
pressure.
Take care not to apply lateral force to
the DIN sockets. Use cable strain relief
where necessary, otherwise damage
may occur.
19
B
C
A
D
