Phone doesn't set FBUS_TX line low
Because of the use of uBGA components it is not possible to verify if there is a short circuit in control- and
address lines of MCU (UPP) and memory (flash).

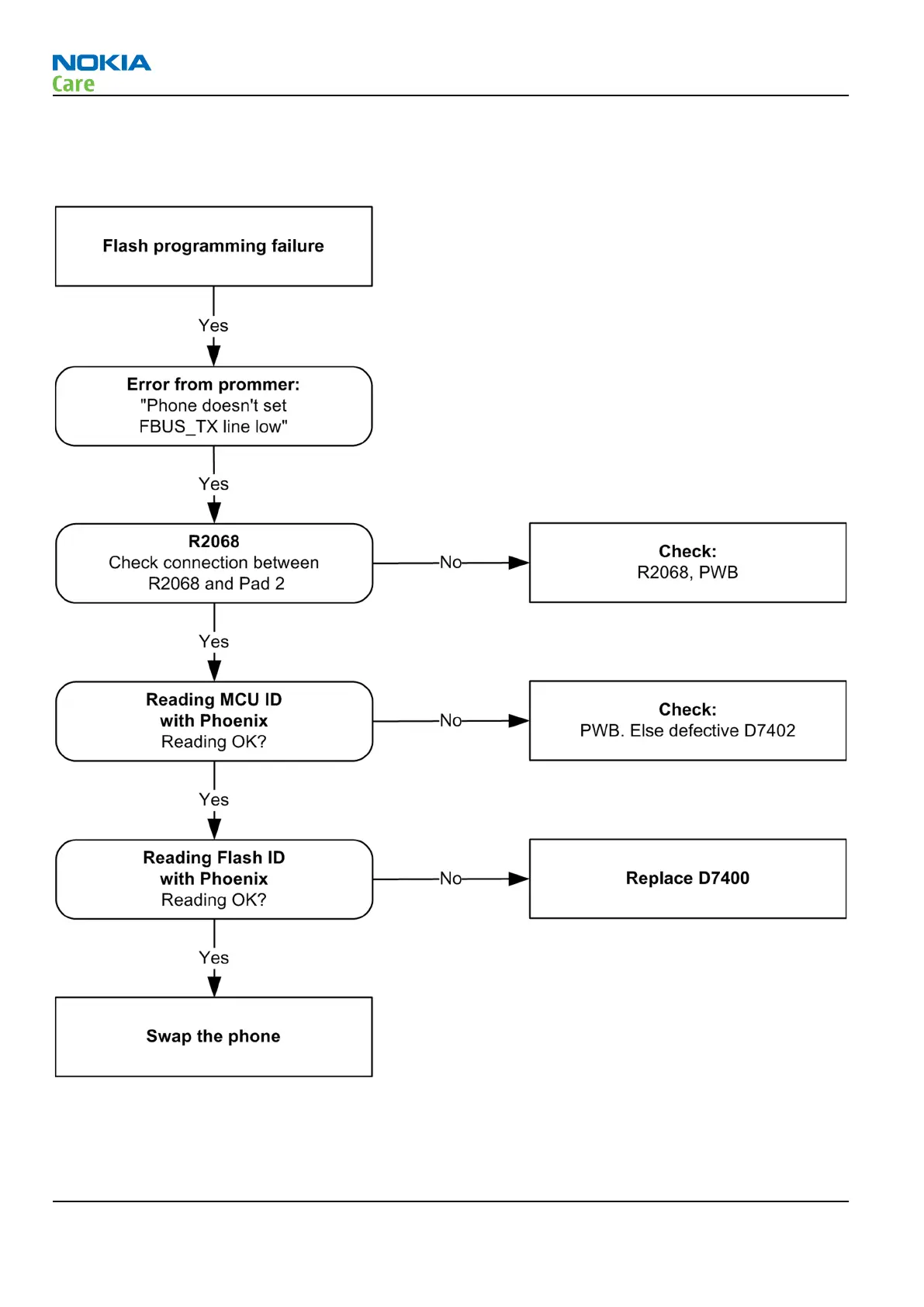

Figure 9 Flash programming fault
RH-99; RH-100; RH-105; RH-106
Baseband troubleshooting
