Nokia RM-519 User Manual

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
17
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1

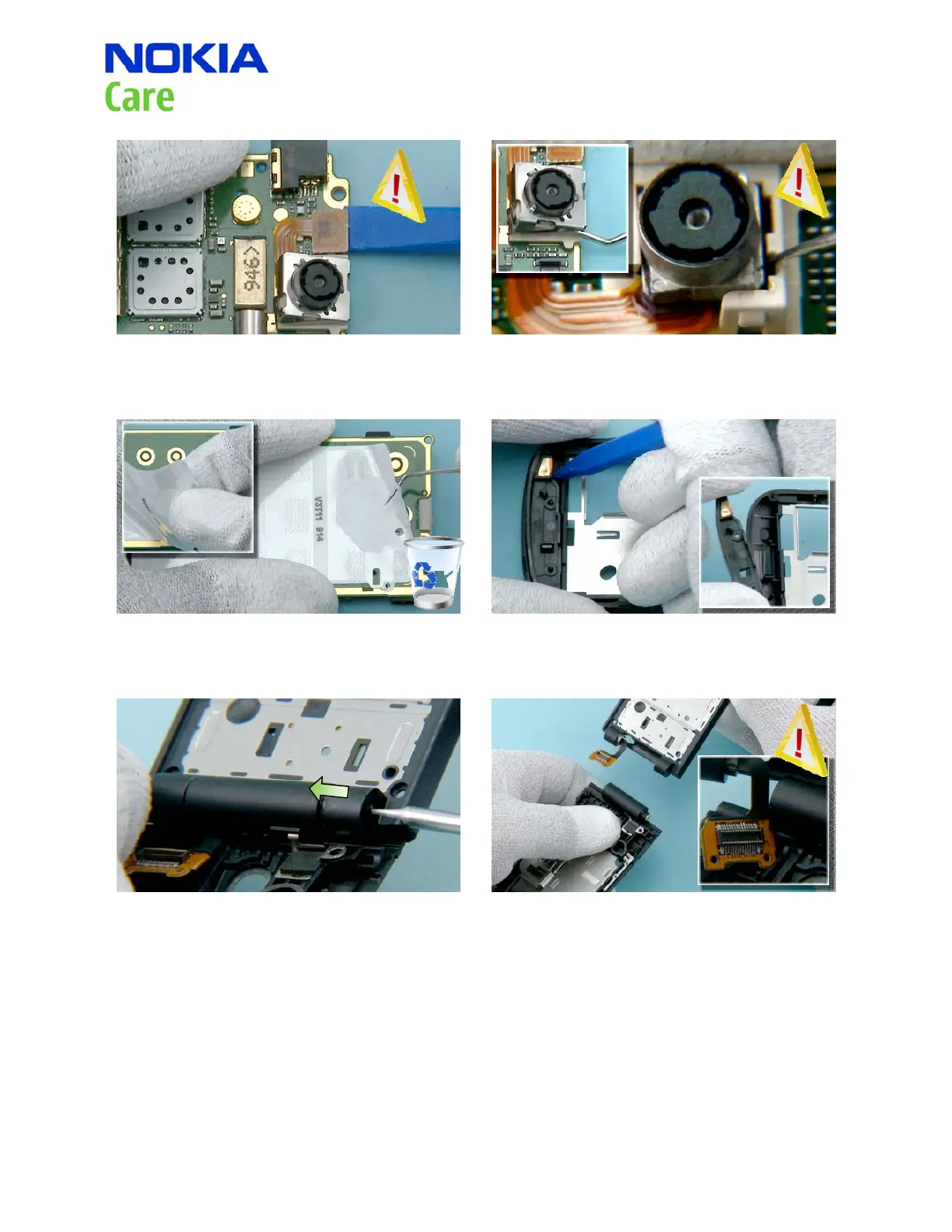

31) Disconnect the camera connector with the SS-
93. Be careful with the components around the
connector!
32) Carefully detach the frame holding the camera
with the dental tool. Then release the camera with
the dental tool.
33) Release the DOMESHEET with the dental tool and
peel it off. The DOMESHEET cannot be reused.
34) Use the sharp end of the SS-93 to detach the
ANTENNA and then remove it.
35) Insert the SS-6 in the hole and push the tool
until the HINGE is released.
35) While separating the covers, be careful not to
damage the flex!
