Nokia RM-519 User Manual

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
16
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1

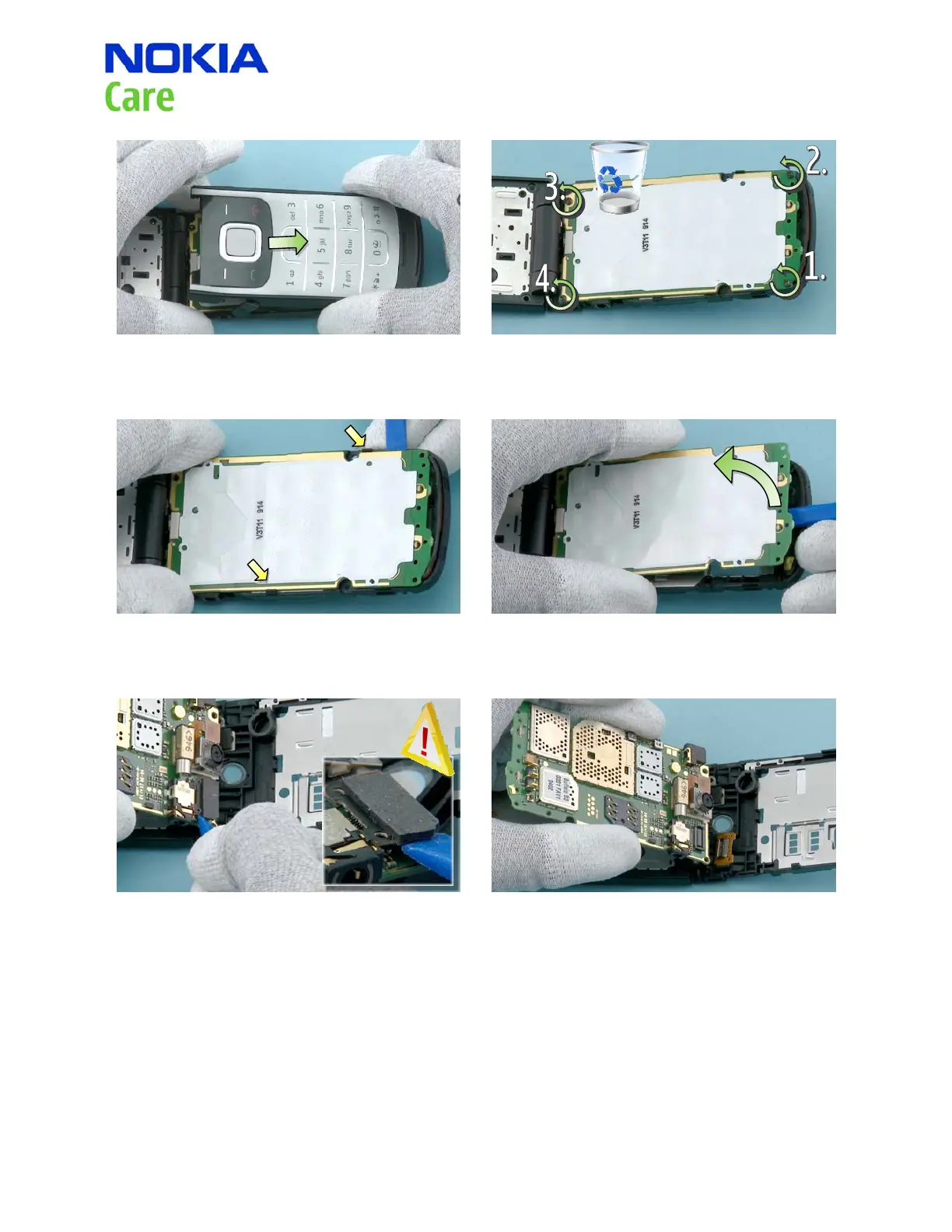

25) Turn the phone and detach the C-COVER in the
direction shown.
26) Unscrew the four TORX+ size 4 screws in the
order shown.
27) Carefully release the two clips holding the
engine board with the SS-93.
28) Carefully lift up the engine board with the SS-93
and turn it as shown.
29) Before the engine board can be removed, the UI
connector has to be disconnected from the engine
board. Be careful with the components around the
connector!
30) Remove the engine board.
