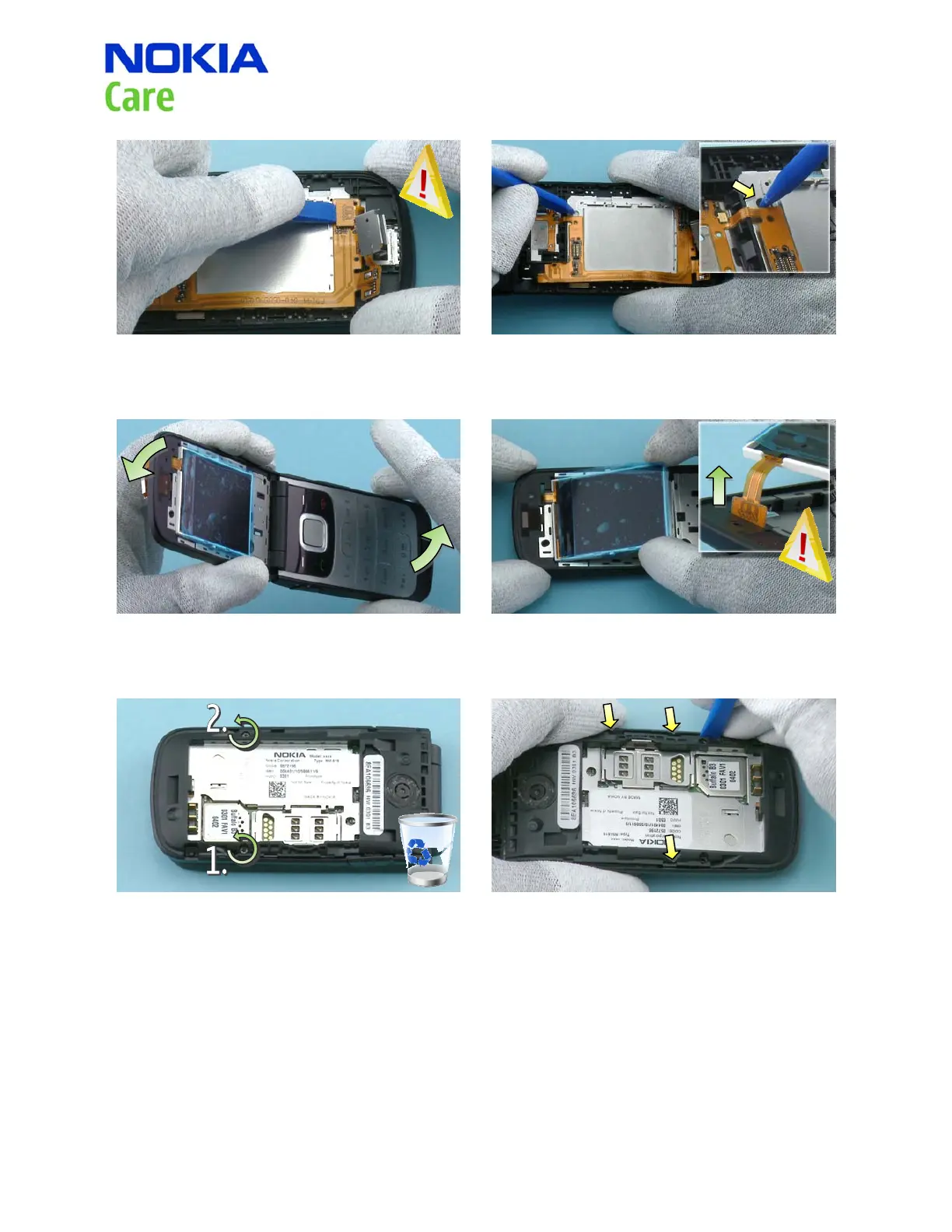

19) Disconnect the BAFFIN LCD connector with the
SS-93. While opening the connector, be careful not
to damage it!
20) Fold the phone open. Place the sharp end of SS-
93 on a small hole shown and push gently to
release the main LCD.
21) Flip the device carefully so that the LCD does not
fall off!
22) Lift up the LCD and carefully remove the LCD flex
through the gap. Be careful not to damage the flex!
23) Fold the phone and unscrew these two TORX+
size 4 screws in the order shown.
24) Open the phone and release the C-COVER with
the SS-93.
