Nokia RM-519 User Manual

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
14
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1

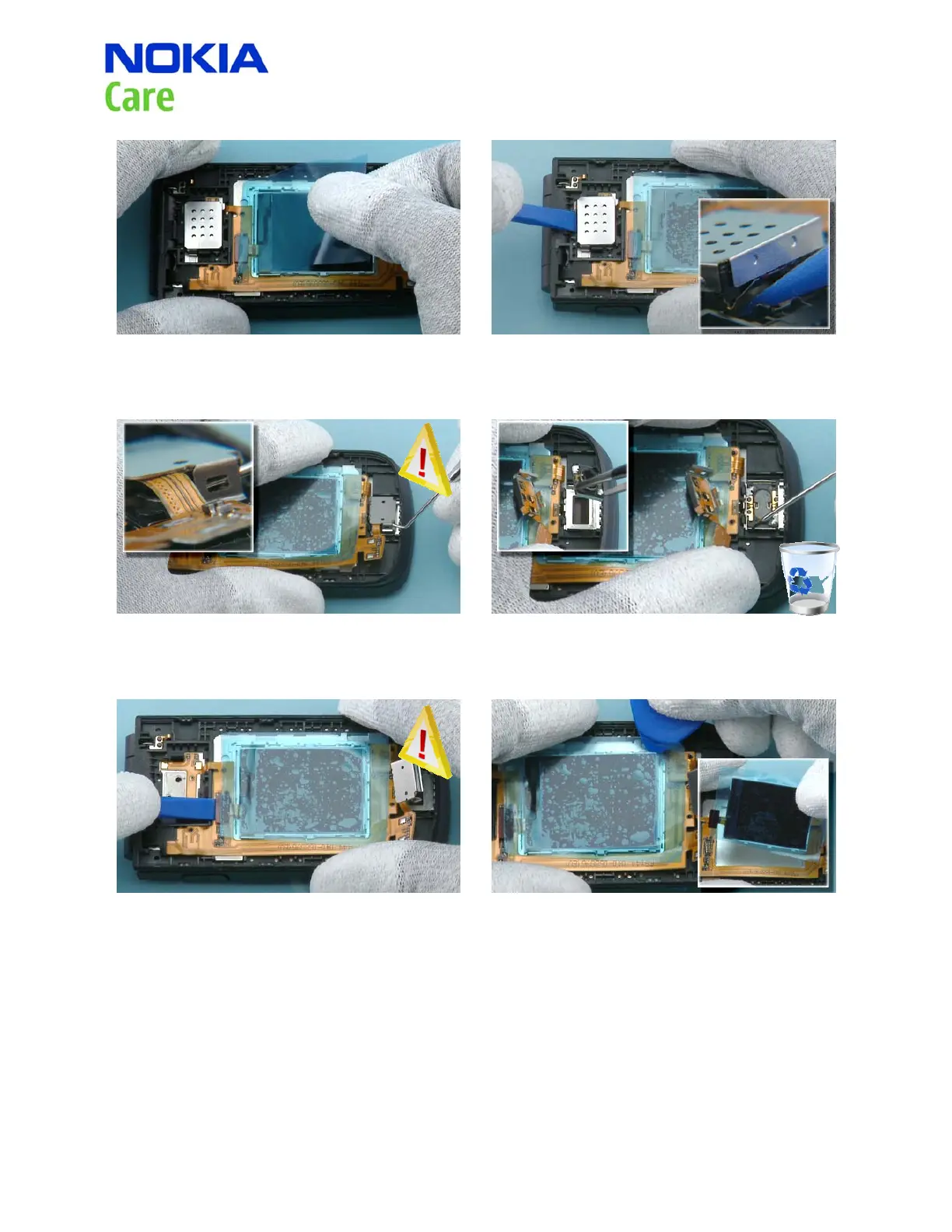

13) Remember to protect the CATALINA LCD with
protective film.
14) Lift up the IHF SPEAKER with the SS-93 and
remove the speaker.
15) Use the dental tool to carefully lift up the FLEX
CAN. Be aware of the sharp point of the dental tool -
be careful not to injure yourself!
16) Carefully bend the Flex foil as shown and lift up
the EARPIECE with the dental tool. The EARPIECE and
the EARPIECE ADHESIVE cannot be reused.
17) Disconnect the LCD connector with the SS-93. Be
careful with the components around the connector!
18) Use the SRT-6 to carefully lift up the CATALINA
LCD. And then remove the LCD.
