Nokia RM-801 Service Manual

RM-801; RM-819(Nokia Lumia 800)
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3-49
Copyright © 2011 Nokia. All rights reserved.
Power source (Charging) test
The power source test will allow the user to check what is currently powering the phone
Displayed data:

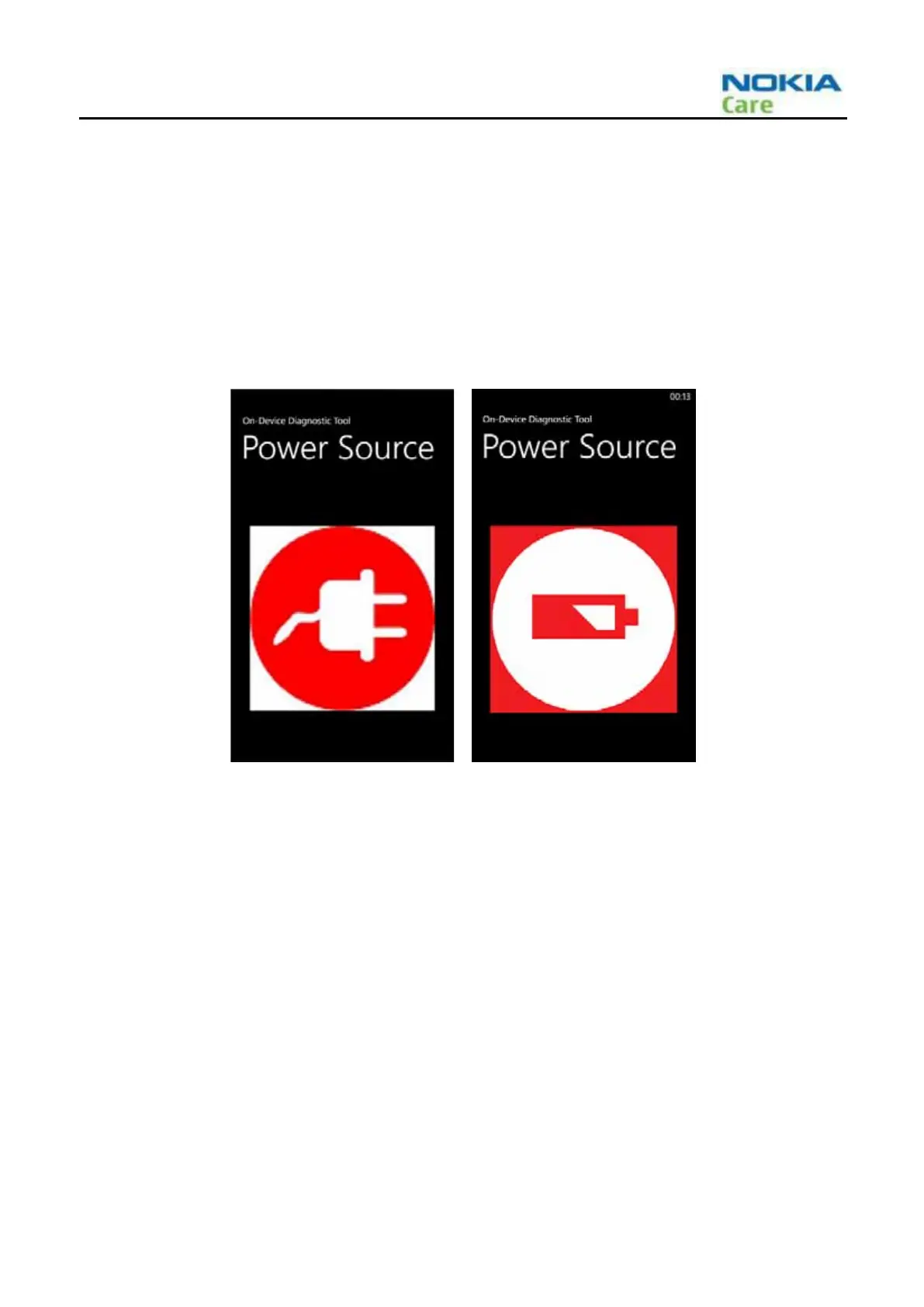

- An image of a battery will display when the phone is running on battery power and the image of a power
plug if the phone is running on an external source (USB or wall charger)
User can change settings for:
- none
User can test:
- What source is powering the phone (battery/ external)
Pressing the back ‘’ key will navigate back to the main menu

Nokia RM-801 Specifications

General

Model	Nokia RM-801
Category	Handhelds
Camera (Front)	No
Camera	Yes
Expandable Memory	microSD, up to 32 GB
Battery Type	Li-Ion
Display Type	TFT
FCC ID	RM-801
Network	GSM
Bluetooth	Yes
USB	microUSB v2.0
