Nokia RM-970 - Assembly Steps

Service Manual Level 1 and 2
Nokia 220
RM-969, RM-970, RM-971
Version 1.0
Assembly steps

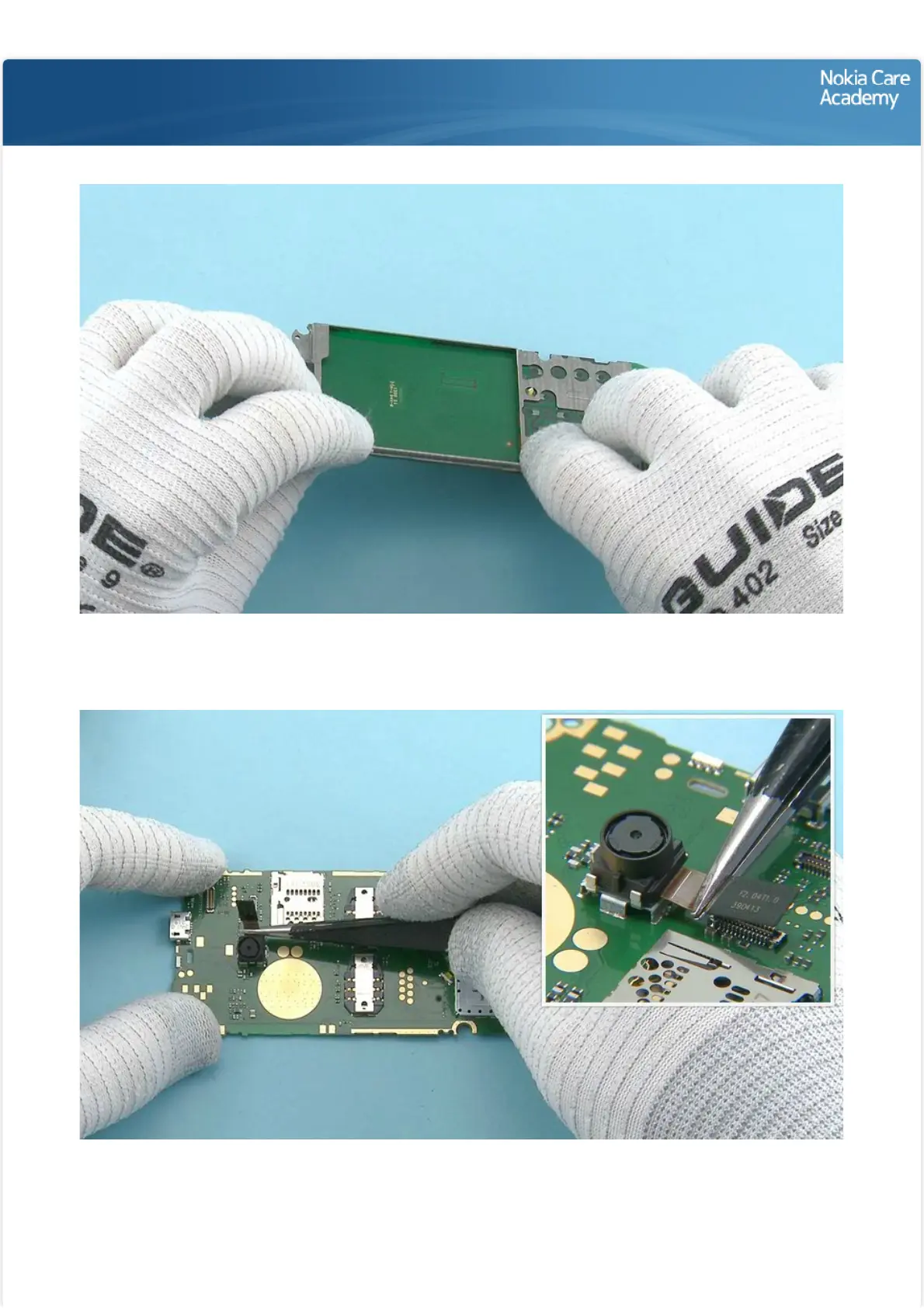

1) Note that before doing any solder repair for ENGINE BOARD you must attach the UI SHIELDING to the
ENGINE BOARD. This prevents damaging the KEY LED.
2) Place the CAMERA to its place as shown and make sure it is aligned correctly.
