RM-732 / RM-733
Service Manual Level 1&2
Co nf id e nt ial | Cop yrig ht © 2011 Nokia | A ll right s reserved

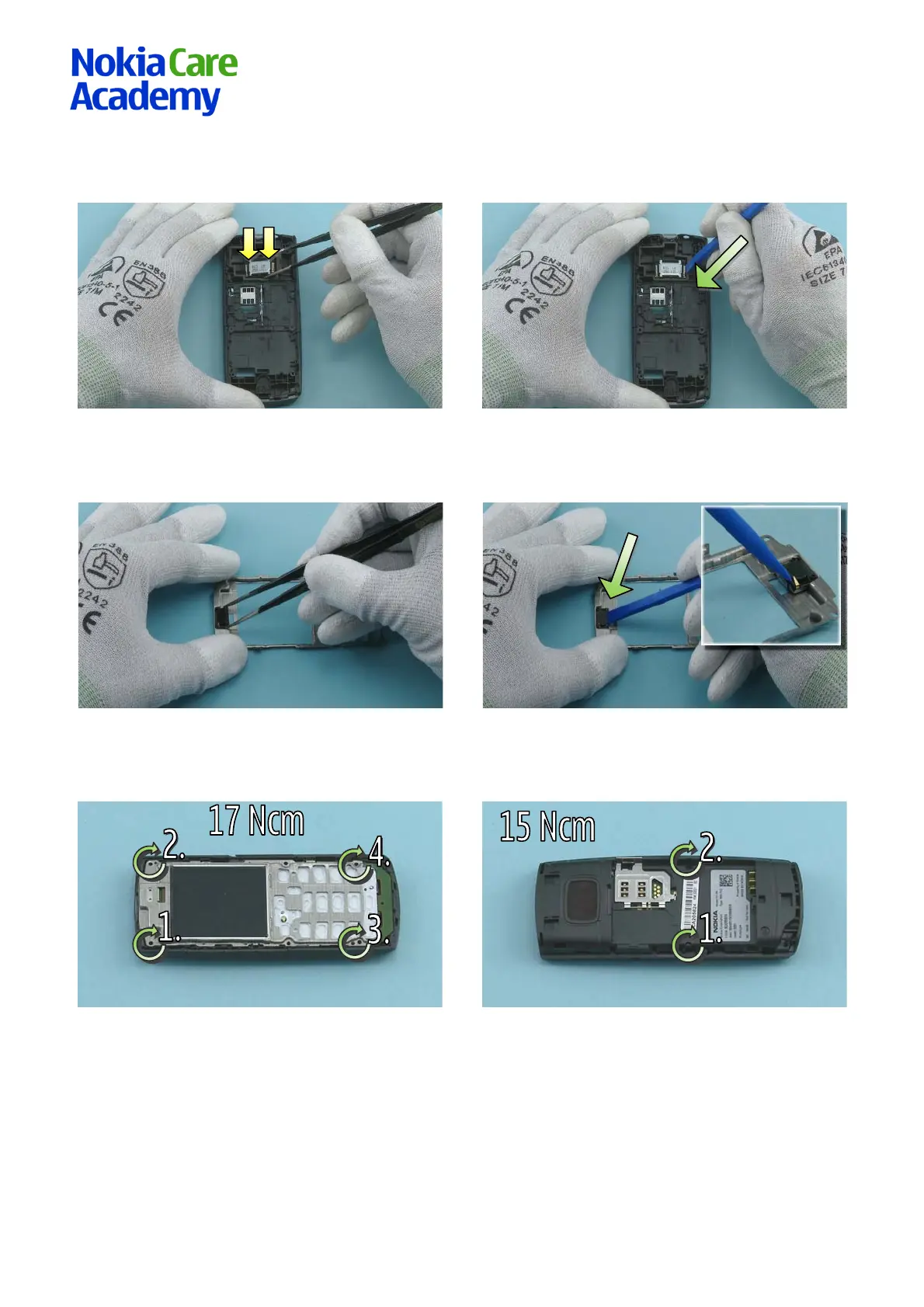

10. ASSEMBLY HINTS
1) Insert the IHF SPEAKER with the tweezers. Make
sure that the pins are correctly aligned.
2) Push the IHF SPEAKER down from the shown place
to activate the adhesive.
3) Place the EARPI ECE to its place with the tweezers.
4) Push the EARPIECE down with the SS-93 to activa te
the adhesive.
5) Tighten the TORX + size 4 screws to the torque of
17 Ncm.
6) Tighten the TORX + size 4 screws to the torque of
15 Ncm.
To Next Page
