Nokia X2-00 - Disassembly Instructions

Nokia X2-
00
RM-618
Service Manual Level 1&2
12 Confidential • Copyright © 2010 NOKIA • All rights reserved Version 2.0

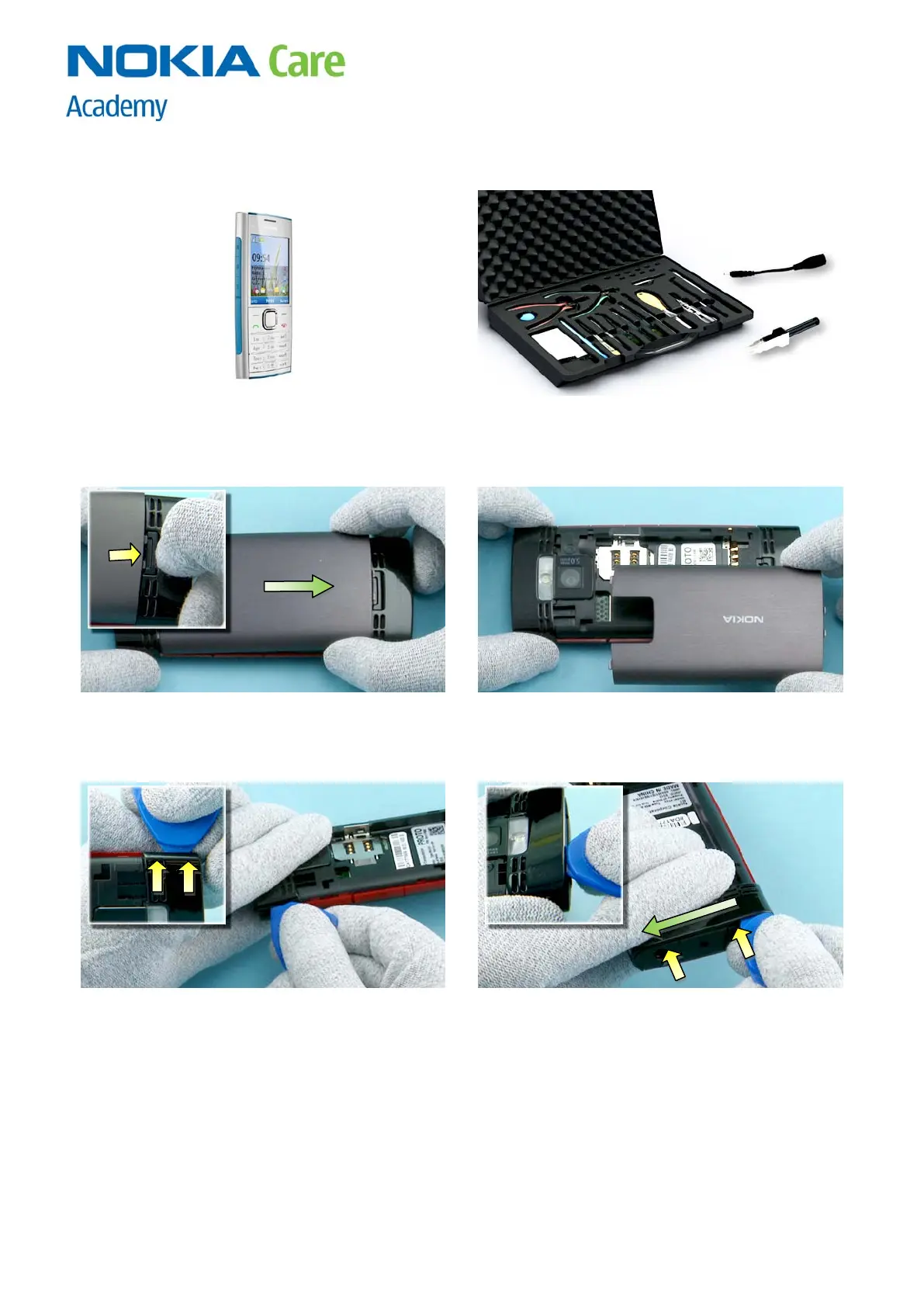

9. DISASSEMBLY INSTRUCTIONS
1) Nokia X2-00 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the camera removal tool SS-88
and the DC plug.
3) Use the opening notch to release the battery
cover and remove it.
4) If there is a battery inserted, remove it also.
5) Start detaching the IHF COVER ASSY with the SRT-
6 to release the first two clips .
6) Release the two clips on the top side of the
device by sliding the SRT-6 to the direction shown.
