Nokia X2-00 - Access codes

Nokia X2-
00
RM-618
Service Manual Level 1&2
9 Confidential • Copyright © 2010 NOKIA • All rights reserved Version 2.0

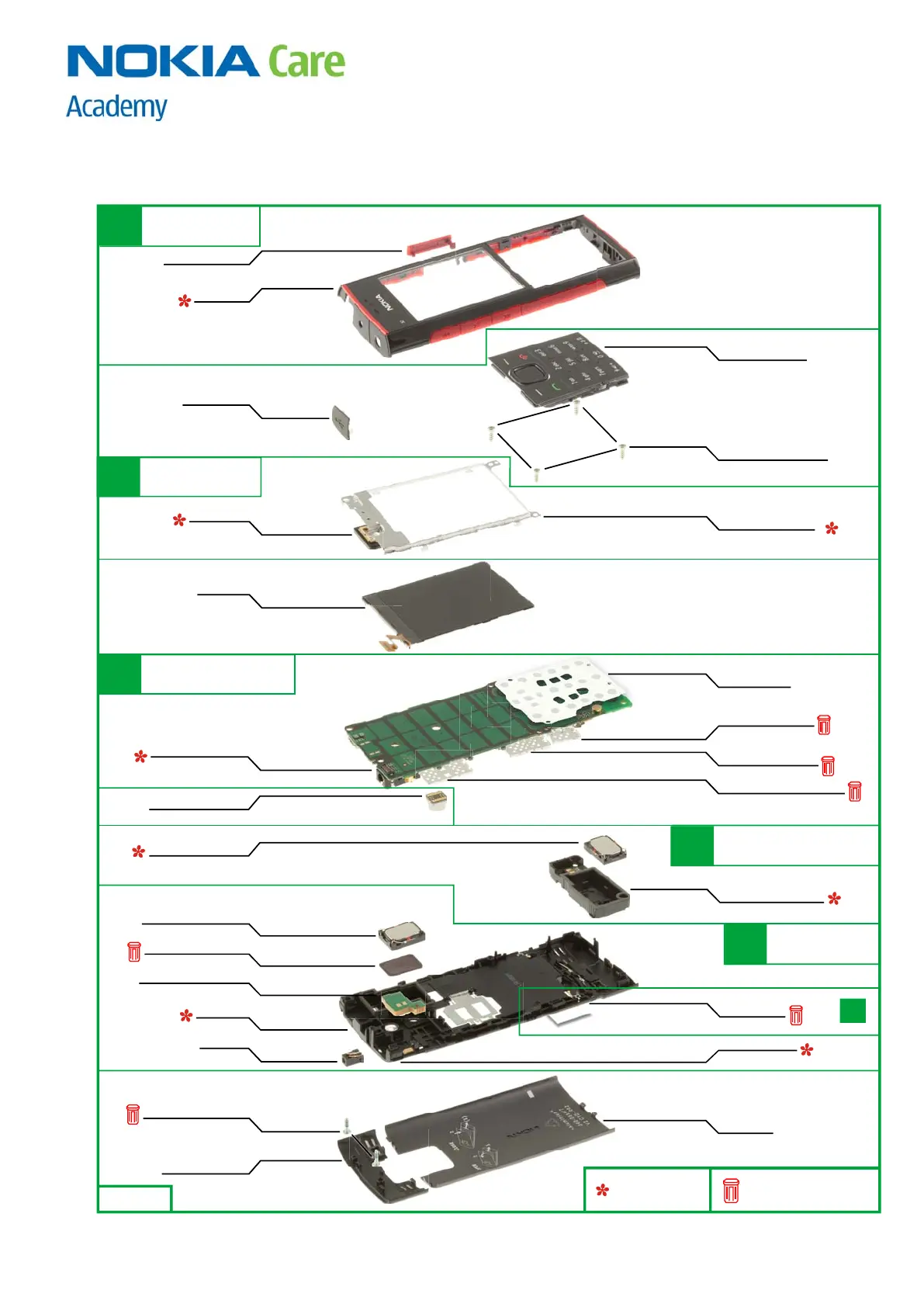

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 2.0
A3
A1
A-COVER ASSY
(I0001 - I0002)
A3
LIGHT SWAP PACKAGE
(I0009 - I0015)
A2
UI SHIELD ASSY
(I0006 - I0007)
A4
ANTENNA MODULE ASSY
(I0017 - I0018)
A5
B-COVER ASSY
(I0019 - I0024)
A-COVER
I0001
SD CARD DOOR
I0002
LIGHT SWAP PWB
I0010
IHF SPEAKER ASSY
I0017
5MPIX AF CAMERA
I0016
IHF SPEAKER 11x15
I0020
SPEAKER ADHESIVE
I0021
FLASH PWB MODULE
I0019
B-COVER
I0024
DOME SHEET
I0009
SCREWS RF1.6 X 4.5
I0005
UI SHIELD BLANK
I0006
KEYPAD PRINTED
I0004
AUDIO SHIELDING ASSY
I0011
BB SHIELDING LI
D
I0014
RF SHIELDING LID
I0012
C-COVER
I0027
FM ANTENNA
I0022
TYPE LABEL
I0015
ANTENNA MODULE
I0018
USB COVER
I0003
EARPIECE
I0007
DISPLAY
I0008
IHF COVER ASSY
I0026
SCREWS M1.6 X 5.7
I0025
DC JACK
I0023
