Nokia X3-02 Service Manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
13 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

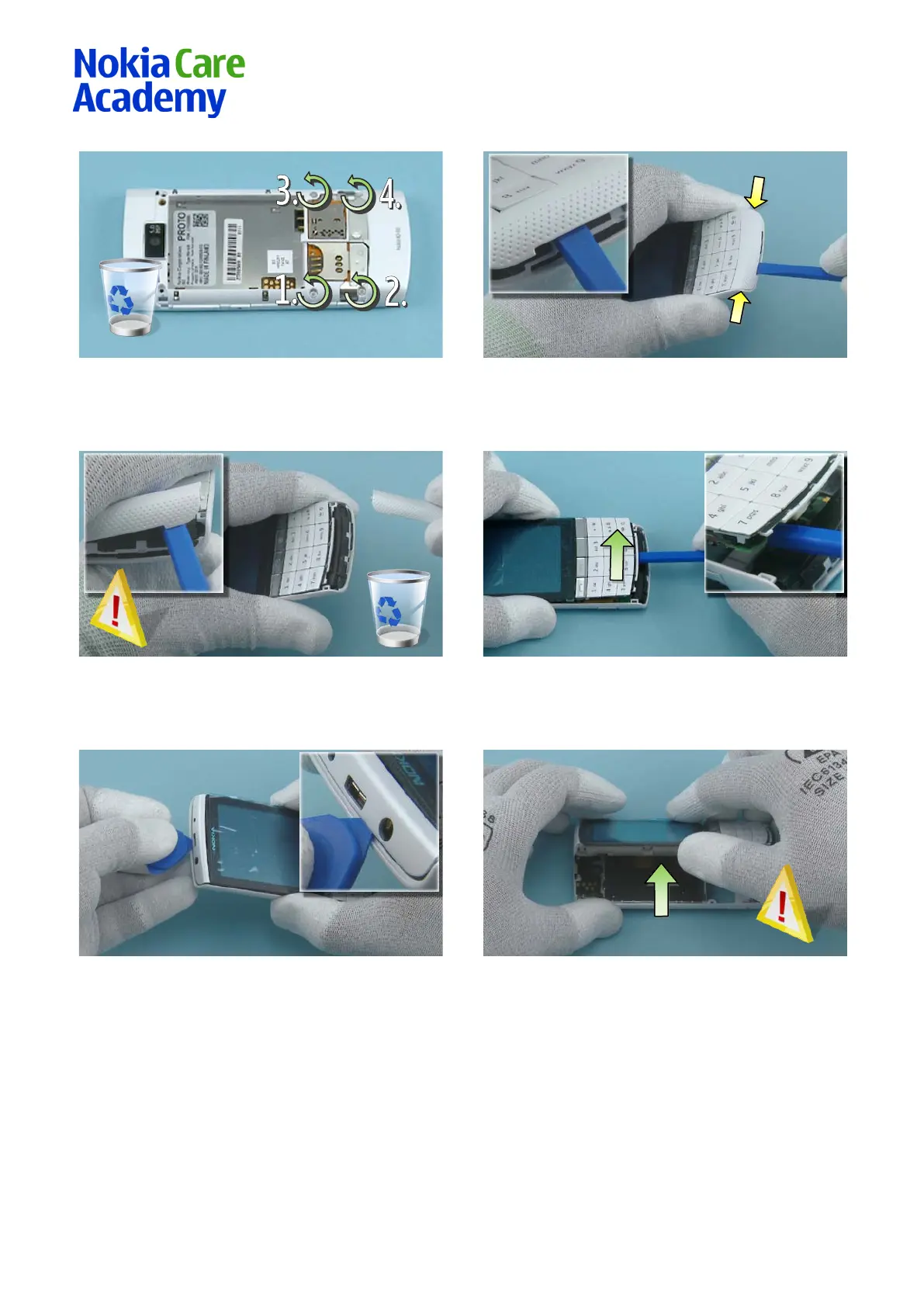

7) Unscrew the four TORX+ size 4 screws in the order
shown. Do not use them again!
8) Use the SS-93 to release the B-COVER DECO clips on
both sides.
9) Remove the B-COVER DECO. Be careful not to
damage the hooks holding the B-COVER. Do not use it
again. Discard it.
10) Use the SS-93 to release the ENGINE BOARD from
the B-COVER.
11) Release the top part of the A-COVER with the SRT-
6.
12) Carefully lift up the shown side of the phone.
