Nokia X3-02 Service Manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
12 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

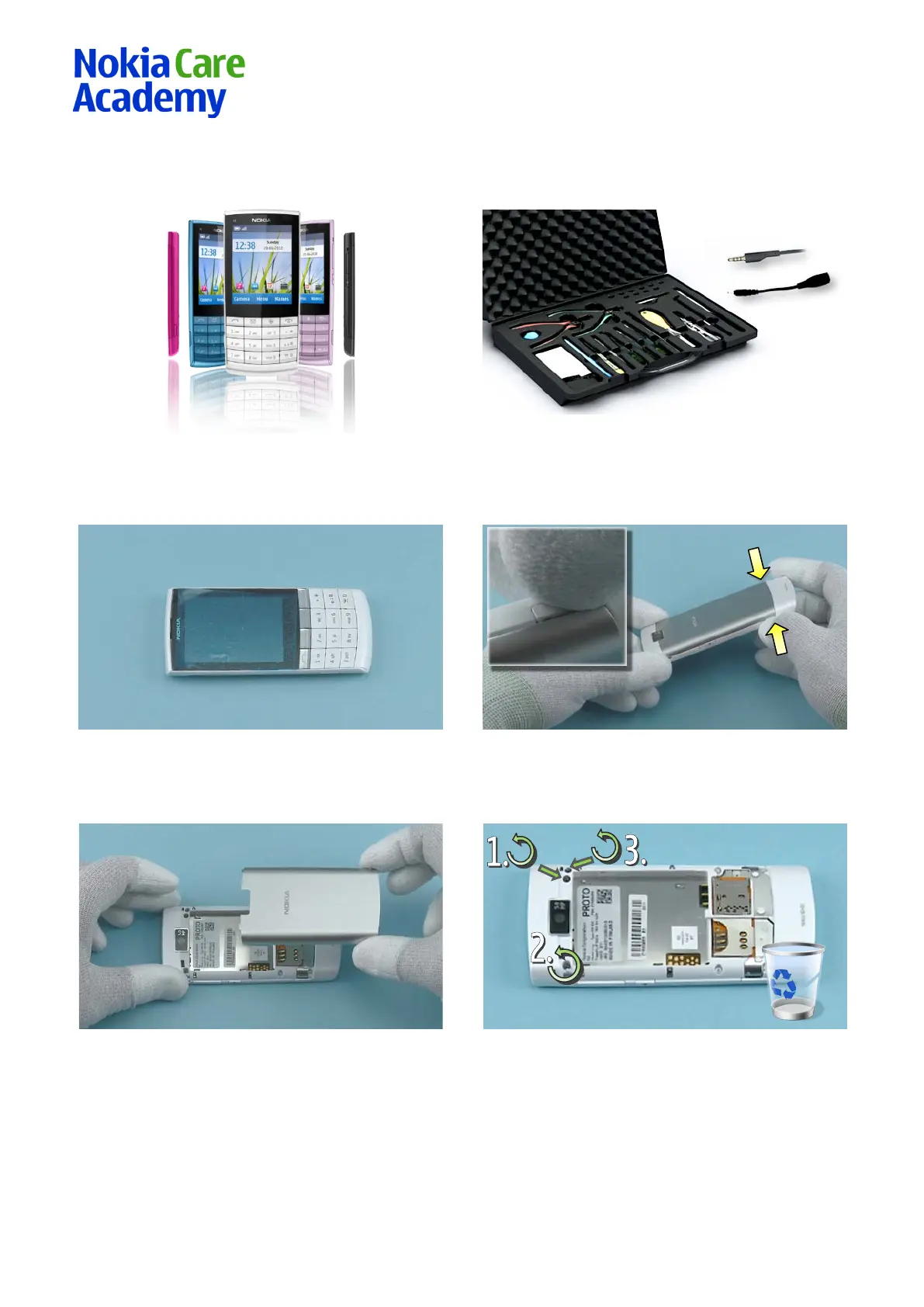

9. DISASSEMBLY INSTRUCTIONS
1) Nokia X3-02 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the AV plug and the DC plug.
3) Protect the TOUCH MODULE with a protective film.
4) Push the BATTERY COVER release buttons on both
sides.
5) Lift up the BATTERY COVER. If there is a battery
inserted remove it also.
6) Unscrew the three TORX+ size 4 screws in the
order shown. Do not use them again!

Nokia X3-02 Specifications

General

Display Type	TFT resistive touchscreen, 256K colors
Resolution	240 x 320 pixels (~167 ppi pixel density)
Internal Storage	50MB
RAM	64MB
Main Camera	5 MP
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 32
EDGE	Class 32
Status	Discontinued
SIM	Mini-SIM
Call Records	Yes
Video	Yes
Alert Types	Vibration, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Bluetooth	2.1, A2DP, EDR
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Talk time	Up to 5 h 20 min (2G) / Up to 3 h 30 min (3G)
Display Size	2.4 inches
Battery Capacity	Li-Ion 860 mAh (BL-4S)
Dimensions	106.2 x 48.4 x 9.6 mm
Weight	77.4 g
Announced	2010, September
Card Slot	microSD, up to 16 GB
Phonebook	2000 entries
WLAN	Wi-Fi 802.11 b/g
Games	Yes
Battery	Li-Ion 860 mAh (BL-4S)
Stand-by	Up to 408 h
Colors	Dark Metal, Lilac
