Nokia X3-02 Service Manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
6 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

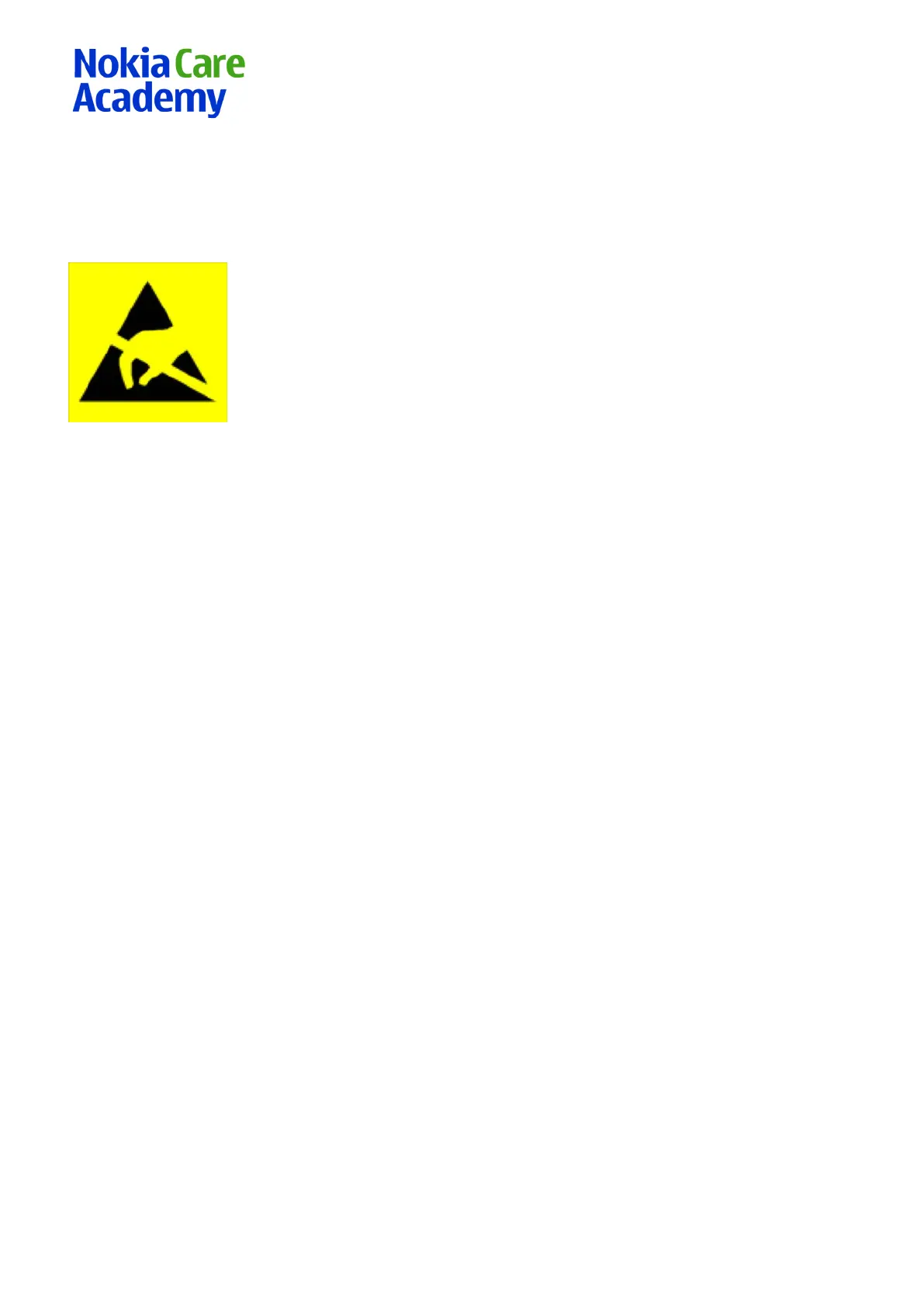

3. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against
static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia X3-02 Specifications

General

Display Type	TFT resistive touchscreen, 256K colors
Resolution	240 x 320 pixels (~167 ppi pixel density)
Internal Storage	50MB
RAM	64MB
Main Camera	5 MP
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 32
EDGE	Class 32
Status	Discontinued
SIM	Mini-SIM
Call Records	Yes
Video	Yes
Alert Types	Vibration, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Bluetooth	2.1, A2DP, EDR
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Talk time	Up to 5 h 20 min (2G) / Up to 3 h 30 min (3G)
Display Size	2.4 inches
Battery Capacity	Li-Ion 860 mAh (BL-4S)
Dimensions	106.2 x 48.4 x 9.6 mm
Weight	77.4 g
Announced	2010, September
Card Slot	microSD, up to 16 GB
Phonebook	2000 entries
WLAN	Wi-Fi 802.11 b/g
Games	Yes
Battery	Li-Ion 860 mAh (BL-4S)
Stand-by	Up to 408 h
Colors	Dark Metal, Lilac
