Nokia X3-02 Service Manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
9 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

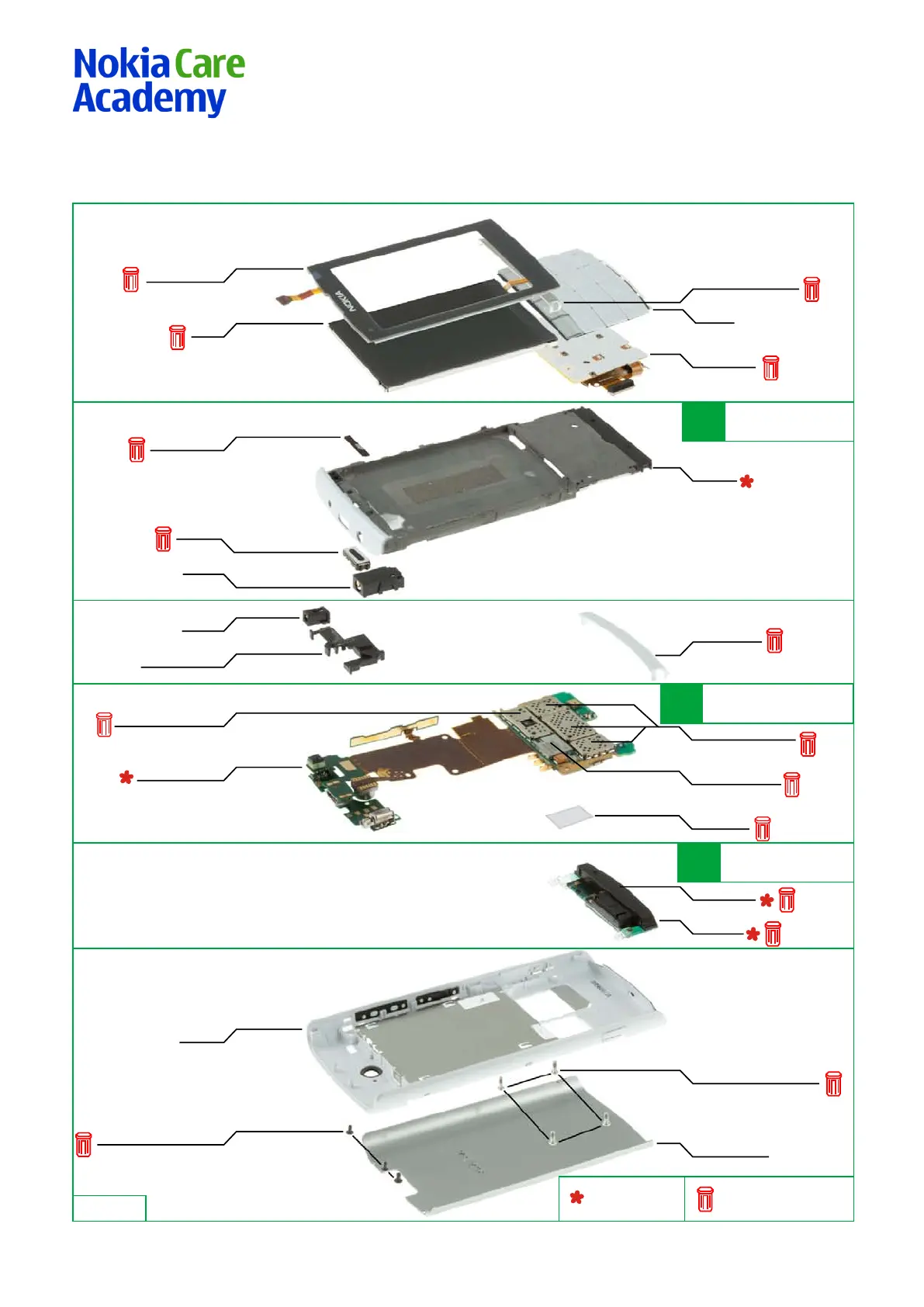

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
A-COVER ASSEMBLY
(I0006 - I0009)
A2
LIGHT SWAP PACKAGE
(I0012 - I0016)
A3
ANTENNA MODULE
(I0019, I0020)
LCD
I0004
EARPIECE MESH
I0006
MOUNTING ASSY
I0011
LIGHT SWAP PWB
I0012
B-COVER
I0017
SCREW TORX+ 4 M1.4x2.2
I0022
BATTERY COVER
I0023
AV JACK
I0009
KEYMAT
I0003
UI-FLEX ASSY
I0005
ANTENNA
I0019
TYPE LABEL
I0016
AUDIO SHIELDING LID
I0013
LINKO SHIELDING LID
I0014
BB-SHIELDING LID
I0015
SCREW TORX+ 4 M1.4x3.8
I0021
A-COVER
I0007
A-COVER BRIDGE ASSY
I0002
B-COVER DECO
I0018
IHF
SPEAKER
I0020
TOUCH MODULE
I0001
DC JACK
I0010
EARPIECE
I0008

Nokia X3-02 Specifications

General

Display Type	TFT resistive touchscreen, 256K colors
Resolution	240 x 320 pixels (~167 ppi pixel density)
Internal Storage	50MB
RAM	64MB
Main Camera	5 MP
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 32
EDGE	Class 32
Status	Discontinued
SIM	Mini-SIM
Call Records	Yes
Video	Yes
Alert Types	Vibration, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Bluetooth	2.1, A2DP, EDR
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Talk time	Up to 5 h 20 min (2G) / Up to 3 h 30 min (3G)
Display Size	2.4 inches
Battery Capacity	Li-Ion 860 mAh (BL-4S)
Dimensions	106.2 x 48.4 x 9.6 mm
Weight	77.4 g
Announced	2010, September
Card Slot	microSD, up to 16 GB
Phonebook	2000 entries
WLAN	Wi-Fi 802.11 b/g
Games	Yes
Battery	Li-Ion 860 mAh (BL-4S)
Stand-by	Up to 408 h
Colors	Dark Metal, Lilac
