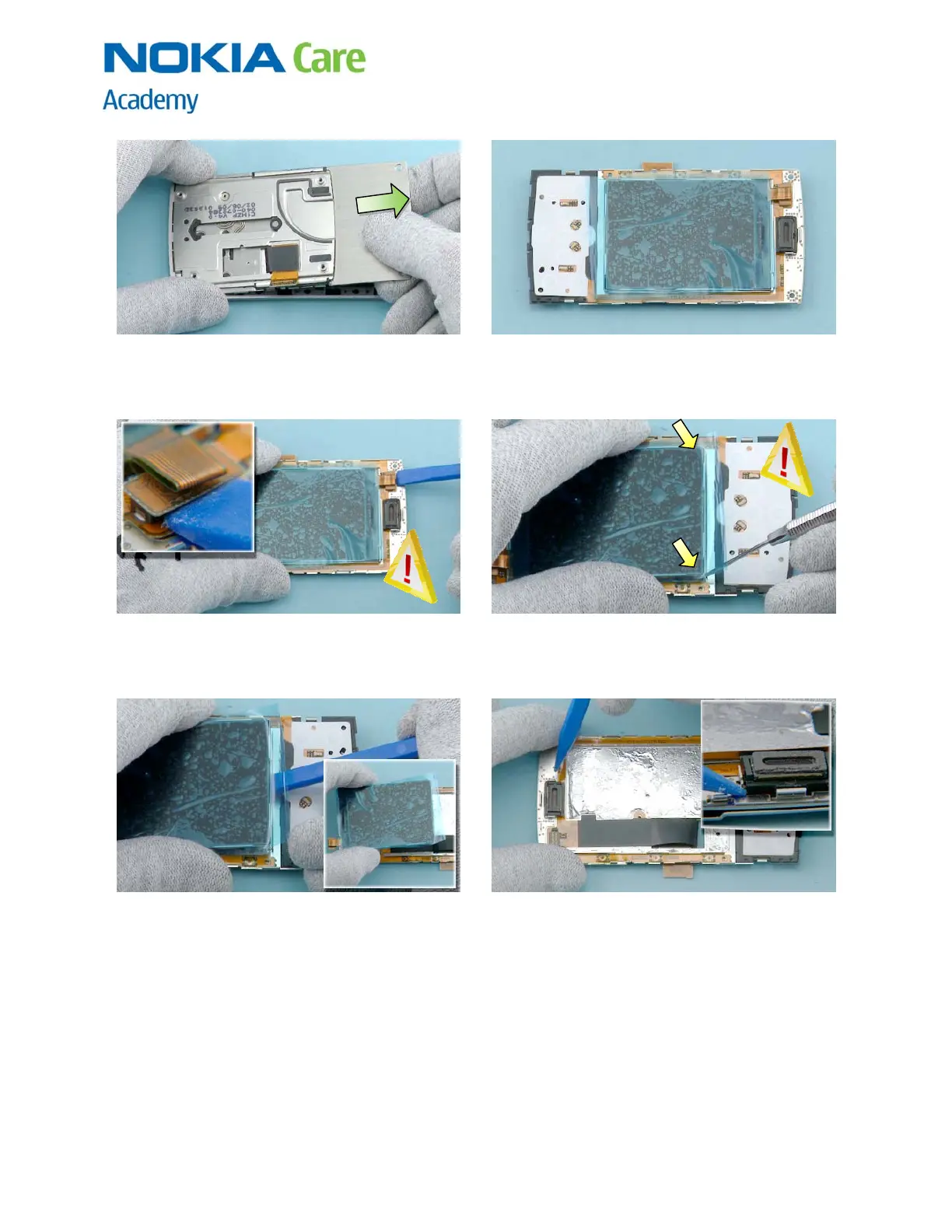

31) Remove the SLIDE MODULE ASSEMBLY in the
direction shown.
32) Protect the LCD with protective film.
33) Use the SS-93 to open the LCD CONNECTOR. While
opening the connector be careful not to damage it.
34) Use the dental tool to slightly lift up the LCD. Be
very careful not to break the LCD!
35) Use the SS-93 to loosen the adhesive
underneath the LCD. Then lift up the LCD.
36) Use the sharp end of the SS-93 to release the
EARPIECE. Remove the EARPIECE with the tweezers.
