Nokia X3
RM-540
Service Manual Level 1&2
9 Confidential
| Copyright © 2009 Nokia | All rights reserved
Version 1.0

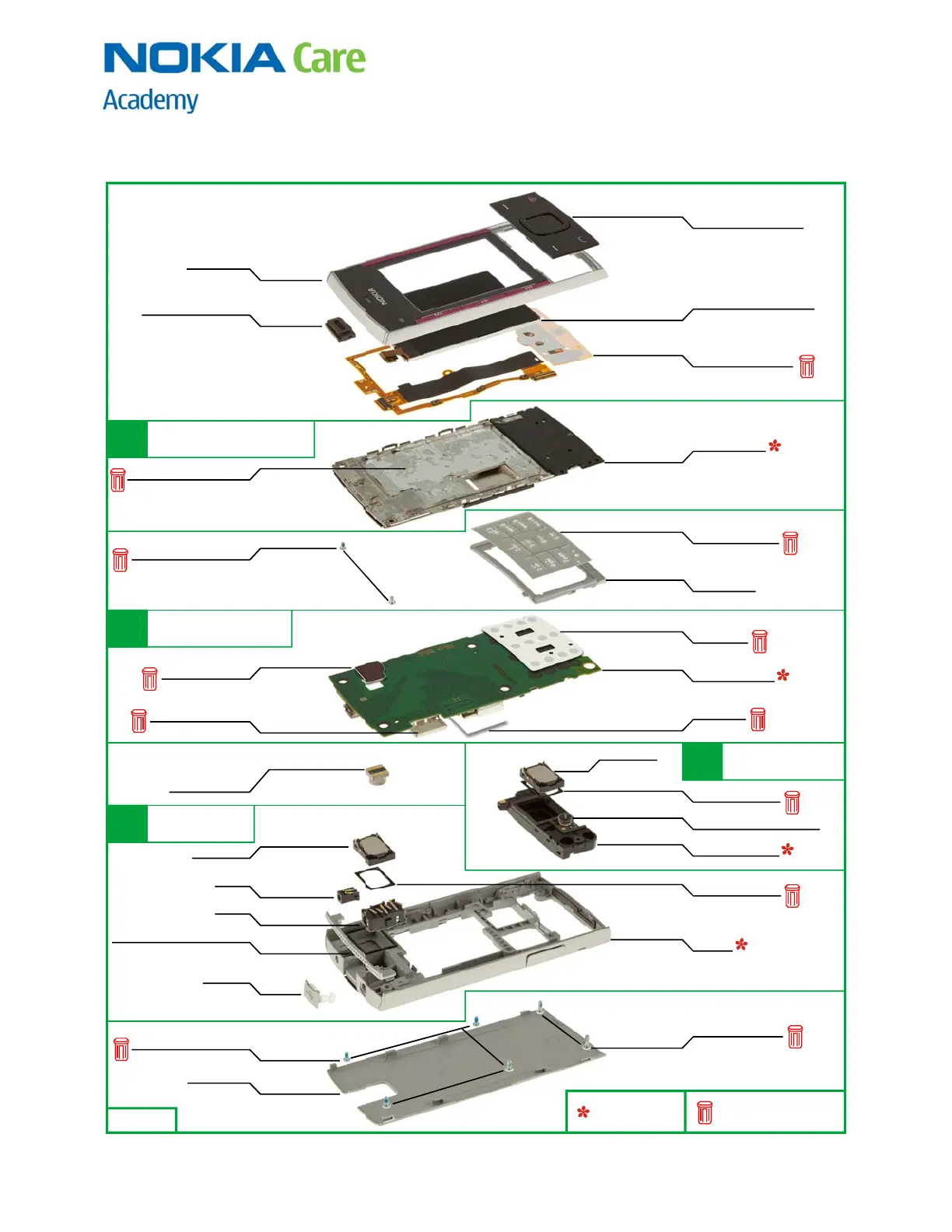

7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
SLIDER MODULE ASSEMBLY
(I0102 - I0103)
A-COVER ASSY
I0001
EARPIECE MODULE ASSY
I0004
CONDUCTIVE TAPE DISPLAY
I0102
SCREW M1.4x2.2 TORX+ 5
I0005
SPEAKER MESH TOP
I0206
DC JACK
I0210
AV JACK
I0211
SPEAKER OUTL TRIM TOP ASSY
I0209
USB DOOR
I0214
SCREW M1.6x3.0 TORX+ 6
I0221
F-COVER ASSY
I0222
IHF SPEAKER
I0212
CAMERA MODULE
SMIA65 3.2 EDOF
I0206
B2B CONN SHIELD LID
I0205
A1
LIGHTSWAPPACKAGE
(I0203 - I0207, I9998)
A2
D-COVER ASSY
(I0209 - I0215)
A3
ANTENNA MODULE
(I0216 - I0219)
A4
FUNCTION KEYMAT ASSY
I0002
LCD TFT a-Si 240x320 COG
I0003
SLIDER MODULE
I0103
TYPE LABEL
I0207
SCREW M1 TORX+ 6
I0220
IHF SPEAKER
I0217
NUMERIC KEY ASSY
I0201
DOMESHEET
I0203
LIGHT SWAP PWB
I0204
SPEAKER ADHESIVE
I0218
ANTENNA MODULE
I0219
SPEAKER ADHESIVE
I0213
D-COVER
I0215
CLAPTON EMC MICROPHONE
I0216
E-COVER ASSY
I0202
UI FLEX MODULE ASSY
I0101
