Nokia X3 - Assembly Hints

Nokia X3
RM-540
Service Manual Level 1&2
19 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0

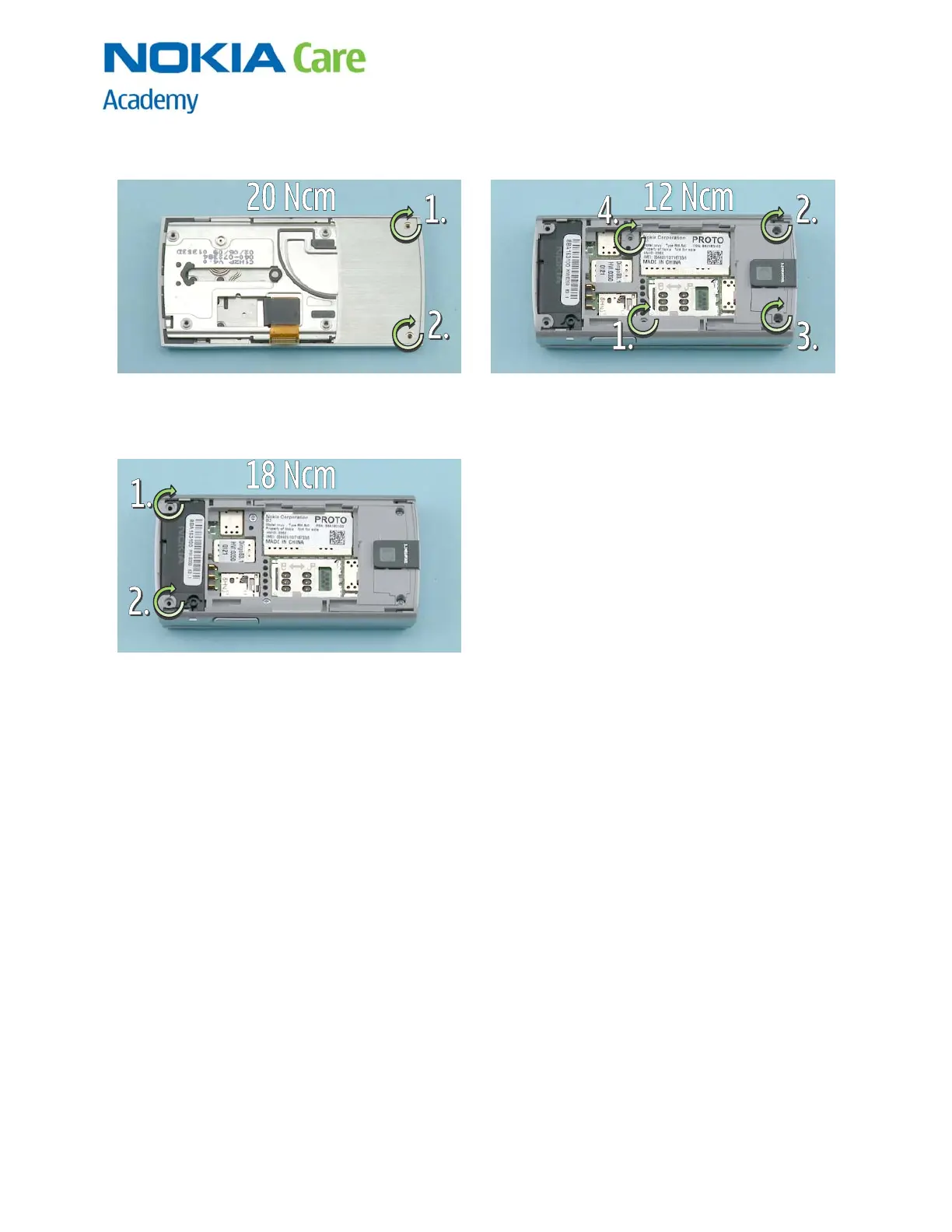

11. ASSEMBLY HINTS
1) Tighten the two TORX+ size 5 screws to the
torque of 20 Ncm in the order shown.
2) Tighten the four TORX+ size 6 screws to the
torque of 12 Ncm in the order shown.
3) Tighten the two TORX+ size 6 screws to the
torque of 18 Ncm in the order shown.
