Nokia X3 - Disassembly Instructions

Nokia X3
RM-540
Service Manual Level 1&2
12 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0

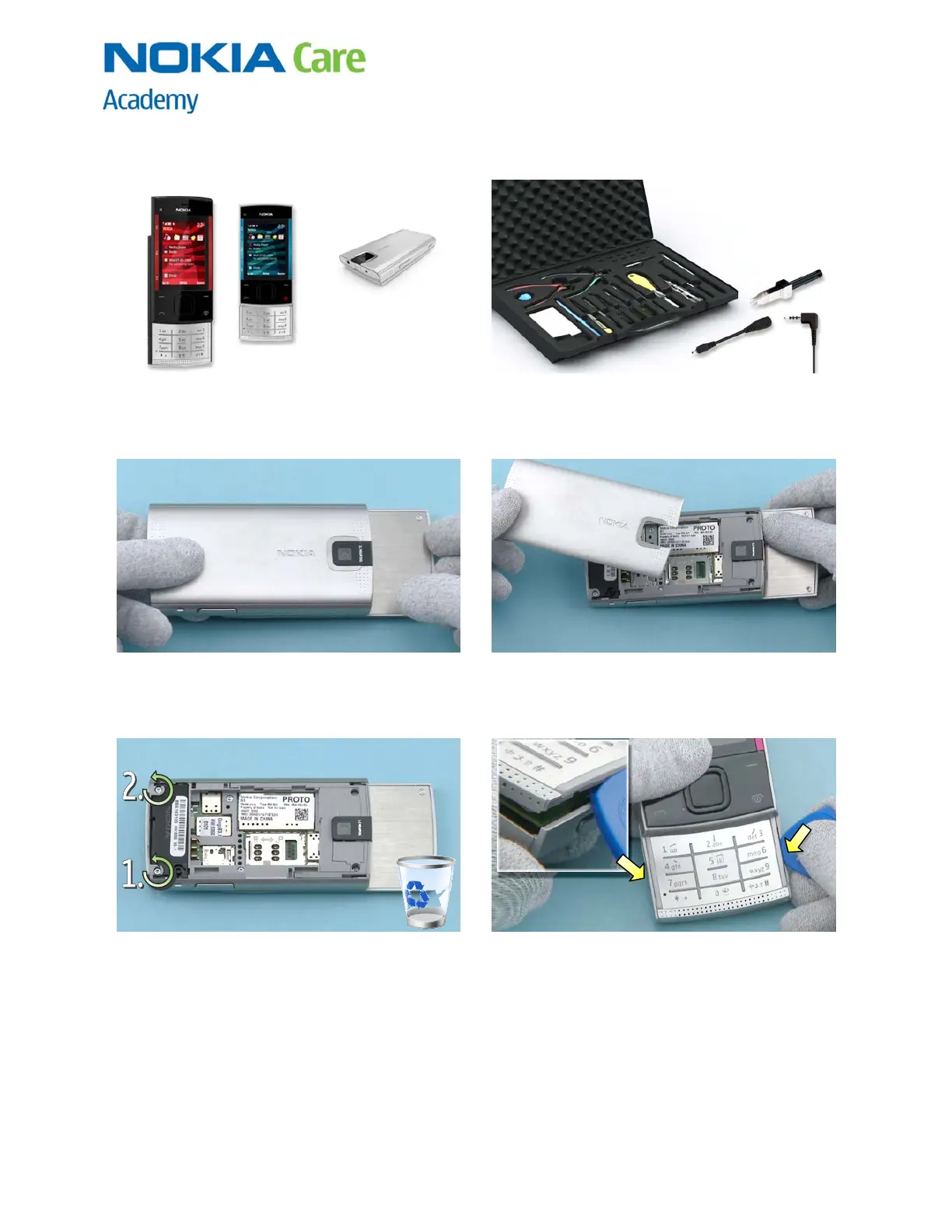

10. DISASSEMBLY INSTRUCTIONS
1) Nokia X3 disassembly. 2) For disassembling you need the Nokia Standard
Tool kit version 2 plus the camera removal tool SS-
88. You will also need a DC and an AV plug.
3) Slide the phone open and release the battery
cover.
4) Remove the battery cover. If there is a battery
inserted, remove it also.
4) Unscrew the two TORX+ size 6 screws in the order
shown. Do not use them again. Discard them.
6) Use the SRT-6 to release the NUMERIC KEYMAT
ASSY and the E-COVER ASSY.
