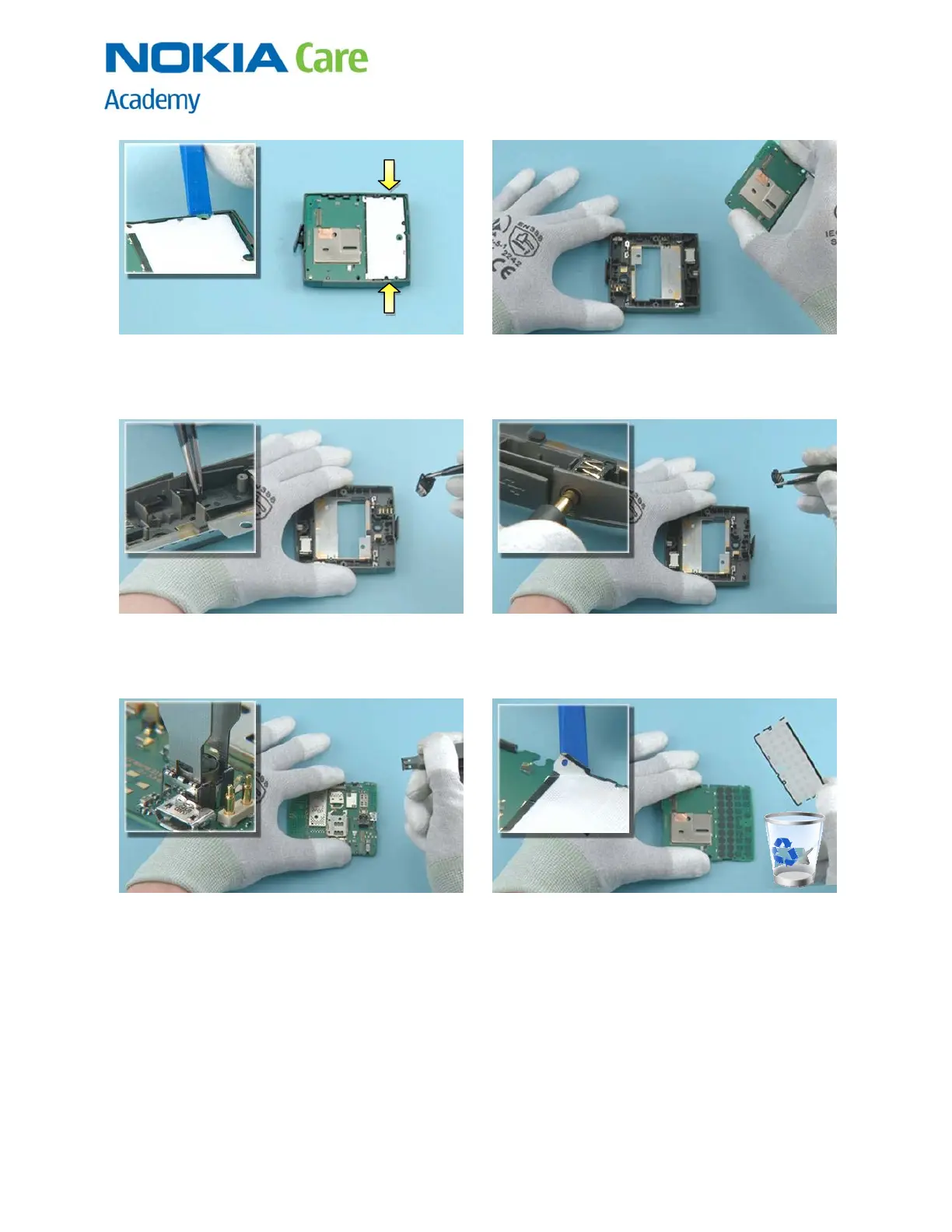

31) To detach the engine board, release the two
clips on both sides with the SS-93.
32) Remove the engine board.
33) Use the tweezers to remove the GPS/WLAN
ANTENNA.
34) Use the AV plug to lift up the AV jack and
remove it with tweezers.
35) Use the camera removal tool SS-88 to remove
the camera.
36) Release the DOMESHEET with the SS-93, and
peel it off. Do not use it again, discard it.
