• Arrange the battery connector behind the polystyrene cheek
pad.
• Position the wiring in the rear part of the helmet (Fig. 34).
4.3. Microphone positioning
FLIP UP OR JET HELMETS
NB: The parts required for positioning the microphone (microphone clamp and screw) can be found
inside the helmet on the left side of the internal shell.
Should the helmet not contain these parts, the microphone clamp and screw are available to buy
separately from your Nolangroup dealer.

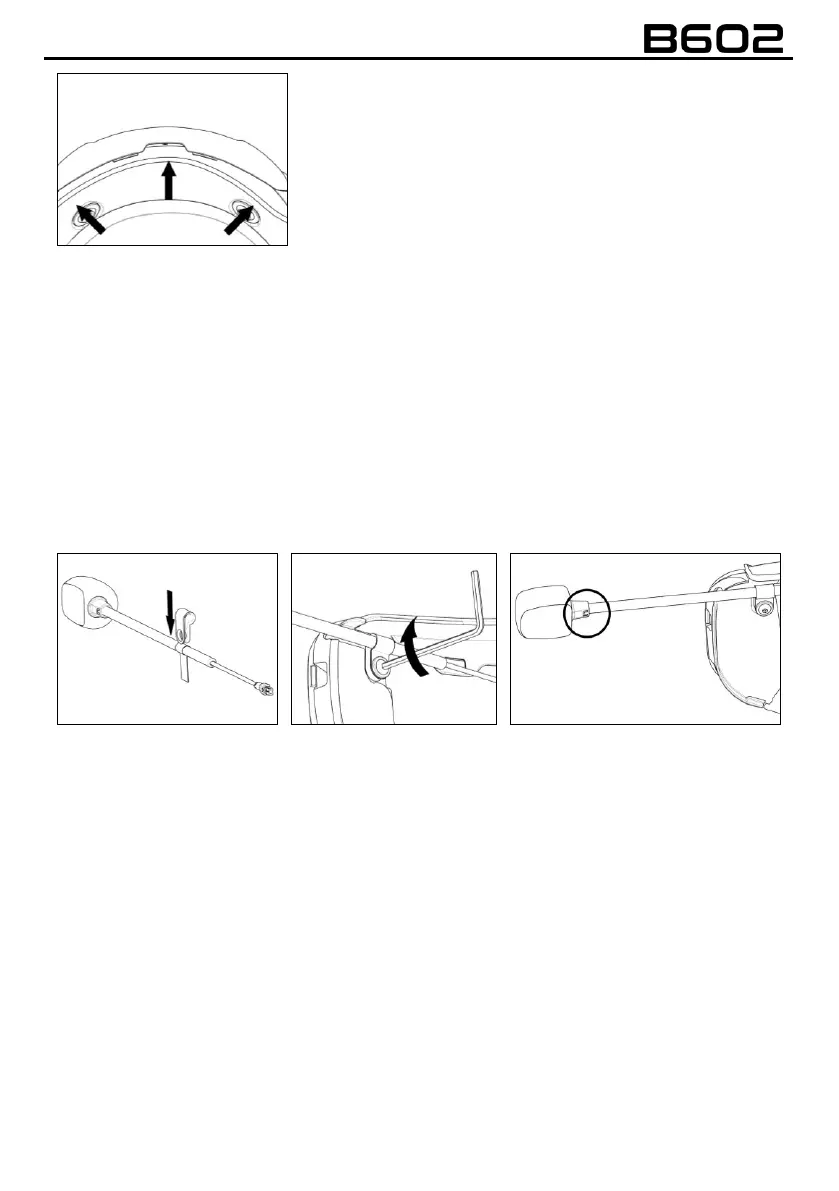

• Insert the microphone clamp on the arm of the microphone (Fig. 35).
• Position the microphone on the left side of the helmet, screwing in the screw in the small shell
frame (Fig. 36). Make sure that the side of the microphone with the caption “n” is facing the inside
of the helmet (Fig. 37).
N.B.: On certain helmets, the housing for the microphone rod must be created by cutting out the
helmet border gasket along the pre-cut area.
FULL-FACE HELMETS
• Take the polystyrene check pad (left side) and position the microphone in the special housing.
Make sure that the side of the microphone with the caption “n” is facing the inside of the helmet.
• Connect the microphone to the connector coming out of the e-box (Fig. 38).
• Position the left-hand side speaker in the cheek pad housing and secure it using the specific
adhesive (Fig. 39).
• Reposition the left polystyrene cheek pad in its housing.
ONLY FOR FULL-FACE HELMETS: Insert the chin strap into the polystyrene cheek pad loop.
