Ground wire
ASSEMBLY
8a 8b
8c
“J” hook
zip tie
Assembly
5

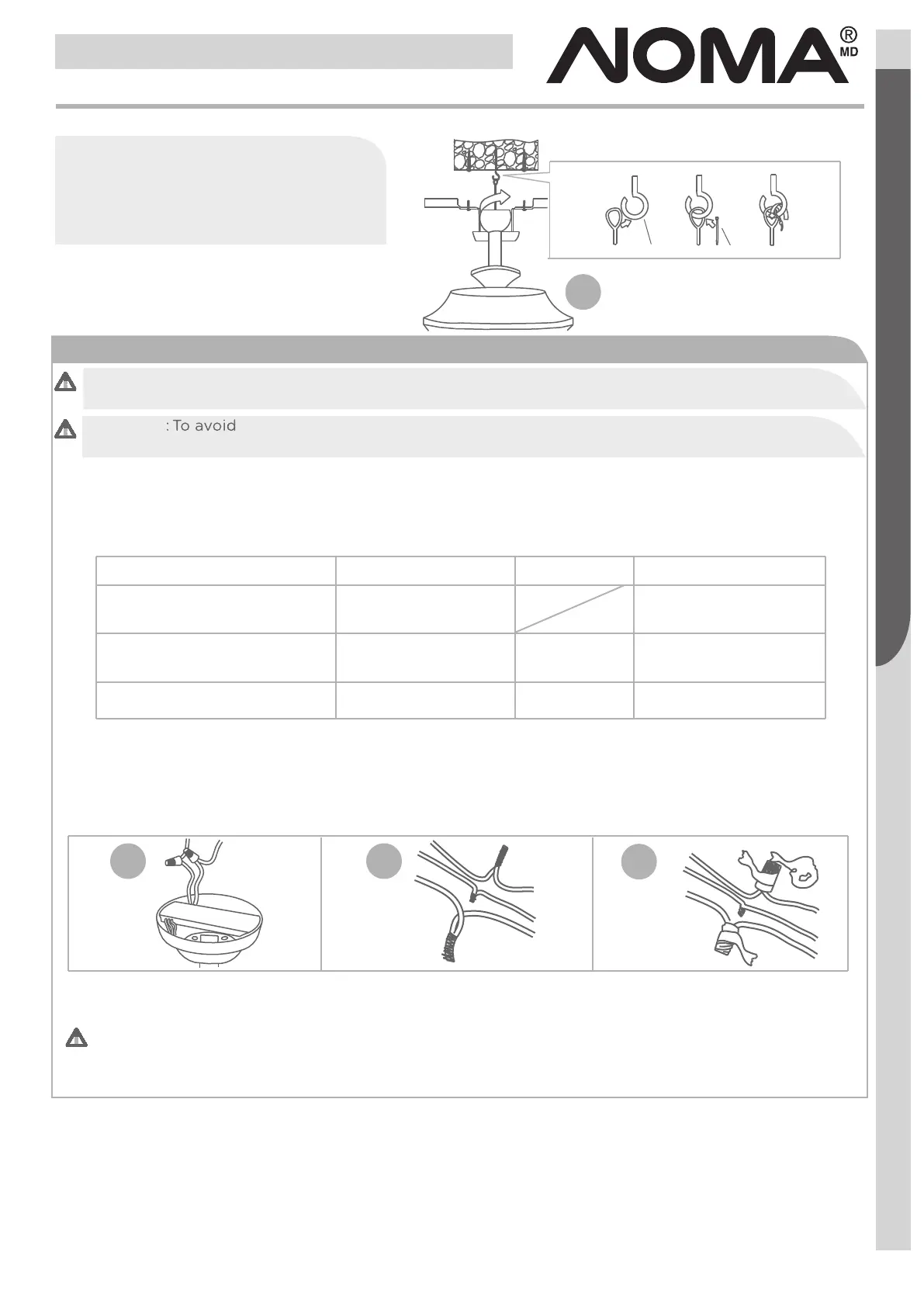

NOTE: For added security, attach safety
cable from fan unit to “J” hook in outlet
box. Secure by looping zip tie through
safety cable and “J” hook. Tighten zip
tie securely (see Fig.7b).
4. Wiring instructions
IMPORTANT: If you are not sure if the electrical outlet box and fan are grounded, contact a
licensed electrcian for advice. They must be grounded for safe operation.
WARNING
before wiring.
Your outlet box should have 3 wires. If they are not there, contact a certified electrician to help set up
this part. Match up and connect wires from the ceiling fan to the wires from your outlet box according
to the chart below:
Connect with wire connector
Ground & ground
Motor, light & live
Neutral & neutral
On fan
2 ground wires (green)
Motor wire (black)
Light wire (blue)
Neutral wire (white)
On receiver
Liv
Neutral wire
(white)
e wire
(black)
In outlet box
(typically copper or green)
Live wire
(typically black)
Neutral wire (white)
. When wires are matched up, connect them by twisting frayed ends together (see Fig. 8a).
. Screw wire connectors (3 are provided) onto the tops of the twisted wires (see Fig. 8b).
. Fasten them with electrical tape (see Fig. 8c).
WARNING: Be sure no bare wire or wire strands are visible after making connections. Place
green and white connections on opposite side of box from the black and blue (if applicable)
connections.
