9100 SERIES PARTS LIST - PAGE 7

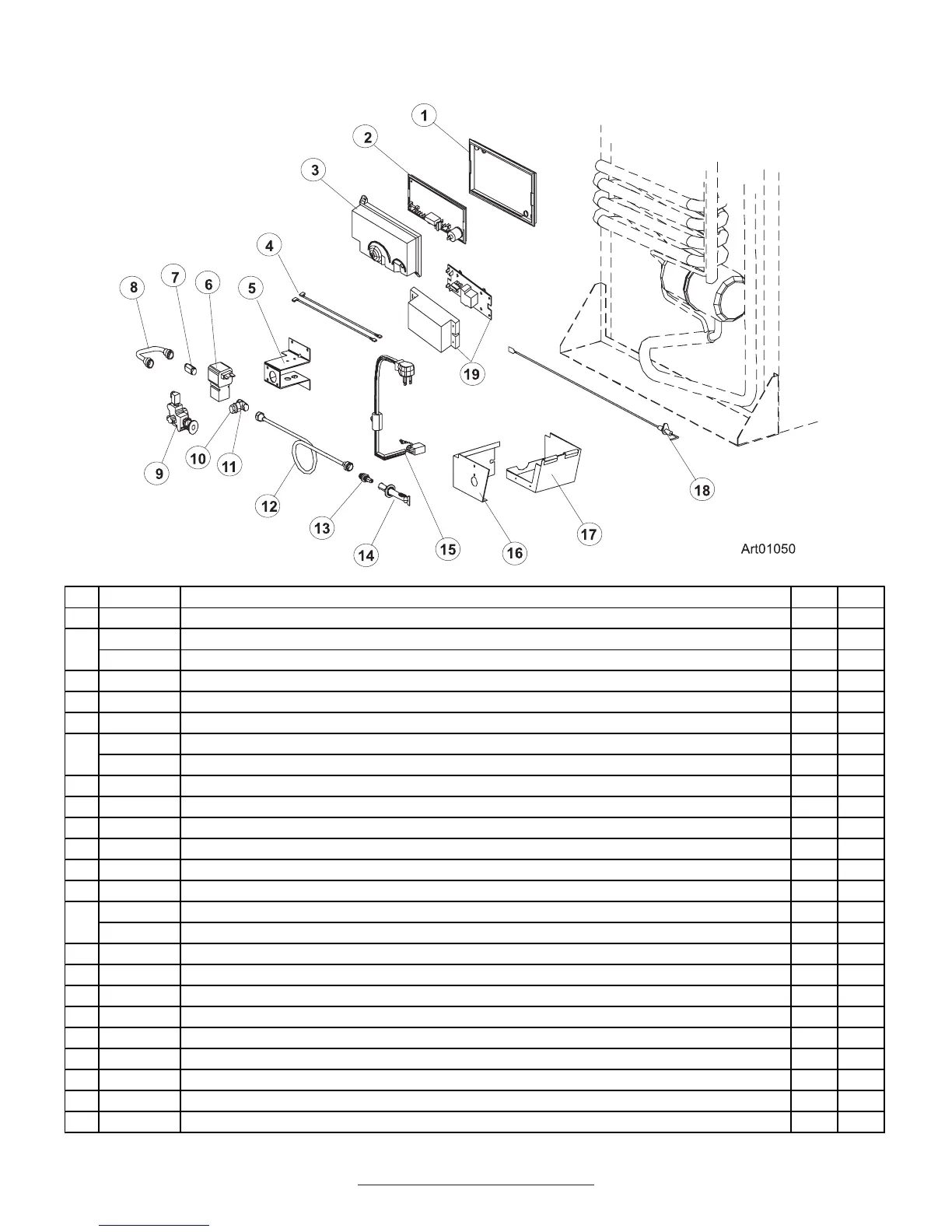

CONTROLS - REAR VIEW - 9100 SERIES
NO. PART # DESCRIPTION 916 918
1 618186 BASE-POWER BOARD XX
2 618574 POWER BOARD-EG2 (USE 625386) EG2 EG2
618575 POWER BOARD-EG3 (USE 625387) EG3 EG3
3 618185 COVER-POWER SUPPLY XX
4 618287 WIRE-WHITE/6"/GAS VALVE (USE 621448) X X
5 61694022 BRACKET-MOUNTING/GAS VALVE X X
6 61551822 GAS VALVE-ASCO (USE 621444) XX
621444 KIT-GAS VALVE/BURNER TUBE ASSY X X
7 61546822 CONNECTOR-MALE (NOT SHOWN) XX
8 61694622 UNION TUBE (NOT SHOWN) XX
9 61694922 MANUAL SHUT OFF VALVE ASSY-KINCO BALON (USE 621444) X X
10 61445322 PLUG-1/8"/FOR PRESSURE TAP XX
11 61594422 PRESSURE TAP XX
12 618252 BURNER TUBE XX
13 618283 ORIFICE-JEWELED/.015" (USE 621957) X
618284 ORIFICE-JEWELED/.0155" (USE 621957) X
14 61705222 BURNER ASSY-5 SLOT (USE 621957) X X
15 61554422 CORD-AC POWER/BLACK XX
16 61712637 COVER ASSY-BURNER BOX XX
17 61695322 BASE-BURNER BOX XX
18 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25" X X
19 618516 DAUGHTER BOARD-EG3 (NOT SHOWN) (USE 625387) EG3 EG3
NS 618606 WIRE-EG3/12 VOLT (NOT SHOWN) EG3 EG3
NS 618602 WIRE-EG3/GROUND (NOT SHOWN) EG3 EG3
NS 618605 WIRE-EG3/SENSE (NOT SHOWN) EG3 EG3
To Next Page
