SERVICE MANUAL
5
www.norcold.com
EXPLODED VIEW

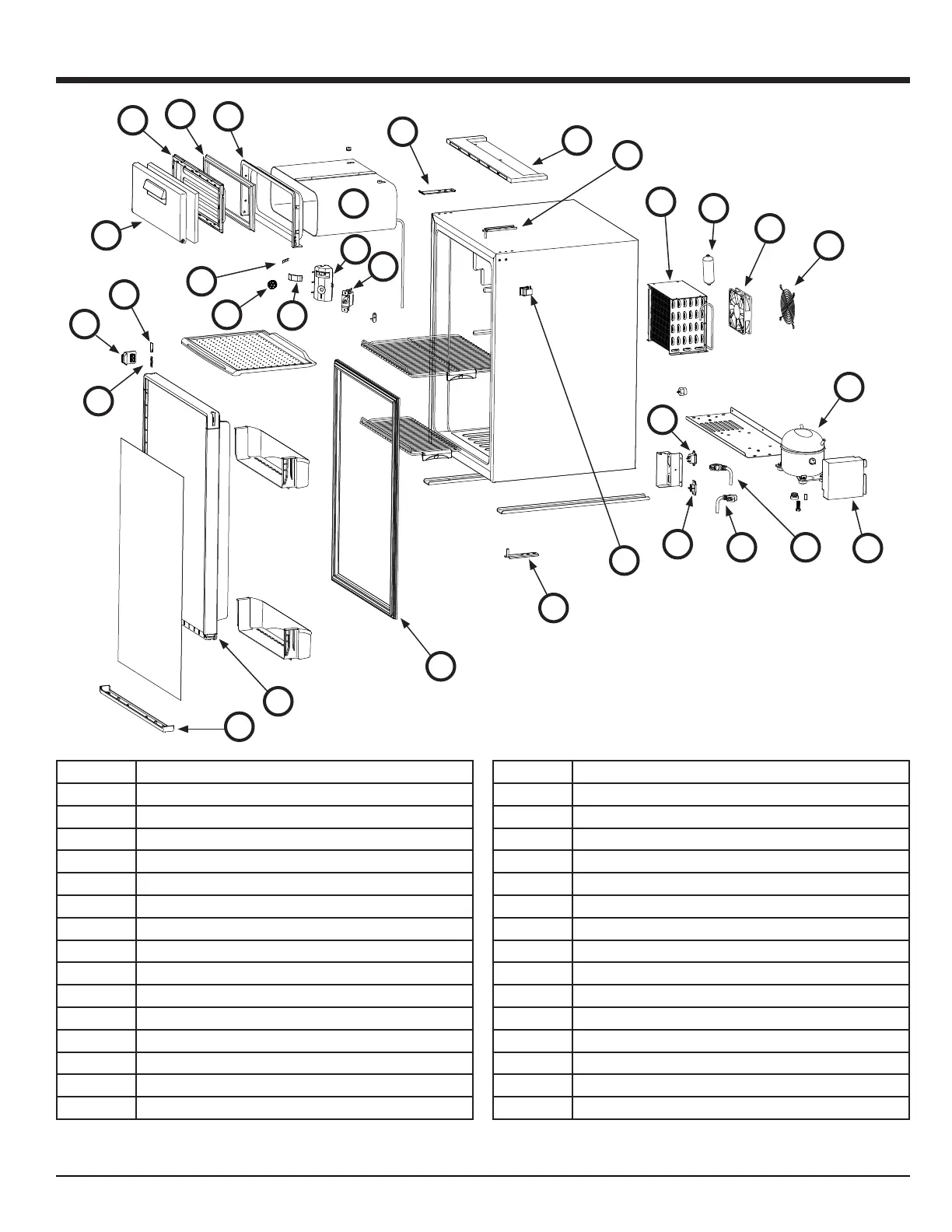

Fig. 1 - Exploded View
No. Description
A Thermostat
B Thermostat Box
C Thermostat Knob
D LED Cover
E LED Light
F Evaporator
G Grill
H Condenser
I Filter
J Fan
K Fan Cover
L Compressor
M Compressor Controller
N AC Power Cord
O DC Power Cord
No. Description
P AC Socket
Q DC Socket
R Door Switch
S Door Hinge (2x)
T Door Lock Panel
U Block
V Sliding Door Lock
W Door Lock Spring
X Freezer Door
Y Freezer Door Inner Liner
Z Freezer Door Gasket
1 Evaporator Trim
2 Door Cap
3 Door
4 Door Gasket
NOR000870A
A
C
B
D
E
G
F
H
I
M
J
N
Q
U
R
V
K
O
L
P
S
W
T
X
Y
1
Z
2
3
4
S
