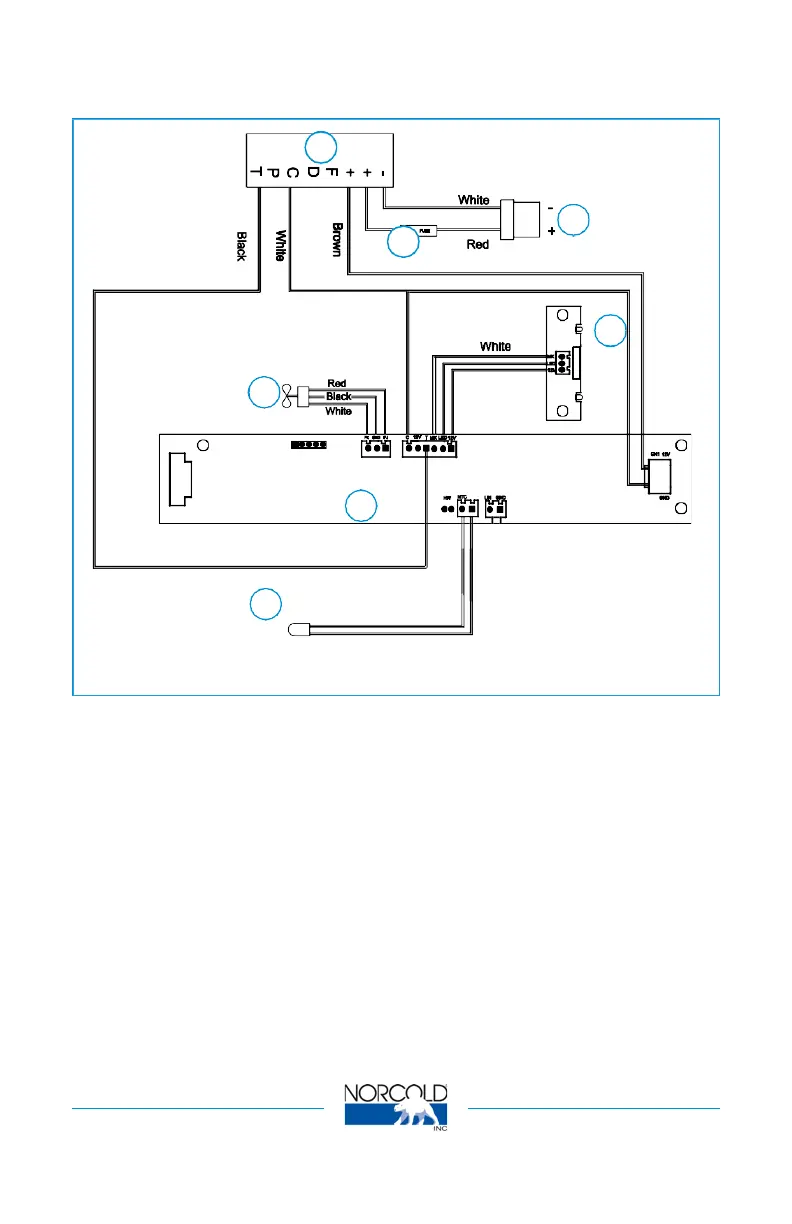

Wiring diagram:
1.
Main PCBA cooling unit
2.
Fuse 15 A
3.
Input power 12V DC
4.
LED module
5.
Interior refrigerator thermistor
6.
Display module
7.
Fan cooling unit
N2090
1
2
3
4
7
6
5
5
