5. Position and placement
•

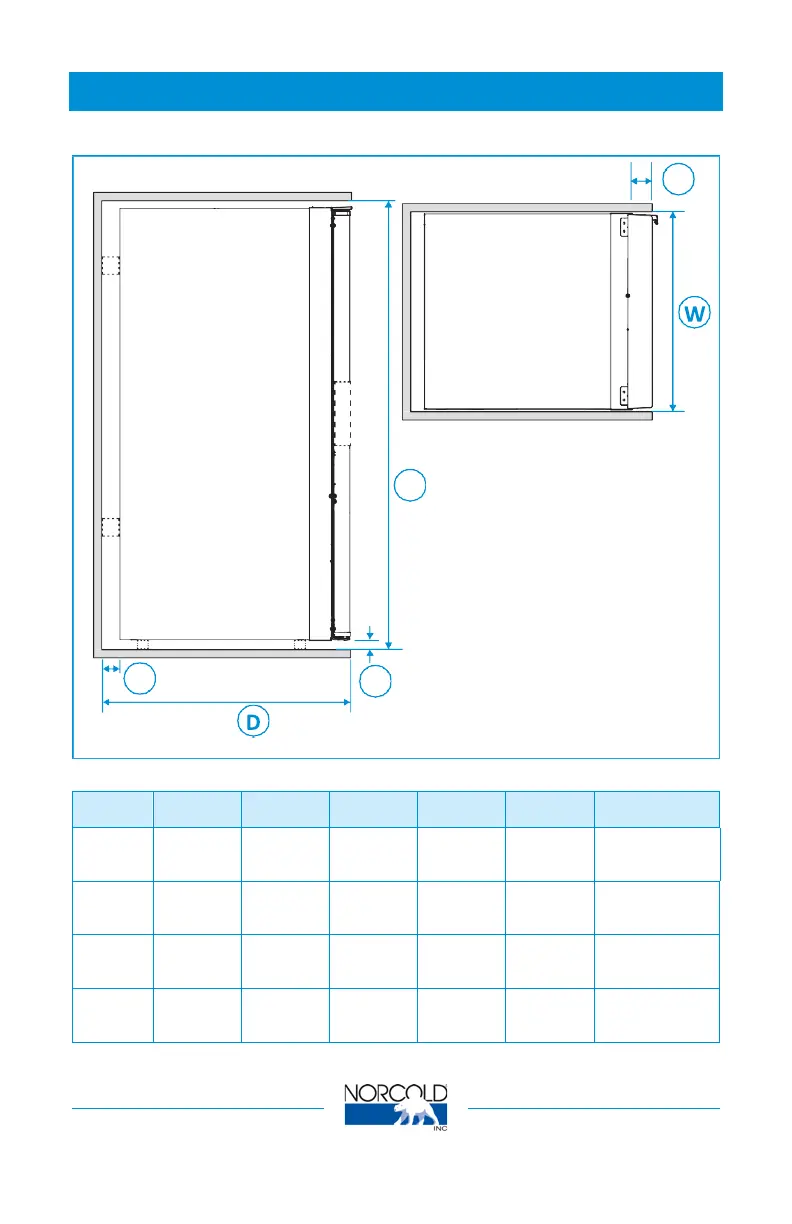

Use the mounting dimensions as shown below.
Table 1: Mounting dimensions
Model H W D FL FH A
N2090
38.7in
[982mm]
16.5in
[420mm]
19.9in
[506mm]
0.8in
[21mm]
0.8in
[20mm]
0.8in
[20mm]
N2152 59.2in
[1504mm]
16.5in
[420mm]
22.3in
[567mm]
1.7in
[42mm]
1.1in
[28mm]
1.6in-2.4in
[40mm−60mm]
N2160 49.2in
[1249mm]
20.7in
[527mm]
22.2in
[563mm]
2.2in
[55mm]
0.1in
[3mm]
0.2in
[5mm]
N2175 49.2in
[1249mm]
20.7in
[527mm]
23.7in
[613mm]
2.2in
[55mm]
0.1in
[3mm]
0.2in
[5mm]
FL
H
A
FH
