Key Refrigerator Dimensions

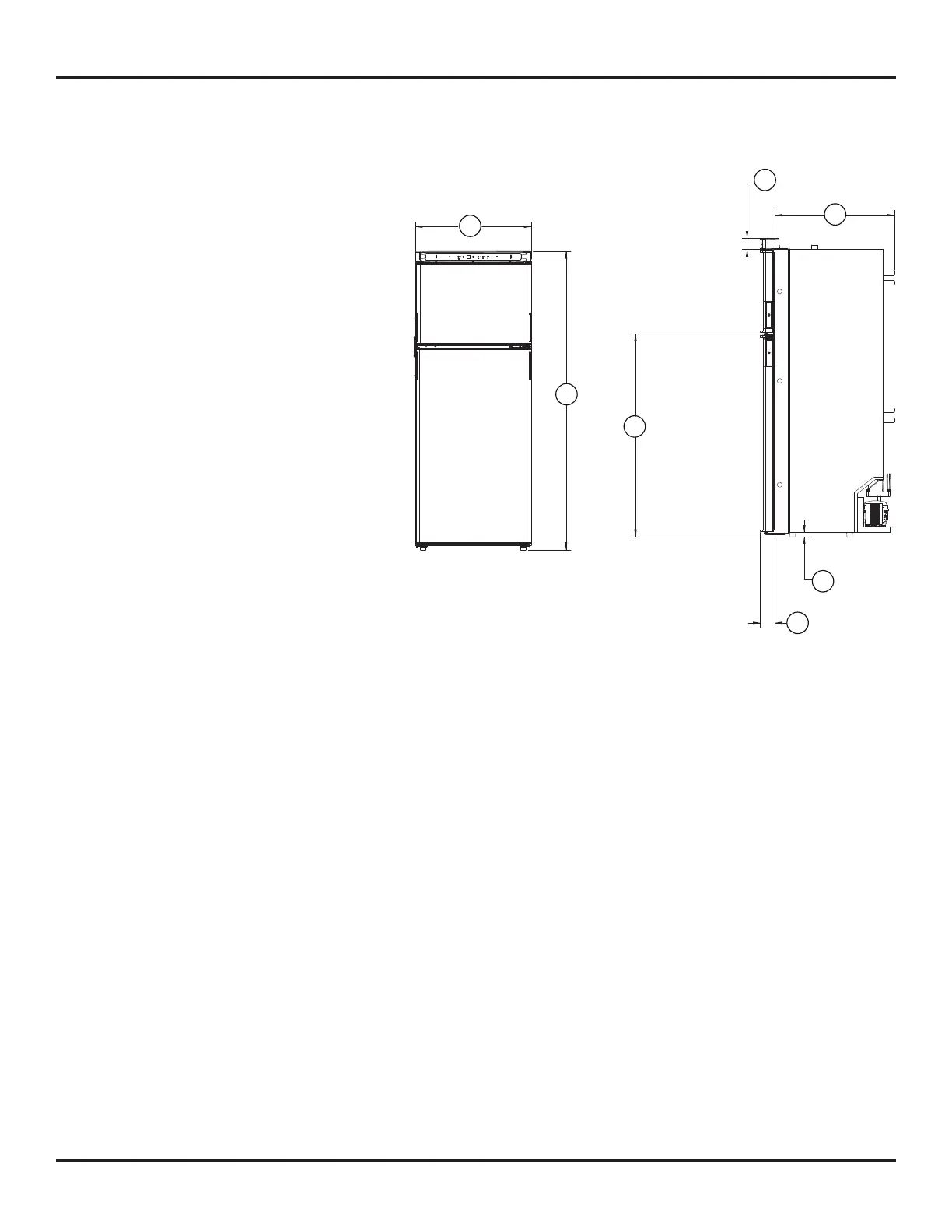

These key refrigerator dimensions are for your reference as necessary (See Art02741).
Refrigerator cabinet width:
23.31 in................................... 1
Refrigerator cabinet height:
N10DC 59.85 in. ............................ 2
N8DC 52.85 in ............................. 2
Refrigerator top to control top:
2.10 in..................................... 3
Enclosure depth:
24.00 in................................... 4
Refrigerator bottom feet to middle handles:
N10DC 40.74 in. ............................ 5
N8DC 33.74 in ............................. 5
Refrigerator bottom to bottom of feet:
0.87 in..................................... 6
Enclosure front to door front:
2.94 in..................................... 7
2
1
3
4
5
6
7
ART 02741
