Installation Manual 6

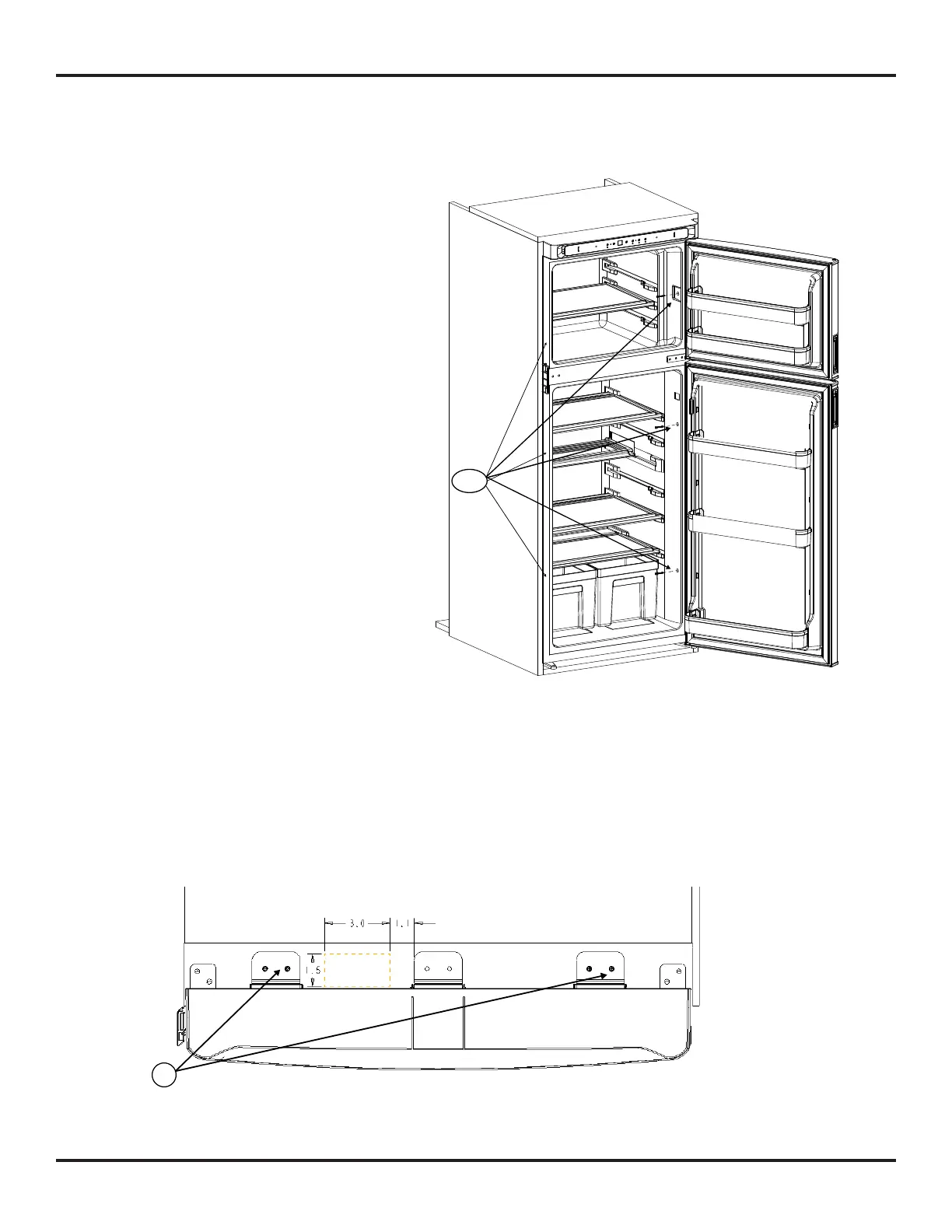

1. Fasten the refrigerator into the enclosure. (See Art 02736):
- Push the refrigerator fully into the enclosure opening.
- Install shims between enclosure wall and refrigerator to prevent excessive bowing of refrigerator cabinet walls when installing
mounting screws.
- Install 6 provided mounting screws, 3 on each side.
- Install hole plugs to cover screw holes.
Safety Strap Mounting (optional):
- One of the screws [1] fastening the control bracket may be removed and reinstalled to fasten the strap or cable. (See Art02757)
- Alternatively, a screw may be driven into the breaker in the specied 3 inch by 1.5 inch area shown..
- Any strap or cable should be routed away from the wiring on the top of the refrigerator.
Install the Refrigerator
ART 02736
121
1
ART 02757
To Next Page
