Norcool Corner fridge - Technical Specifications and Functions; Dimensions and Technical Specification; Appliance Functions

Dimensions and technical specication
External dimensions 1015mm x 1015mm
External height Integrated: 2095mm-2145m
(adjustable feet)
Freestanding: 1975mm
Usable volume 1200l
Temperature range 2,5 - 15 °C
Lighting Neon tube F30W/133 Cool
White 26mm diameter
Defrosting Automatic
Insulation Polyurethane foam, non-CFC
Cooling agent R134A
Door hinging Right or left
when installing
Weight Approx. 145kg
Max. weight on door 45 kg incl. stainless steel
panels and content
Shelves Five hardened glass shelves
four pairs of wire shelves and
one pair of wire baskets.
Cable length 3,6m
Compressor Danfoss
Volt/Hz 220-240V AC 50 Hz
Functions
Light, fan and compressor:
Light comes on automatically, compressor and internal fan (evaporator fan) will stop when door is
opened. This saves energy and prevents the cold air being blown out through the open door. The
light goes off and the evaporator fan will restart when the door is closed.
Temperature:
Temperature range is 2.5 °C-15 °C. The thermostat is default set to approx. 5 °C.
The thermostat dial is located in the top right hand corner of the inside back wall – see fig. 3 item
c. To increase the temperature (warmer) turn thermostat dial anticlockwise. To decrease the
temperature (colder) turn thermostat dial clockwise.
Defrosting:
Automatic defrosting for 20 minutes every 6 hours. This avoids the need for manual defrosting.

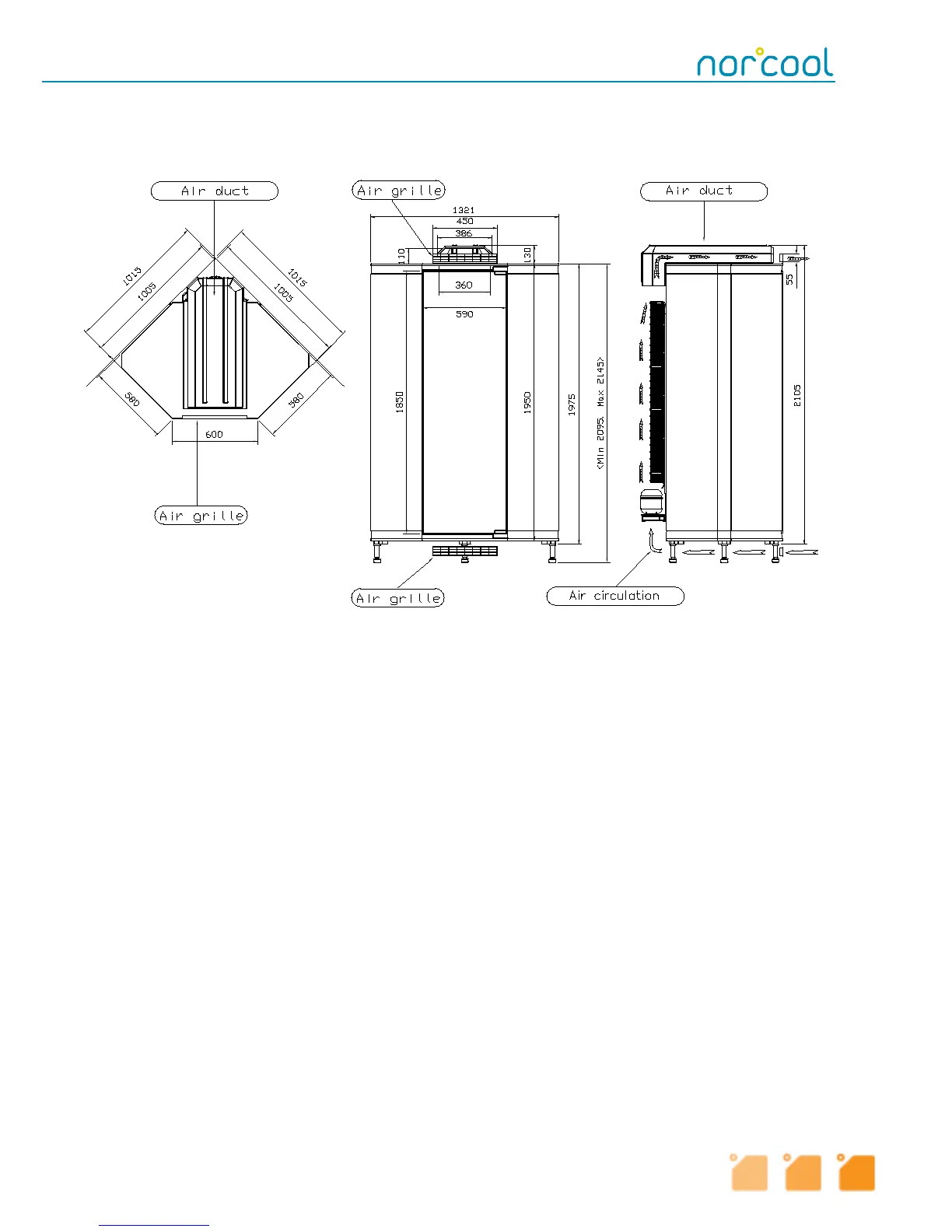

Fig 1
