www.nord.com B1091-GB-3212 -19-
Item No. Description Item No. Description
900 Rotor with shaft
902 End shield at drive end
902.1 Cheese-head screw
902.2 Hexagon nut
904 Shaft seal
905 Bearing at drive end
906 Ball bearing shim
907 Terminal box frame
907.1 Chassis connection terminal wire clamp
907.2 Oval-head screw
908 Terminal box lid
908.1 Cheese-head screw
909 Terminal box frame gasket
910 Terminal box lid gasket
911 Terminal board
911.1 Cheese-head screw
911.5 Spring lock washer
912 Mini-terminal
912.1 Oval-head screw
913 Spacer
913.1 Cheese-head screw
913.2 Spring lock washer
916 Stator with winding
916.1 Equipotential bonding terminal
916.2 Spring pin
918 Key
924 Screw-on foot (BG 100-132)
924.1 Hexagon bolt
924.2 Spring lock washer
924.3 Hexagon nut
929 Bearing at ventilation end
932 End shield at ventilation end
932.1 Cheese-head screw
932.2 Hexagon nut
933 Shaft seal
939 Fan
940 Fan hood
940.1 Oval-head screw
940.2 Countersink screw B3
941 Key
942 947 Circlip
948 Circlip
952 Clamping bush
953 Cable gland
955 Blind plug
956 Blind plug
980 Protective roof
988 Ring seal
989 Name plate
989.1 Oval-head screw

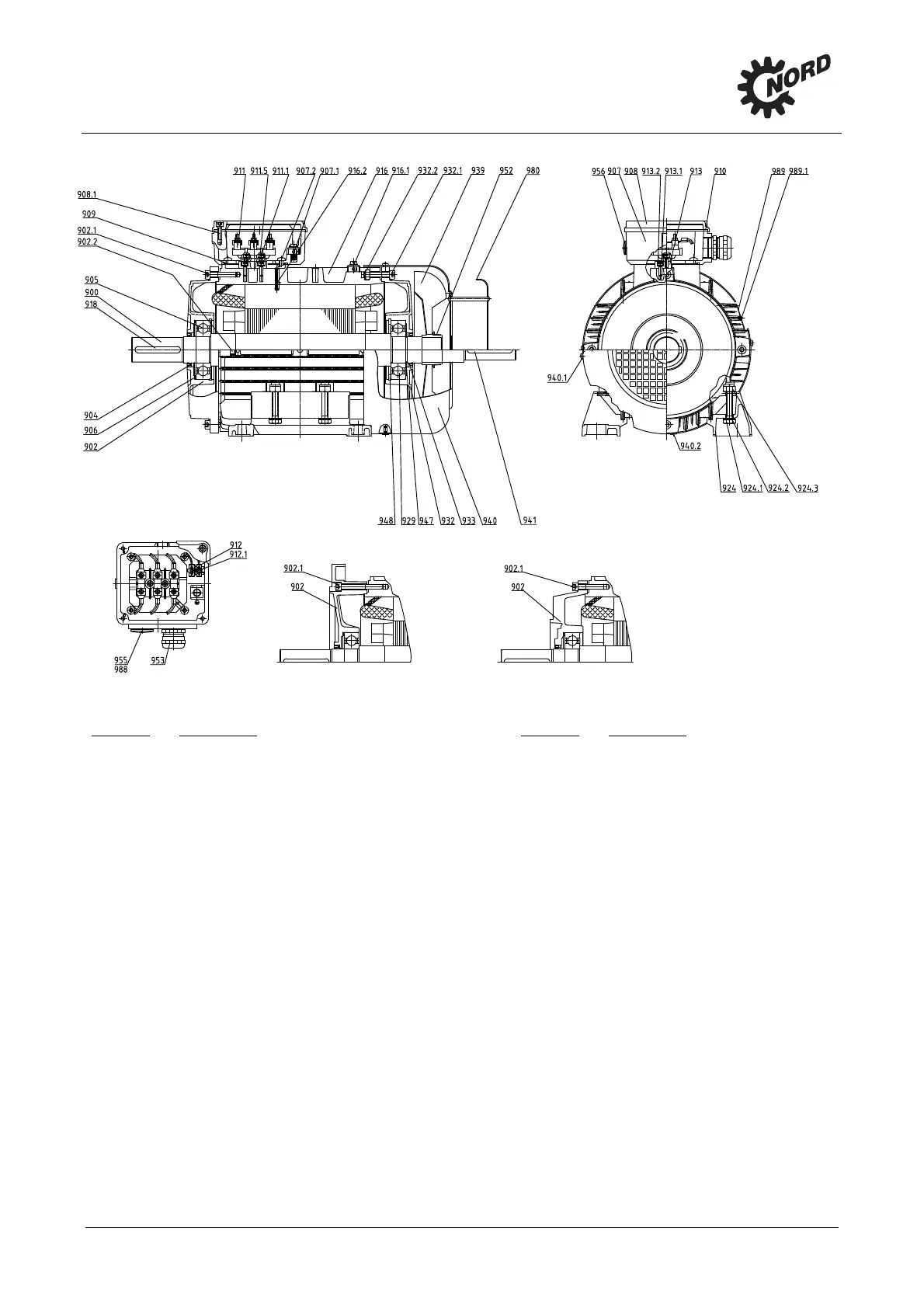

9. Spare parts drawing and
spare parts list
