2 Hardware description
The safety functions are available as options.
1. on board (SK 510P/SK 540P)
2. as plug-in interface SK CU5-STO (SK 530P and higher)

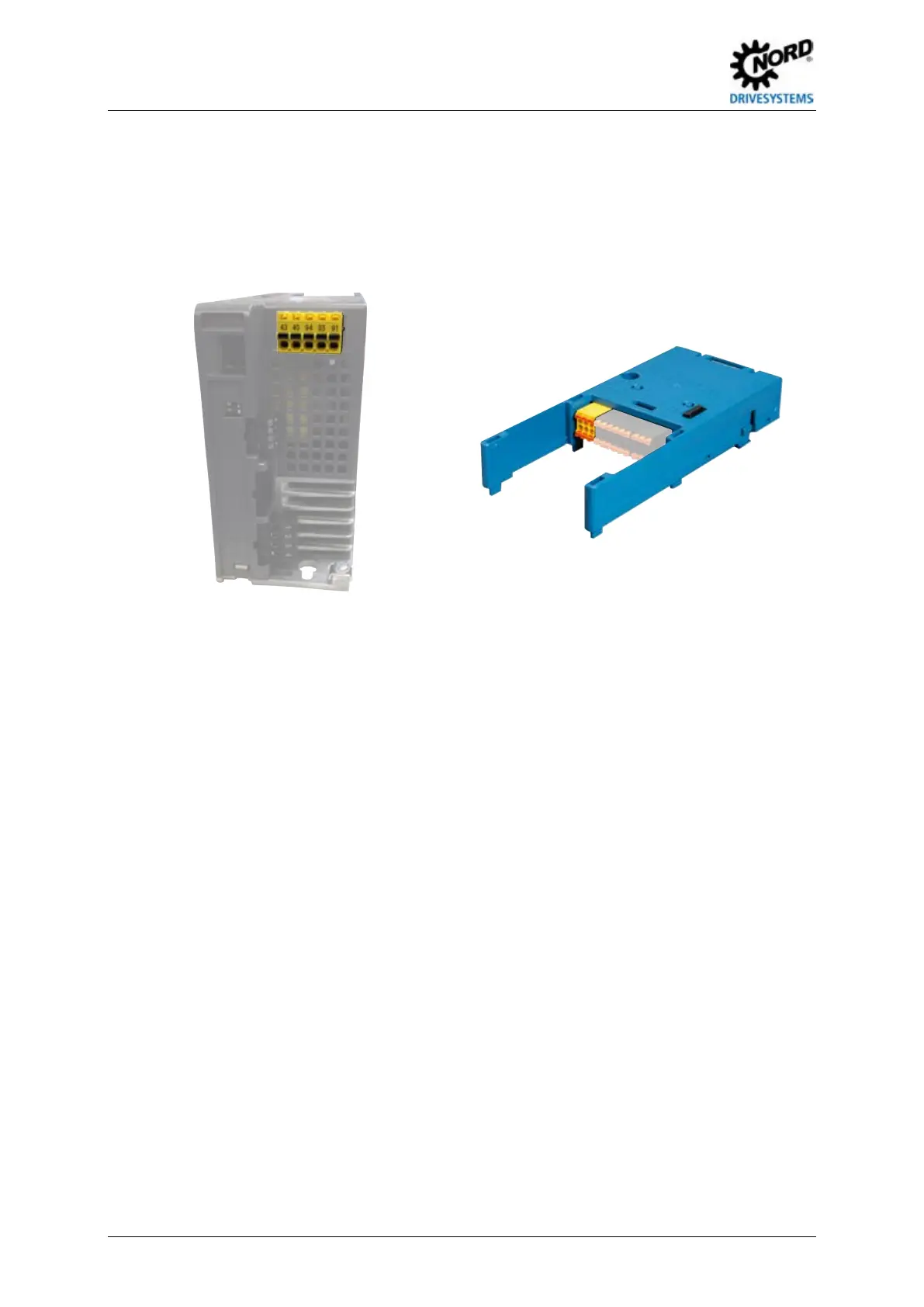

SK 510P SK CU5-STO
Figure 1: Hardware
