4 Commissioning
BU 0540 EN-1516 35
4 Commissioning
Once the power supply has been connected to the frequency inverter, it will be operational within a
few moments. In this state, the frequency inverter can be set to the requirements of the application,
i.e. it can be parameterised (please see chapter 5 "Parameters").
The connected motor may only be started after the parameters specific to the application in question
have been set by qualified personnel.
DANGER!
Danger to life
The frequency inverter is not equipped with a line main switch and is therefore always live when connected to the
power supply. Live voltages may therefore be connected to a connected motor at standstill.
Pos: 11 4 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe trieb nahme/ SK 50 0E/4.1 W erks einstel lung en @ 0\mod_1327569750609_388.docx @ 7196 @ 2 @ 1
4.1 Factory settings
All frequency inverters supplied by Getriebebau NORD are pre-programmed with the default setting
for standard applications with 4 pole IE1 three-phase motors (same voltage and power). For use with
motors with other powers or number of poles, the data from the rating plate of the motor must be input
into the parameters P201...P207 under the menu item >Motor data<.
NOTE: All data for IE1 motors can be pre-set with parameter P200. After use of this
function has been successful, this parameter is reset to 0 = no change! The data is
loaded automatically into parameters P201...P209 – and can be compared again
with the data on the motor rating plate.
P200 Motor list:
0 = no change 8 = 0.37kW 400V
1 = no motor 9 = 0.50PS 460V
2 = 0.25kW 230V 10 = 0.55kW 230V
3 = 0.33PS 230V
11 = 0.75PS 230V
4 = 0.25kW 400V 12 = 0.55kW 400V
5 = 0.33PS 460V 13 = 0.75PS 460V
6 = 0.37kW 230V 14 = 0.75kW 230V
7 = 0.50PS 230V ....

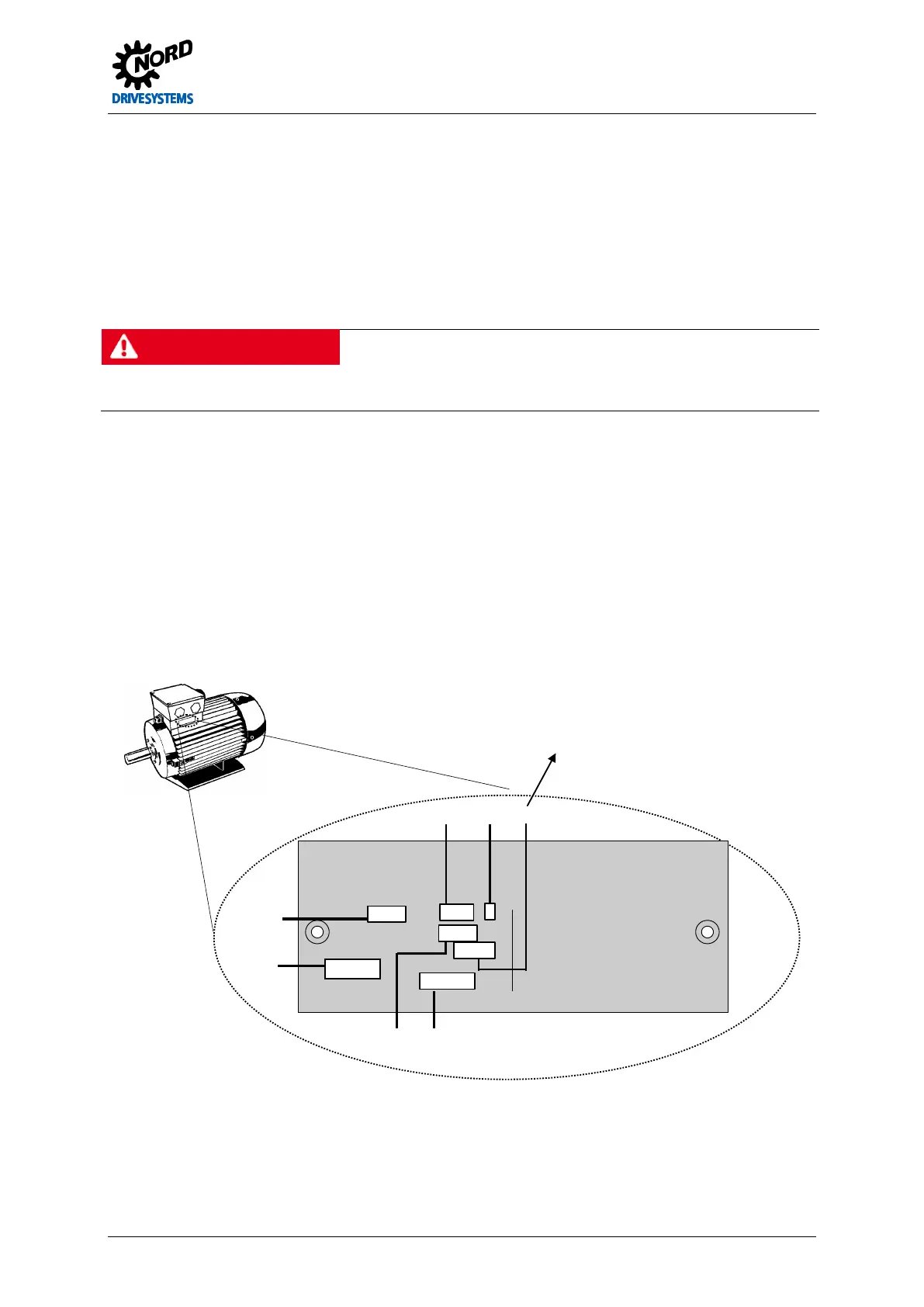

Fig. 3 Motor type plate
